Advantage Controls MINI-TROL IF Manual page 3

JUMPER POSITION B
J4 AUTO RESET DISABLED
J5 RETRIES DISABLED
J6 2-SEC RESTART
J7 N.O. SWITCHES
J8 TANK FULL FLUSH
WARNING: All switch inputs must be dry contact only. If voltage is applied to these inputs, damage to the
!
controller will result. For power with neutral and hot leads, L1 is hot and L2 is neutral.
K3 FLUSH
RELAY
K4 RO PUMP
RELAY
K3 INLET
RELAY
CAUTION: REPLACE FUSES
WITH SAME TYPE OR EQUIVALENT.
POSITION A
AUTO RESET ENABLED
RETRIES ENABLED
15-MIN. RESTART
N.C. SWITCHES
24-HOUR FLUSH
B
A
J7 J6 J5 J4
3

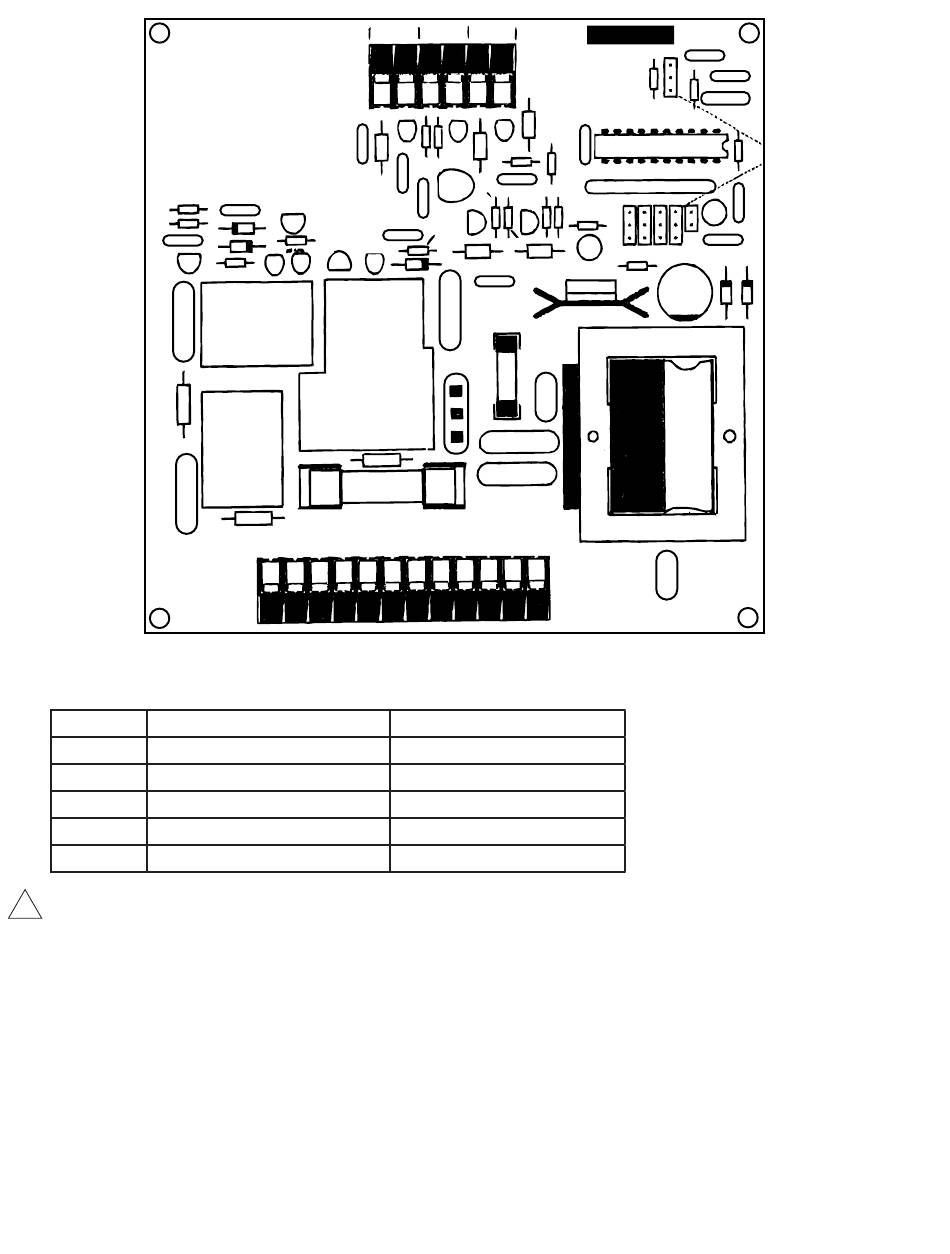

Figure 1
A
B
SELECTABLE
JUMPERS
