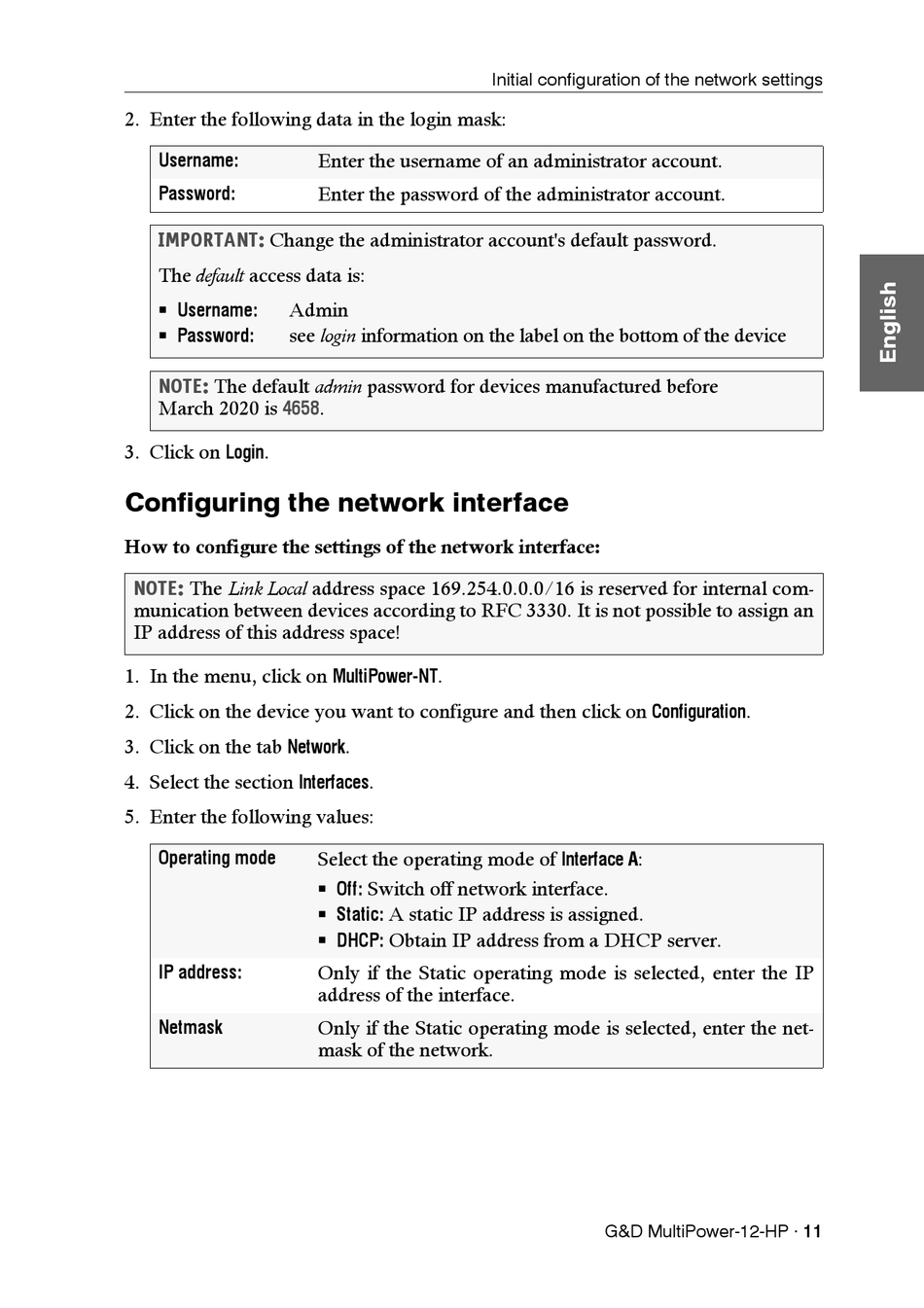

2. Enter the following data in the login mask:
Username:
Password:
IMPORTANT: Change the administrator account's default password.
The default access data is:
 Username: Admin
 Password: see login information on the label on the bottom of the device
NOTE: The default admin password for devices manufactured before
March 2020 is 4658
3. Click on Login .

Configuring the network interface

How to configure the settings of the network interface:
NOTE: The Link Local address space 169.254.0.0.0/16 is reserved for internal com-
munication between devices according to RFC 3330. It is not possible to assign an
IP address of this address space!
1. In the menu, click on
2. Click on the device you want to configure and then click on
3. Click on the tab Network
4. Select the section
Interfaces
5. Enter the following values:
Operating mode
IP address:
Netmask
Initial configuration of the network settings
Enter the username of an administrator account.
Enter the password of the administrator account.
.
MultiPower-NT .
.
.
Select the operating mode of
Switch off network interface.
 Off:
 Static: A static IP address is assigned.
 DHCP: Obtain IP address from a DHCP server.
Only if the Static operating mode is selected, enter the IP
address of the interface.
Only if the Static operating mode is selected, enter the net-
mask of the network.
Configuration
:
Interface A
G&D MultiPower-12-HP · 11
.
