Connecting Your Phone to the ScanPlan

Quick Steps

1. Align and attach magnetic strips to back of phone.

2. Connect USB adapter to your phone's USB port.

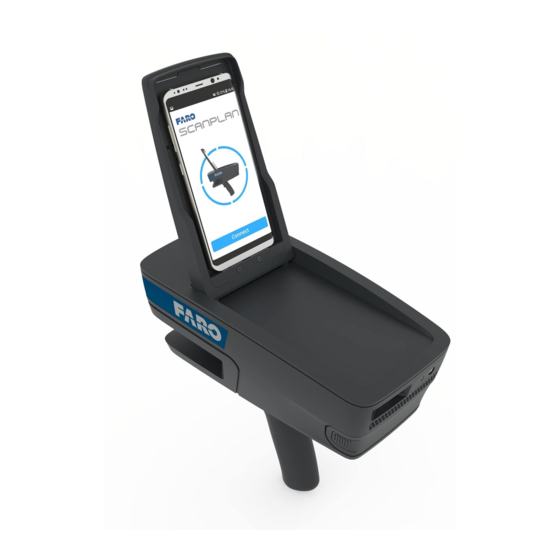

3. Slide phone onto ScanPlan

Overview

Compatible smart phones

adapter. Follow these instructions to make sure your phone fits correctly.

Preparing the Phone

1. Open the phone tray on the top of the ScanPlan, pressing gently to click the tray into place. Note: Magnets are

used to connect your phone to the ScanPlan and are located behind the tray screen near the middle divider.

tray and onto ScanPlan USB port.

attach to the FARO

ScanPlan using magnets and a magnetic sticker, as well as a USB port

https://knowledge.faro.com/Hardware/2D_Scanners/ScanPlan/Connecting_Your_Phone_to_the_ScanPlan

Updated: Fri, 20 Aug 2021 05:36:17 GMT

Page 1 Preparing the Phone 1. Open the phone tray on the top of the ScanPlan, pressing gently to click the tray into place. Note: Magnets are used to connect your phone to the ScanPlan and are located behind the tray screen near the middle divider.
Page 2 2. Attach the metallic sticker to the back of your phone at the place were the magnets will contact it. Note: If you have a very thick protective case on your phone, the charging port may not align with the ScanPlan port.
Page 3 WLAN Password carefully as your phone can now also operate as a mobile access point and share its connection Connecting Your Phone 1. Switch on the ScanPlan by pressing the power button. The LED on the button will blink while booting, and will stop blinking when the ScanPlan is ready to scan.
Page 4 The phone is properly aligned when the phone’s battery symbol shows that the phone is charging. 5. Open the ScanPlan app and connect to the ScanPlan by tapping the icon. If the app and the ScanPlan are connected, the list of available projects will appear.
