Focus3D Panorama Tripod Quick Release Mount Installation
Quick Steps
Here is all you have to do. Click a link to get details.
•
Order the correct parts
•
View the video.
•
Follow the setup steps.
Video

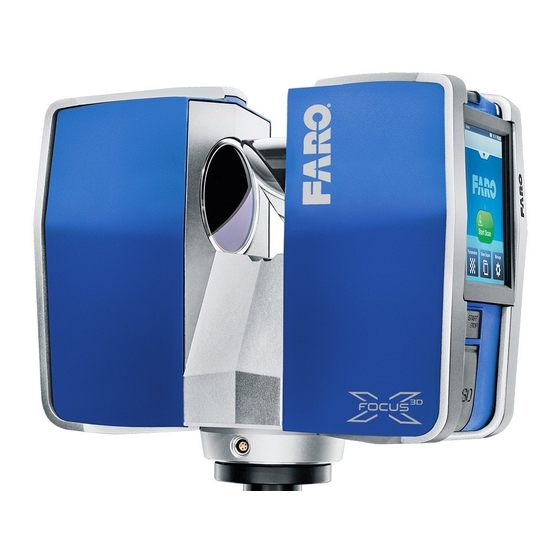

In this 3-minute YouTube video tutorial, learn how to unpack and set up the FARO Focus3D Laser Scanner on the
panorama tripod.
Media, iframe, embed and object tags are not supported inside of a PDF.
Overview
The FARO Focus3D Panorama Tripod Quick Release allows you to quickly mount and dismount the Focus3D Laser
Scanner on your tripod. Using the steps in this article you should be able install the Panorama Tripod Quick Release on
your tripod and start scanning.
https://knowledge.faro.com/Hardware/3D_Scanners/Focus/Focus3D_Panorama_Tripod_Quick_Release_Mount_Installation
from
FARO
Sales.
Updated: Sat, 11 Dec 2021 08:36:17 GMT
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Faro Focus3D
Summary of Contents for Faro Focus3D
- Page 1 Follow the setup steps. Video In this 3-minute YouTube video tutorial, learn how to unpack and set up the FARO Focus3D Laser Scanner on the panorama tripod. Media, iframe, embed and object tags are not supported inside of a PDF.
- Page 2 Prepare Time to Complete 10 minutes • Focus3D Panorama Tripod Quick Release package, FARO Part #: ACCSS6040, Manufacturer Part #: 100200 Items Needed • Laser Scanner Carbon Fiber Tripod, FARO Part #: ACCSS6005 • Focus3D X30/1310/330 Supported Hardware • Focus3D S20/120...
- Page 3 5. To install the lower tripod mounting ring, first remove the 5/8-inch screw from the tripod using reasonable torque. 6. This allows you to remove the 5/8” thread that you will set aside. https://knowledge.faro.com/Hardware/3D_Scanners/Focus/Focus3D_Panorama_Tripod_Quick_Release_Mount_Installation Updated: Sat, 11 Dec 2021 08:36:17 GMT...
- Page 4 8-inch screw and tighten until snug with the included hex wrench. Make sure that the numbers on the tripod mounting ring are right-side up. 8. Once the tripod mounting ring is secure, place the scanner on the tripod. https://knowledge.faro.com/Hardware/3D_Scanners/Focus/Focus3D_Panorama_Tripod_Quick_Release_Mount_Installation Updated: Sat, 11 Dec 2021 08:36:17 GMT...
- Page 5 Next Steps Once you have confirmed the Tribrach adapter is attached and secure on the tripod, you are ready to use the quick release with your tripod and Focus3D. Troubleshooting If you cannot remove the screw in steps 5 and 6, do not apply excessive force as it may damage the tripod. Instead,...
