E A S Y - F I T S O F T C L O S E
Base Unit

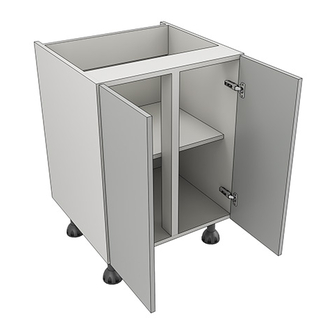

1200 Base (Door, Open Top, 6 Legs) - Fitting Guide

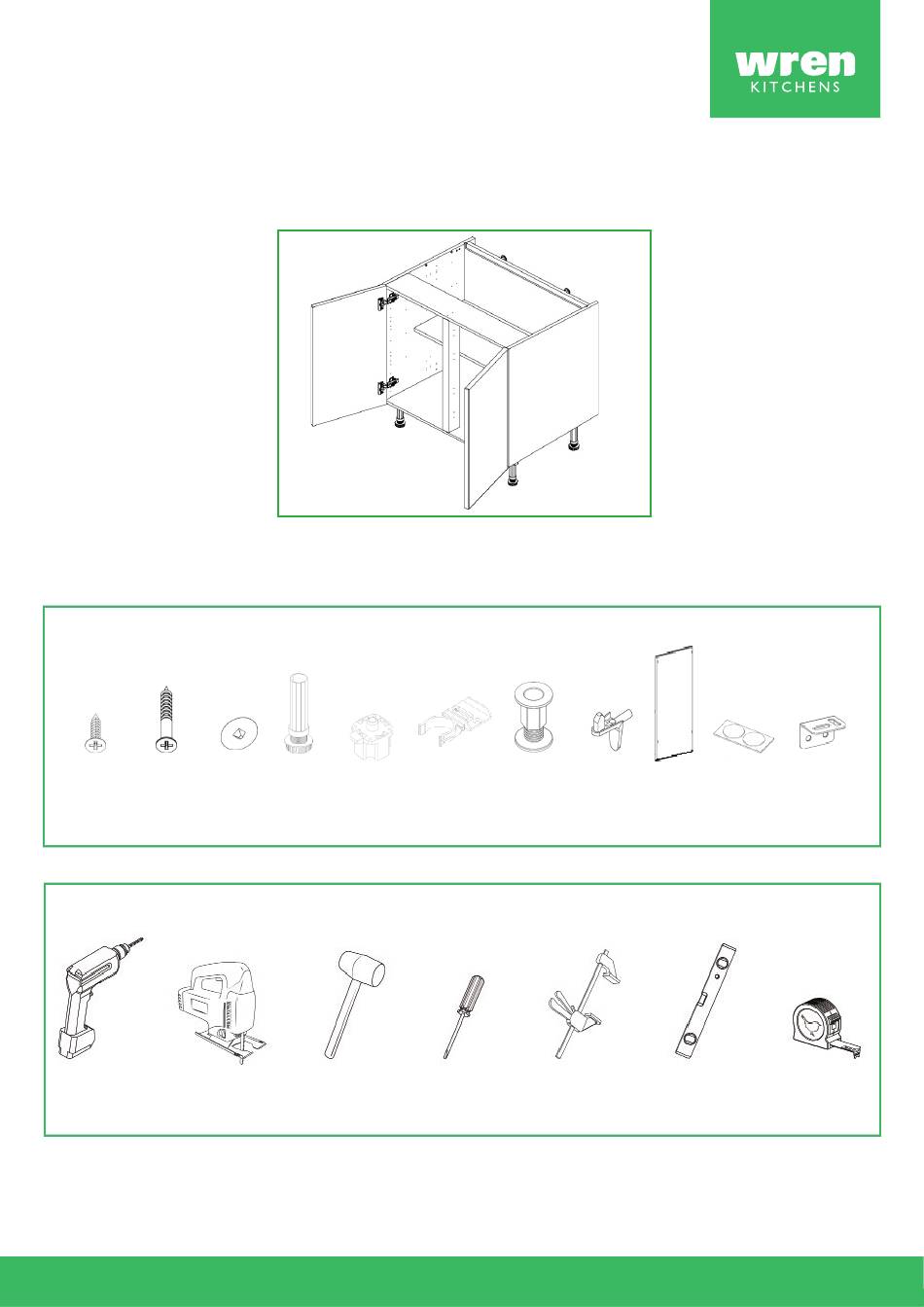

Unit Parts
32x 15mm
6X 30mm
18x Cover
screws
screws
Tools Required
Drill
Jigsaw
6x Legs
6x Leg
Caps
Brackets
Mallet
2x Plinth
2x Space
5x Shelf
Clips
Plug
Screwdriver
Clamp
1x Shelf
5x Door Buffers
Pegs
Tape Measure
Spirit Level
2x L-Brackets
Page 1
Advertisement
Related Manuals for Wren Kitchens Base Unit 1200
Summary of Contents for Wren Kitchens Base Unit 1200
- Page 1 E A S Y - F I T S O F T C L O S E Base Unit 1200 Base (Door, Open Top, 6 Legs) - Fitting Guide Unit Parts 32x 15mm 6X 30mm 18x Cover 6x Legs 6x Leg 2x Plinth 2x L-Brackets 2x Space...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any waste cardboard or plastic should be flattened down and placed in the bin. Removing the frontals Before installing the unit, remove the frontals by pulling the release catch.
- Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. You can adjust the legs to the correct height by turning the foot of the leg clockwise or anti-clockwise.
- Page 4 No screws or wall plugs are provided for attaching the unit to the wall. This is due to variations in wall construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Drilling the pilot holes Drill a pilot hole through the back panel making sure to lightly mark the wall to indicate where the wall fixing should be...
- Page 5 Attaching the frontals The frontals should be re-attached to the unit by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge pushed to the hinge plate until it clicks.
- Page 6 Altering the soft-close Fit the hinge cover caps to the hinges by pressing down to secure. Adjust the soft-close to suit (if required). The soft-close is adjusted by turning the screw at the top of the hinge clockwise or anti-clockwise. Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have...
