Summary of Contents for BOERPLAY Tumble bars Duo H1.10-0.90

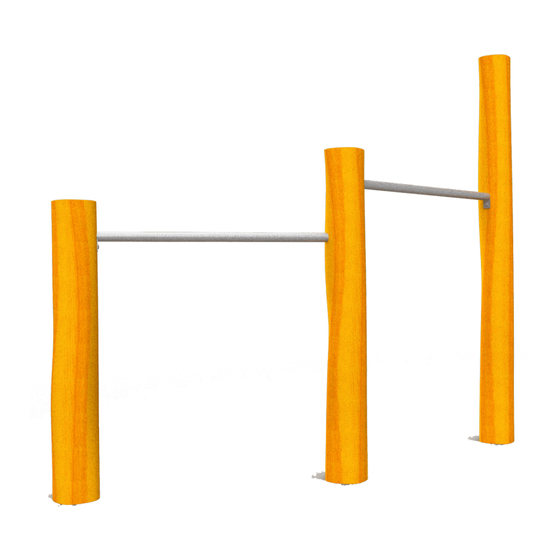

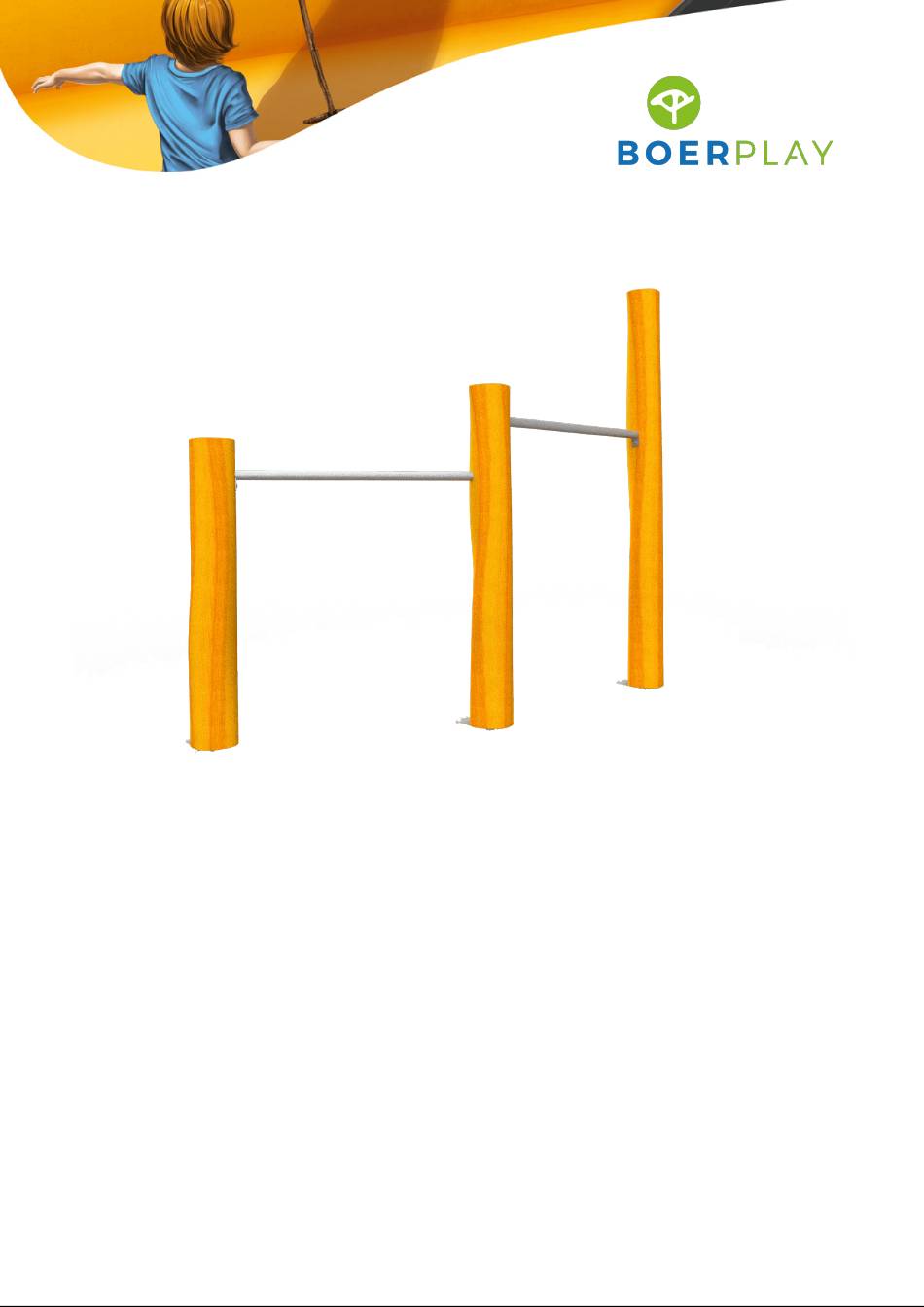

- Page 1 Tumble bars Duo H1.10-0.90 PSTE000.083...
- Page 2 1,95 m Staander afvlakken zodat kopplaat duikelstang geheel tegen staander komt. Uitstekende delen < 8 mm. (4x) 1,70 m 1,20 m 1,10 m 1,00 m 0,90 m 0,00 m Benaming TOE PST 000 083 Duikel Title Tekening Opmerking Drawing Comment Datum Afmetingen Dimensions 16-3-2018...
- Page 3 1,52 m 1,52 m 3,67 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 083 Duikel Title Tekening Opmerking Drawing Comment Datum Obstakelvrije zone Obstacle free zone 16-3-2018 Date...
- Page 4 0,85 m 0,95 m 0,57 m 1,22 m Grondmarkering Ground level marker 0,62 m Benaming TOE PST 000 083 Duikel Title Tekening Opmerking Drawing Comment Datum Bodemplan Groundplan 16-3-2018 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Zwaarste onderdeel is MOD.PST.007.155 (33 kg) The Heaviest part is MOD.PST.007.155 (33 kg) Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.083 Product Name Tumble bars Duo H1.10-0.90 Maximum fall height 1,1 m Construction year 2023 Certificate 060621 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 1,62 m 1,51 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 KRAALRING RVS FACET Paal 14-16 Lengte =1600 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play Benaming...
- Page 12 1,82 m 1,72 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 Facet ring M5 - RVS A2-70 Paal 14-16 Lengte =1800 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play...
- Page 13 Schaal 1:20 Type Progr. Volgnr Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Paal 14-16 Lengte =2300 Standaard plank 120x20 Lengte = 500 Benaming MOD PST 007 155 Duikel Title Tekening Opmerking Paal H=2300 Drawing Comment Datum Samenstelling module Assembly module 16-3-2018...
