Summary of Contents for BOERPLAY Trio H1.30-1.10-0.90

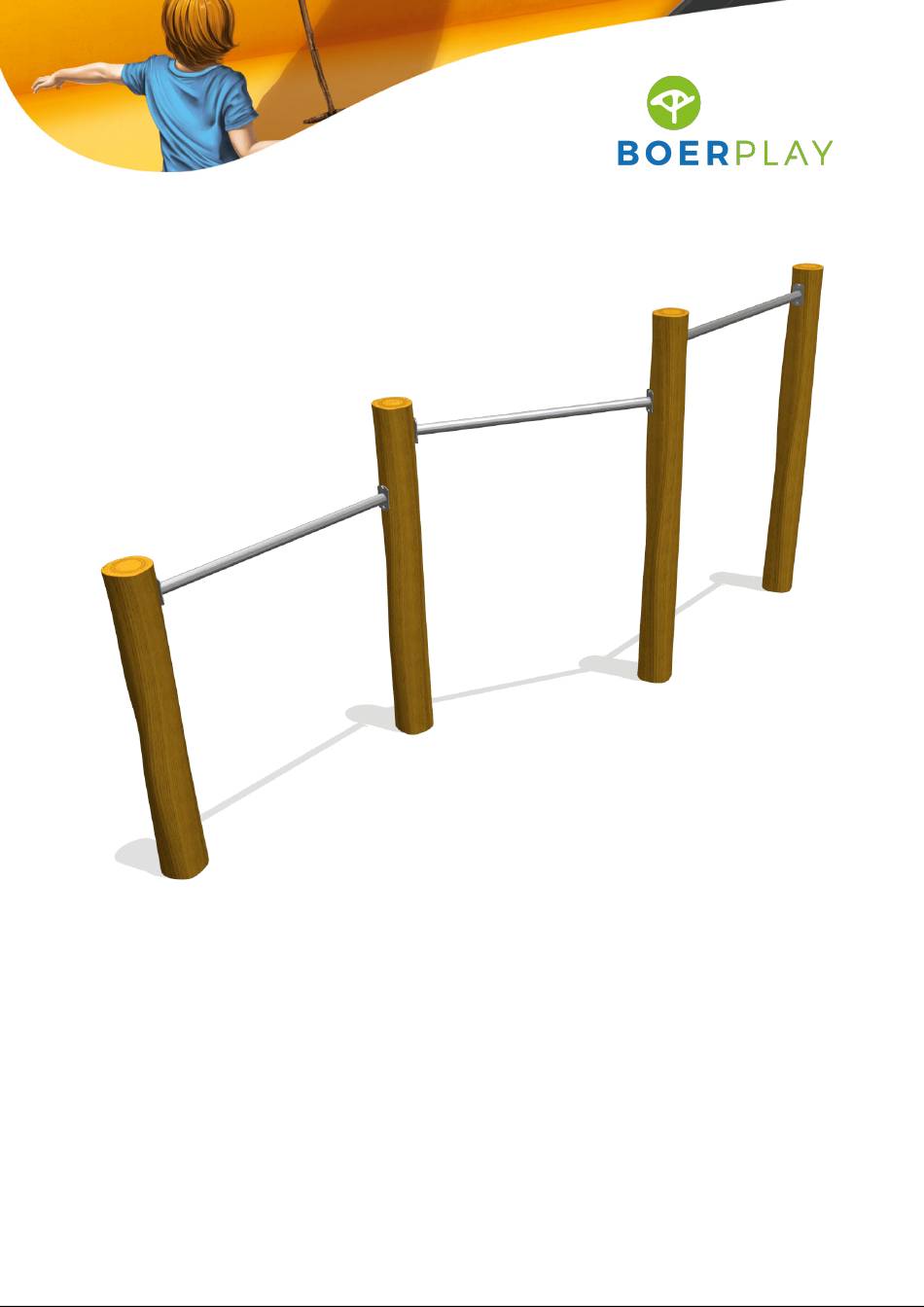

- Page 1 Tumble bars Trio H1.30-1.10-0.90 PSTE000.087...
- Page 2 Staanders afvlakken zodat kopplaat duikelstang geheel tegen staander komt. Uitstekende delen < 8 mm. (6x) 2,92 m Benaming TOE PST 000 087 Duikelrek Title Tekening Opmerking Trio L-M-H Drawing Comment Datum Afmetingen Dimensions 19-9-2019 Date...
- Page 3 0,48 m 3,03 m 3,51 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 087 Duikelrek Title Tekening Opmerking Trio L-M-H Drawing Comment Datum Obstakelvrije zone Obstacle free zone 19-9-2019 Date...
- Page 4 5,88 m 0,58 m 0,83 m 0,96 m 0,57 m 0,92 m 0,15 m 0,01 m 0,00 m Grondmarkering Ground level marker 0,62 m Benaming TOE PST 000 087 Duikelrek Title Tekening Opmerking Trio L-M-H Drawing Comment Datum Bodemplan Groundplan 19-9-2019 Date...
- Page 5 Typeplaatje Identification plate TYPE PROJ. BEH. BENAMING OPMERKING Duikel Rek H=900 Duikel Rek H=1100 Duikel Rek H=1300 Duikel Paal H=1300 Benaming TOE PST 000 087 Duikelrek Title Tekening Opmerking Trio L-M-H Drawing Comment Datum Modules Modules 19-9-2019 Date...
- Page 6 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE000.087 Product Name Tumble bars Trio H1.30-1.10-0.90 Maximum fall height 1,3 m Construction year 2023 Certificate 032370 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
- Page 9 Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
- Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 1,62 m 1,51 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 KRAALRING RVS FACET Paal 14-16 Lengte =1600 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play Benaming...
- Page 13 1,82 m 1,72 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 Facet ring M5 - RVS A2-70 Paal 14-16 Lengte =1800 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play...
- Page 14 2,02 m 1,92 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 KRAALRING RVS FACET Paal 14-16 Lengte =2000 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play Benaming...
- Page 15 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Paal 10-12 Lengte =2000 Standaard plank 120x20 Lengte = 500 Benaming MOD PST 007 013 Duikel Title Tekening Opmerking Paal H=1300 Drawing Comment Datum Samenstelling module Assembly module 27-6-2019 Date...
