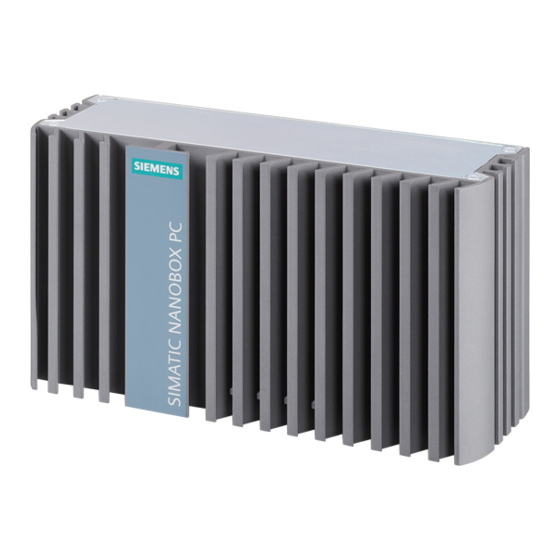

SIMATIC IPC227G
SIMATIC
Industrial PC
SIMATIC IPC227G
Operating Instructions
06/2021
A5E50059933-AA
Preface
Overview
Safety instructions
Installing and connecting
the device
Commissioning the device
and device functions
Expanding and assigning
parameters to the device
Maintaining and repairing
the device
Technical specifications
Technical support
Markings and symbols
List of abbreviations
1
2
3
4
5
6
7
A
B
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMATIC IPC227G and is the answer not in the manual?

Questions and answers

Related Manuals for Siemens SIMATIC IPC227G

Summary of Contents for Siemens SIMATIC IPC227G

  • Page 1 SIMATIC IPC227G Preface Overview SIMATIC Safety instructions Installing and connecting the device Industrial PC SIMATIC IPC227G Commissioning the device and device functions Expanding and assigning parameters to the device Operating Instructions Maintaining and repairing the device Technical specifications Technical support...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Preface

    USB stick in PDF format (in multiple languages). Conventions The terms "PC" and "device" are sometimes used to refer to the SIMATIC IPC227G in this documentation. Instead of the specific names of the operating system, we are using the abbreviation "Windows 10"...
  • Page 4 Preface History The following editions of these operating instructions have been published: Edition Comment 06/2021 First edition SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 5: Table Of Contents

    Securing cables for use in hazardous areas ................. 33 3.3.5 Connect device to networks ....................34 Commissioning the device and device functions ................35 General information on commissioning ................35 Switching the device on/off ....................35 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 6 DC in connector ......................... 73 7.5.2.4 Ethernet port ........................74 7.5.2.5 DisplayPort ........................75 7.5.2.6 Serial interface ........................76 7.5.3 Internal interfaces ......................77 7.5.3.1 Overview of internal interfaces ..................77 7.5.3.2 M.2 interface ........................77 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 7 Markings and symbols ......................... 89 Overview ........................... 89 Safety ..........................89 Operator controls....................... 89 Certificates, approvals and markings .................. 90 Interfaces .......................... 91 List of abbreviations ..........................92 Glossary ............................... 95 Index ..............................103 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 8: Overview

    Overview Product description 1.1.1 Overview SIMATIC IPC227G provides high-level industrial functionality: • Compact design • Scalability • High degree of ruggedness • Various interfaces • Maintenance-free operation possibility SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 9: Configuration Plan

    , support resolution up to 4096 × 2160 pixels at 60 Hz Keyboard, mouse Connection through USB port Operating systems Operation Systems • Without OS • Windows 10 Enterprise 2019 LTSC (Long Term Servicing Channel) 64-bit (MUI) SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 10: Structure Of The Devices

    1.2.1 Views of the device Front view and side view The front view on the left is the standard mounting position. The side view is on the right. ① Cooling fins ② LED display SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 11: Interfaces Of The Device

    ⑦ COM (X30/X31) (Optional) 2 × Serial interface, 9-pin RS232/RS422/RS485 D-sub connector ⑧ LAN (X1P1/X2P1/X3P1) 3 × RJ45 Ethernet connections for 10/100/1000 Mbps ⑨ USB 3.1 port (X62/X63) 2 × USB 3.1 port, high current SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 12: Status Displays

    You can find information on the individual LEDs in the section Control register user LED L1/L2/L3 (Page 81). Example programs for controlling the LEDs on Windows operating systems are available on the Customer Support page of Siemens Industry Automation and Drive Technologies. (https://support.industry.siemens.com/cs/us/en/)

  • Page 13: Accessories

    Overview 1.3 Accessories Accessories Accessories from Siemens are available for your device. These are not included in the scope of delivery. Additional accessories can be found on the Internet: • Industry Mall (https://mall.industry.siemens.com) • Expansion components and accessories (https://w3.siemens.com/mcms/pc-based- automation/en/industrial-pc/expansion_components_accessories)

  • Page 14: Safety Instructions

    The installation of expansions can damage the device, machine or plant. Device and system expansions can violate safety rules and regulations regarding radio interference suppression. If you install or exchange system expansions and damage your device, the warranty becomes void. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 15 • Replace the lithium battery only with an identical battery or types recommended by SIEMENS (article number: A5E48370874). • For any requirements on product maintenance, contact Siemens Technical support (Page 86). • Do not throw lithium batteries into fire, do not solder on the cell body, do not recharge, do not open, do not short-circuit, do not reverse polarity, do not heat above 100°C and...

  • Page 16: Security Information

    In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks.

  • Page 17: Data Protection

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.

  • Page 18: Installing And Connecting The Device

    A damaged packaging indicates that ambient conditions have already had an impact on the device. The device might be damaged. Do not dispose of the original packaging. Pack the device during transportation and storage. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 19 7. Keep the enclosed documentation in a safe place. You need the documentation when you commission the device for the first time or meet other problems in the later work. 8. Record the identification data of the device. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 20: Identification Data Of The Device

    Ethernet address 2 (MAC) Ethernet address 3 (MAC) Product label The following image shows the product label on the SIMATIC IPC227G as an example. COA label Microsoft Windows "Product Key" on the "Certificate Of Authenticity" (COA): The COA label is only attached to the rear of the device containing a preinstalled and activated Windows operating system.

  • Page 21: Permitted Mounting Positions

    Ensure that the following clearances measurements to another component or to a wall of the enclosure are complied with: • Underneath of the device at least 100 mm • Side of the device at least 50 mm SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 22: Installing The Cable Strain Relief

    Secure the strain relief with an M3 × 6 setscrew on the left and right sides respectively. Secure the connection cables with cable ties to the cable strain relief. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 23: Installing Ethernet Connector Strain Relief

    M3 × 8 panhead screw from the accessory. Fasten the Ethernet connector strain relief with two M3 × 6 setscrews on the right side. Secure the Ethernet connector with cable ties for each port. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 24: Mounting The Device

    • This device is designed for use in a normal industrial environment. Without additional protective measures (such as the provision of clean air), SIMATIC Box PCs may not be operated in harsh environments that are subject to caustic vapors or gases. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 25 The position of the interface side is determined by the mounting of the mounting bracket. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 26 This can result in personal injuries or material damage. Ensure that the wall is capable of bearing four times the total weight of the device (including the brackets and expansion modules). The total weight of the device is approximately 5 kg. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 27: Mounting On A Standard Rail

    Mounting on a standard rail Mounting on a standard rail is suitable for horizontal and vertical mounting of the device. Requirement • A SIEMENS 35 mm standard rail TH35-15 conforming to EN 60715:2001 The standard rail is mounted. • A standard rail bracket The standard rail bracket and two screws are included in the order variant "Standard rail...

  • Page 28: Wall Mounting

    Requirement • Two mounting brackets The mounting brackets and four screws are included in the order variant "Upright mounting". • A T10 screwdriver • Four anchors and four screws SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 29: Connecting The Device

    • Always pull out the power plug when you are not using the device or if the device is defective. The power plug must be freely accessible. • Use a central power isolating switch for cabinet installation. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 30 Utilisez des câbles en cuivre (Cu) pour tous les câbles d'alimentation qui sont raccordés à l'appareil par des bornes, par exemple les câbles d'alimentation 24 V CC sur le connecteur d'alimentation 24 V CC. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 31: Connecting The Protective Conductor

    • If a device is defective, remove it from operation without delay and label it accordingly. Requirement • T20 screwdriver • Cable lug for M4 • protective conductor with minimum cross-section of 2.5 mm = AWG14 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 32: Connecting The Power Supply

    • A two-core cable with a cable cross-section of 0.75 mm to 2.5 mm for the 24 VDC connection. • Tightening torque: 0.5 to 0.6 Nm • A slotted screwdriver with approximate 3 mm blade. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 33: Securing Cables

    Make sure that the cables are not crushed by the cable ties. Secure the cable strain relief plate to the device using the supplied screws. The following figure shows an example of the fixing elements of a built-in device. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 34: Connect Device To Networks

    Control level. Information on this can be found on the SIMATIC NET Manual Collection CD. The software package and the documentation are not included in the product package. Additional information You can find additional information in Technical support. (Page 86) SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 35: Commissioning The Device And Device Functions

    The commissioning procedure in this chapter is only applicable to the IPCs with operating system. For the configurations without operating system pre-installed, contact the operating system provider to install the operating system first. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 36 If the device is not going to be used for a long period of time after shutdown, set the On/Off switch to "OFF" position. Additional information Information on your operating system can be found on the Internet: • Microsoft® Windows® 10 (https://support.industry.siemens.com/cs/ww/en/view/109749498) See also Installing the drivers and software (Page 53) SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 37: Advanced Device Functions

    • Temperature nearby the CPU A temperature error is triggered when one of the three temperature values exceeds the set temperature threshold and the following reaction is initiated: Reaction Option The DiagBase or DiagMonitor software is enabled None SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 38: Watchdog (Wd)

    The "Reset on" option immediately triggers a hardware reset that can cause data loss on Windows and damage to the installation. Watchdog monitoring times The hardware supports the following control unit times: • 1 to 256 seconds • 1 to 256 minutes SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 39: Battery Monitoring

    A memory window with a maximum size of 512 KB can be displayed by means of PCI address register. The base address is initialized via the BIOS (see section "Input/output address areas (Page 80)"). A corresponding function is implemented there for using the NVRAM under software controller. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 40: Expanding And Assigning Parameters To The Device

    Remove the marked four screws on the rear panel of the device. Lift up the device's rear panel. Procedure - closing the device To close the device, carry out the steps for opening the device in the reverse order. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 41: Installing The M.2 Module

    Installing the M.2 Module Introduction to the M.2 Module Siemens uses the M.2 Module to extend the Siemens IPC. It can be produced by Siemens or other third-party suppliers. Our device provides one or several M.2 Key B interfaces and mounting positions.
  • Page 42 Support Special (DIO) : You can through M.2 Key E to Key B adapter accessory (Page 13) to support Key E and Key A+E module. Requirement • The device is opened. • A T8 screwdriver SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 43 If the M.2 Module has a cable with an additional interface-card connect to the housing opening, you need to do the following procedures: Unscrew the marked screws for fixing the COM interface. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 44: Installing And Removing M.2 Nvme/ Sata Ssd

    The device has a slot for M.2 NVMe or SATA SSD on the side of the interface panel. Requirement • The device is disconnected from the power supply. • A M.2 NVMe/SATA SSD that is approved for industrial applications. • A T10 screwdriver SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 45 Plug in the slot back into the device and tighten it with designated screws. Procedure - removing the M.2 NVMe/SATA SSD To remove the M.2 NVMe/SATA SSD, carry out the steps for installing the M.2 NVMe/SATA SSD in the reverse order. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 46: Maintaining And Repairing The Device

    Maintaining and repairing the device Maintenance intervals To maintain high system availability, Siemens recommends you replace some of the PC components that subject to wear in according with the replacement intervals indicated in the table below. Component Replacement interval: CMOS backup battery...
  • Page 47 • T20 screwdriver for protective conductor connection • T8 screwdriver for spring screw and M.2 Module on the motherboard • T10 screwdriver for all the remaining screws SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 48: Installing And Removing Hardware

    – Rated voltage: 3 VDC – Max abnormal charging current: 10 mA • For any requirements on product maintenance, contact Siemens Technical support (Page 86). • Do not throw lithium batteries into fire, do not solder on the cell body, do not recharge, do not open, do not short-circuit, do not reverse polarity, do not heat above 100°C and...
  • Page 49 – Courant de charge anormal max. : 10 mA • Pour toute demande concernant la maintenance du produit, contactez le support technique (Page 86) Siemens. • Ne jetez pas au feu des piles au lithium, n'effectuez pas de soudage sur la pile, ne la rechargez pas, ne l'ouvrez pas, ne la court-circuitez pas, n'intervertissez pas les pôles, ne...
  • Page 50 Slide the battery out 45 degrees from the upper left, pull the battery out gently and insert a new battery. Note: The positive electrode (+) of the battery should be positioned toward the outside of the device. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 51: Replacing The Memory Module

    ESD directives on handling electrostatic sensitive components. Note Siemens strongly recommends that you use only memory modules approved by Siemens. Siemens disclaims any liability for impairment of functions caused by the use of third-party memory modules. To replace the memory module CAUTION •...
  • Page 52 Unscrew the marked two screws on the power module and unscrew the marked other five screws with a T10 screw- driver on the motherboard. Press the retaining clips outward in the direction of the arrows to unlock the memory socket. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 53: Installing The Drivers And Software

    Step2: Intel® Converged Security Engine • Step3: Intel® HECI Controller Driver • Step4: Intel® Gigabit Ethernet Driver • Step5: Intel® UHD Graphics Driver • Step6: Intel® Serial I/O Driver • Step7: Intel® Graphics Command Center SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 54 4. Click Next to continue. 5. Select the radio button before "I have read and accept the license terms", and click Install to allow the computer to start the installation. 6. Click Finish. The installation is completed. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 55 1. Click Step7: Intel® Serial I/O Driver. 2. Click to install the Serial I/O driver. 3. Click Yes to confirm the user account control question. 4. Click Yes to continue. 5. Click Finish. The installation is completed. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 56: Recycling And Disposal

    Recycling and disposal Due to their low level of pollutants, the devices described in these operating instructions can be recycled. Contact a certified disposal service company for environmentally sound recycling and disposal of your old devices. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 57: Technical Specifications

    The following shows the approvals that may be available. For the device itself, it is certificated as shown on the product label and package label. ISO 9001 certificate The Siemens quality management system for all production processes (Development, Production, Sales and Service of Automation Products,-Systems and -Solutions) meets the requirements of ISO 9001:2015 This has been certified by DQS (the German society for the certification of quality management systems).
  • Page 58 Avis Canadian Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Responsible party for Supplier's Declaration of Conformity Siemens Industry, Inc. Digital Factory - Factory Automation 5300 Triangle Parkway, Suite 100 Norcross, GA 30092 Mail to: (amps.automation@siemens.com)
  • Page 59 Cat3G devices for use in Zone 2. Observe the following standards for use in hazardous areas: EN 60079-0 : 2012 + A11 : 2013, EN 60079-7 : 2010, IEC 60079-0 :2011 (Ed.6), + Corr.1. 2012 + Corr.2. 2013, IEC 60079-7 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 60: Directives And Declarations

    The device is designed for the following areas of application corresponding to the CE marking: Scope of application Requirements for Interference emission Immunity to interference Industrial area EN 61000-6-3 +A1, CAN/CSA-CISPR 22:10 EN 61000-6-2, NAMUR NE 21 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 61: Rohs Directive

    The material with which an electrostatically-charged person comes into contact is of particular significance. The figure shows the maximum electrostatic voltages with which a person is charged, depending on humidity and material. These values conform to the specifications of IEC 61000-4-2. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 62 This way, the discharge energy does not reach and damage the sensitive components. – Discharge your body electrostatically by touching grounded metallic parts before you take a measurement at a module. Always use grounded measuring instruments. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 63: Dimension Drawings

    Technical specifications 7.3 Dimension drawings Dimension drawings Mounting on a standard rail all dimensions in mm SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 64 Technical specifications 7.3 Dimension drawings Wall mounting all dimensions in mm SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 65 Technical specifications 7.3 Dimension drawings Upright mounting all dimensions in mm SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 66: Technical Data

    ± 2 kV (5 kHz /100 kHz) in accordance with IEC 61000-4-4; ed interference on the supply lines Burst • ± 1kV line to line, ±2 kV line to earth in accordance with IEC 61000-4-5; Surge SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 67 4G DDR4 SDRAM • 8G DDR4 SDRAM • 16G DDR4 SDRAM The max speed of memory is up to 3200 MT/s. The memory module supports IBECC function, and its default value in BIOS is "Disable". SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 68 You can find additional information in the section "Power demand of the components (Page 70)". Connection of a DP monitor Keyboard, mouse Connection via USB port In BIOS Setup, you can configure support for RS232/RS422/RS485 for COM1 and COM2 ports. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 69: Ambient Conditions

    : Equipment ambient temperature rating at 2000 m. : Atmospheric pressure and air density increases with decreasing altitude. Therefore utilization of the derating factor for 0 m to 2000 m for altitudes below sea level is considered conservative. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 70: Power Demand Of The Components

    Per slot 1.5 A X101) Note Device may overheat! The power supply cannot make unlimited power available. The auxiliary components consume energy and produce heat. The device may overheat. The auxiliary components will be damaged. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 71: Direct Current Supply (Dc)

    Device with Intel Atom® x6211E 14 W Device with Intel Atom® x6413E 18 W Device with Intel Atom® x6414RE 17 W USB expansion See section "Power demand of the components (Page 70)" M.2 Module SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 72: Hardware Descriptions

    3 × RJ45 Ethernet 10/100/1000 Mbps DisplayPort External • 2 × DP++ External 9-pin D-sub, either: • 2 × RS232/RS485/RS422 Only four of these USB ports may be operated simultaneously in high current mode, max. 10 W. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 73: Usb 3.1 Port

    Input / output Data channel USB2 Input / output Ground – Data channel USB3 Input Data channel USB3 Input Ground – Data channel USB3 Output Data channel USB3 Output 7.5.2.3 DC in connector Short description +24V SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 74: Ethernet Port

    Input/output Shield – LED 1 Orange light:1000 Mbps – Off: else LED 2 Orange light: Link – Orange Blink: Activity Off: No Link The Ethernet interface supports MDXI (auto crossover) for all transmission rates. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 75: Displayport

    DP data 3+ Output Ground ML_Lane 3- DP data 3- Output CONFIG1 CONFIG1 CONFIG2 CONFIG2 AUX_CH+ Auxiliary channel+ Bidirectional Ground AUX_CH- Auxiliary channel- Bidirectional Hot Plug Detect Input Ground DP_PWR +3.3 V (Power switch) power out SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 76: Serial Interface

    Receive data - (I) for full-duplex mode Signal ground Pin assignment RS485 Short description Meaning Data- Transmit / receive data - (I/O) for half-duplex mode Data+ Transmit / receive data+ (I/O) for half-duplex mode Signal ground SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 77: Internal Interfaces

    COEX_TXD(O) ANTCTL1 COEX3(I/O) ANTCTL0 REFCLKp PEWAKE# REFCLKn CLKREQ# PERST# PETp0 PETn0 ALERT# PERp0 SMB_DATA PERn0 SMB_CLK DEVSLP PETp1 UIM-PWR PETn1 UIM-DATA UIM-CLK PERp1 UIM-RESET PERn1 CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 78 PERp0 SMB_DATA PERn0 SMB_CLK DEVSLP PETp1 PETn1 PERp1 PERn1 CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B CONNECTOR KEY B USB_D- SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 79: Usb 2.0 Pin Header

    1. Right-click the Windows Start menu and select "Device Manager". 2. Click on the View menu and turn on " Resources by type" or "Resources by connection". All the interrupts show under the Interrupt request (IRQ) catalog. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 80: Input/Output Address Areas

    SIO logic device 7 CR E9h Control register user LED L1/L2/L3 (Page 81) SIO logic device 7 CR FDh Battery status register (Page 81) For more information and reference code for accessing to Super IO, contact Siemens Technical support. 7.5.5.2 Watchdog control register...

  • Page 81: Watchdog State Register

    LED L3 lit red LED L3 lit green LED L3 lit orange 7.5.5.6 Battery status register The status of the CMOS battery is monitored; the status (two-tier) can be read from the battery status register. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 82: Nvram Address Register

    The BIOS Setup program, or BIOS Setup for short, is located, together with the setup parameters, in a FLASH block on the motherboard. Change the setup parameters of the device in the BIOS Setup, e.g. system time or boot sequence. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 83: Bios Update

    BIOS Setup is described for all devices and device configurations. Some BIOS submenus or Setup parameters may not be included, depending on your order. The interface of your BIOS Setup can deviate from the figures in this document. You can find a detailed description on Firmware/BIOS description (SIMATIC IPC227G, IPC277G) Operating Instructions (https://support.industry.siemens.com/cs/ww/en/view/109797240).
  • Page 84 1. Connect the device to the power supply. 2. Plug a USB stick with FAT/FAT32 file format to the device. 3. Take the BIOS update you downloaded from the Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/75842768)page and place it on the USB stick.

  • Page 85: Alarm, Error And System Messages

    Keyboard error • Field PG: Internal keyboard defective and no external keyboard connected • Other devices: Keyboard defective or not connected PLD configuration failed Programming of the PLC on the motherboard has failed. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 86: Technical Support

    Tools & downloads Please check regularly if updates and hotfixes are available for download to your device. The download area is available on the Internet at the following link: After Sales Information System SIMATIC IPC/PG (http://www.siemens.com/asis) SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 87: Troubleshooting

    Replace the backup battery. OK, the time and data are still wrong USB device does not respond The USB ports are not correctly You need to install the USB device drivers for the supported. required operating system. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 88: Notes On The Use Of Third-Party Modules

    If the error no longer occurs, the third-party module be- • Different pin assignment ing used was the cause of the fault. Replace the third-party module with a Siemens module or contact the module sup- plier. If the device still crashes, contact your technical support team. •...

  • Page 89: Markings And Symbols

    Opening for Kensington lock opening Attention ESD (Electrostatic sensitive Warning of hot surface device) Operator controls Symbol Meaning Symbol Meaning On/off switch, without electrical isola- Eject CD/DVD tion On/off switch, without electrical isola- tion SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 90: Certificates, Approvals And Markings

    CE markings for European countries Marking of Federal Communications Commission for the USA EFUP (Environment Friendly Use Peri- Approved for Korea od) marking for China Test mark of the Underwriters Labora- Disposal information, observe the tories local regulations. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 91: Interfaces

    DVI-D interface Line In LAN interface, not approved for con- Line Out necting WAN or telephone Serial port Microphone input USB port Universal Audio Jack USB 2.0 high-speed port Headphone output USB 3.0 super-speed port SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 92: List Of Abbreviations

    DisplayPort Deutsche Gesellschaft zur Zer- tifizierung von Qualitätsman- agement mBH Data Set Ready Ready for operation Data Terminal Ready Data terminal is ready Digital Versatile Disk Components sensitive to electro- static charge European standard SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 93 NVMe Non-Volatile Memory Express NVRAM Non Volatile Random Access Non-volatile data memory. Data memory is re- Memory tained without external power supply. Optical Disk Drive Personal computer Peripheral Component Intercon- High-speed expansion bus nect SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 94 Intel technology which provides a virtual, closed environment. VT-d Virtualization Technology for Enables the direct assignment of a device (e.g. Directed I/O network adapter) to a virtual device. Watchdog Program monitoring with error detection and alarming. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 95: Glossary

    Communauté Européene: The CE symbol confirms the conformity of the product with all applicable EC directives such as the EMC Directive. Chipset Located on the motherboard, connects the processor with the PCI or PCIe bus and the external interfaces. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 96 TVs to computers, DVD players and similar devices. Drivers Program parts of the operating system. They adapt user program data to the specific formats required by I/O devices such as hard disk, printers, and monitors. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 97 10/100/1000 Mbps. Execute Disable Capability Hardware implementation that prevents mutual memory accesses by programs and applications. It is only effective when all relevant system components, such as processors, operating systems and applications are supported. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 98 Intel Active Management Technology This technology permits diagnostics, management and remote control of PCs. It is only effective when all relevant system components, such as processors, operating systems and applications are supported. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 99 Conventional drives can be used as USB devices. License key The license key represents the electronic license stamp of a license. Siemens AG issues a license key for each software that is protected by a license. License key USB flash drive The license key USB flash drive contains the authorizations or license keys required to enable protected SIMATIC software.
  • Page 100 Industrial Ethernet meets the requirements of industrial automation technology. Programmable controller The programmable controllers of the SIMATIC S7 system consist of a central controller, one or more CPUs, and various other modules (e.g. I/O modules). SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 101 This design makes SSDs more rugged, provides shorter access times, low energy consumption and rapid data transfer. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 102 Wake on Local area network. This function allows the PC to be started via the LAN interface. Warm restart The restart of a computer after a program was aborted. The operating system is loaded and restarted again. The CTRL+ ALT+ DEL hotkey can be used to initiate a warm restart. SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...

  • Page 103: Index

    DC power supply, 71 RJ45 Ethernet, 74 Degree of protection, 66 USB 3.0, 73 Device IT communication, 34 Closing, 40 Open, 40 DiagBase software, 37 DiagMonitor Korea Certificate, 59 Temperature monitoring, 37 Diagnostics, 37 DiagBase software, 37 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 104 USB, 7277 Checking, 18 USB 3.0 Removing, 18 Interface, 73 Pile au lithium, 49 Power supply DC power supply, 71 Processor, 67 Product label, 20 Wall mounting, 2864 PROFINET, 3471 Warranty, 14 Protection class, 66 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 105 Index Watchdog, 38 Monitoring function, 38 Monitoring times, 38 Weight, 66 SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
  • Page 106 Index SIMATIC IPC227G Operating Instructions, 06/2021, A5E50059933-AA...
