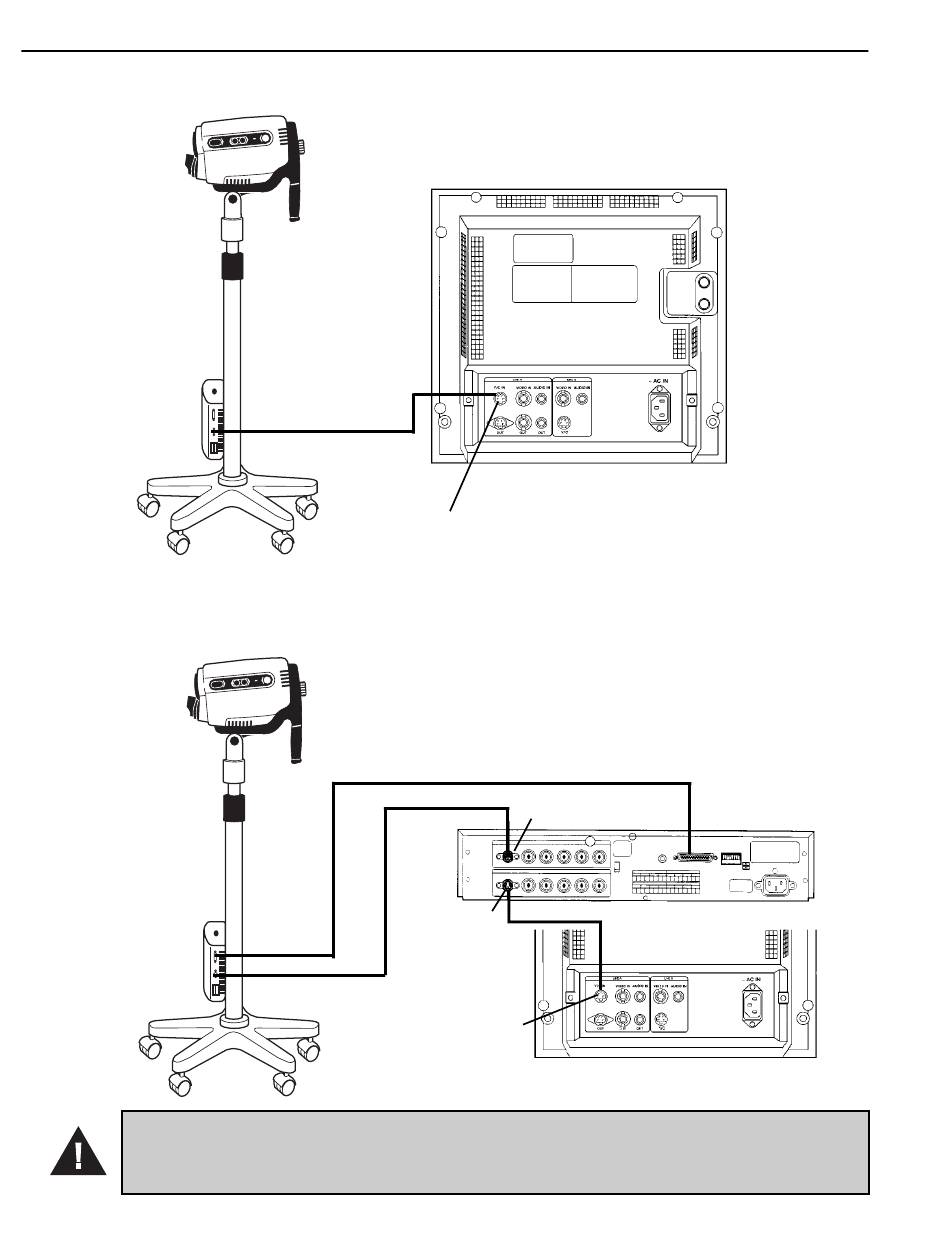

Connection Diagrams
Connecting Video Colposcope with Monitor
Connecting Video Colposcope with VCR/Video Printer
WARNING: All video monitors and peripheral equipment used with this instrument must be IEC 601-1
(or UL 2601) listed to comply with medical electrical safety guidelines. If not IEC 601-1(UL-2601) listed,
the monitor/peripheral equipment should be positioned outside of the 6-foot patient contact area.
Please contact Welch Allyn for more information.
S-Video Cable
Line A Y/C ln
RS232 Interface Cable
S-Video Out
S-Video Cable
Line A Y/C ln
11
Back Panel of Monitor
S-Video In
Back Panel of Monitor
