Welch Allyn 777 Series Manual

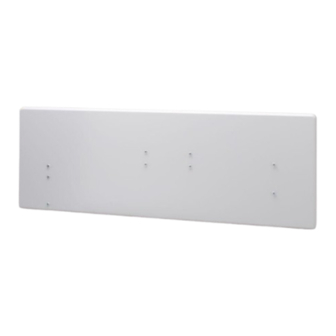

36 Integrated Wall Panel (
Manual part no. 725899, 80021930 Ver. B Revised 2017-04
© 2017 Welch Allyn
WARNING Welch Allyn is not responsible for the integrity of any
mounting installation. Welch Allyn recommends that customers contact
their Biomedical Engineering Department or maintenance service to
ensure professional installation for safety and reliability of any mounting
accessory.

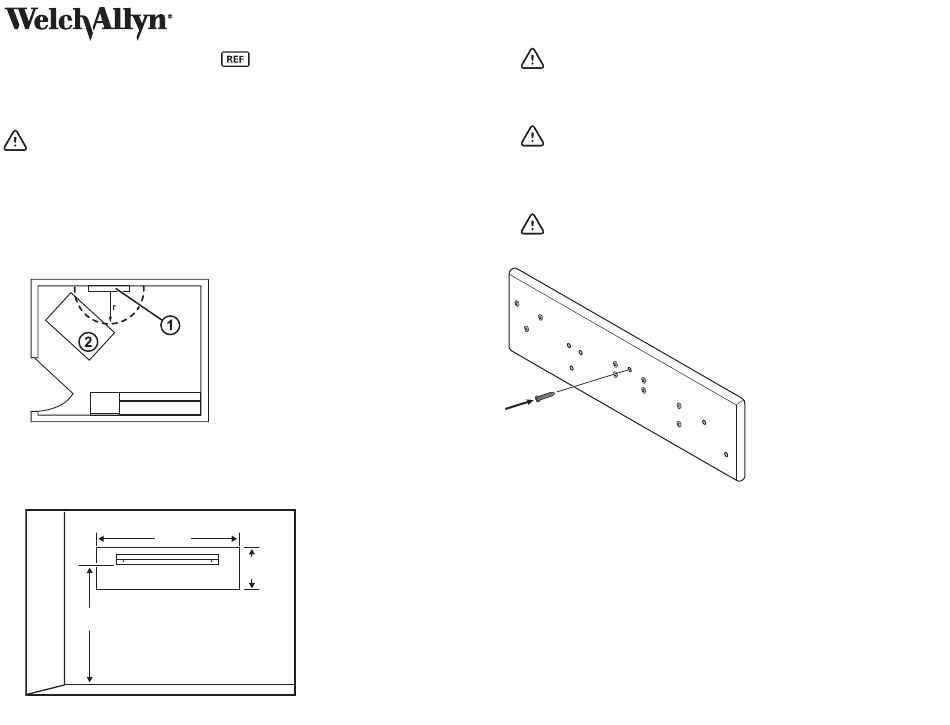

1. Choose a location for the panel near the examination table and an electrical
outlet.
Sample room layout
2. On the selected wall, find and mark the studs, and choose the panel height
and corresponding height for the mounting rail bracket.
Recommendation: Place the bracket 63 in. (160 cm) from the floor.
36 in
(91 cm)
63 in
(160 cm)
77790-6)
1. Panel
2. Examination table
11.75 in
(29.85 cm)
3. Affix the mounting rail bracket to three studs at the selected height using the
available screws.
Caution Ensure that the upper "lip" of the bracket sticks out from the
wall and that the bracket is level.
4. Hang the panel on the mounting rail bracket.
WARNING Ensure that the channel on the back of the panel fully
engages the mounting rail bracket. The panel should be level and flush
to the wall.
5. Secure the unit to the wall using the "A" screw.
WARNING Failure to install this security screw may result in personal
injury and equipment damage.
6. Mount the Welch Allyn products to the panel according to the figure below.
Aneroid blood pressure gauge: position the gauge bottom on the pre-installed
screw and then secure the top of the gauge using the two additional screws
provided.
Basket: secure the basket with the screws provided.
®
SureTemp Plus thermometer: position the thermometer on the pre-installed
screws and then secure it with the two additional screws provided.
Install the remaining products on the pre-installed screws.
For diagnostic systems without SureTemp thermometry, cover the unused
screw holes with the FastCaps provided.
