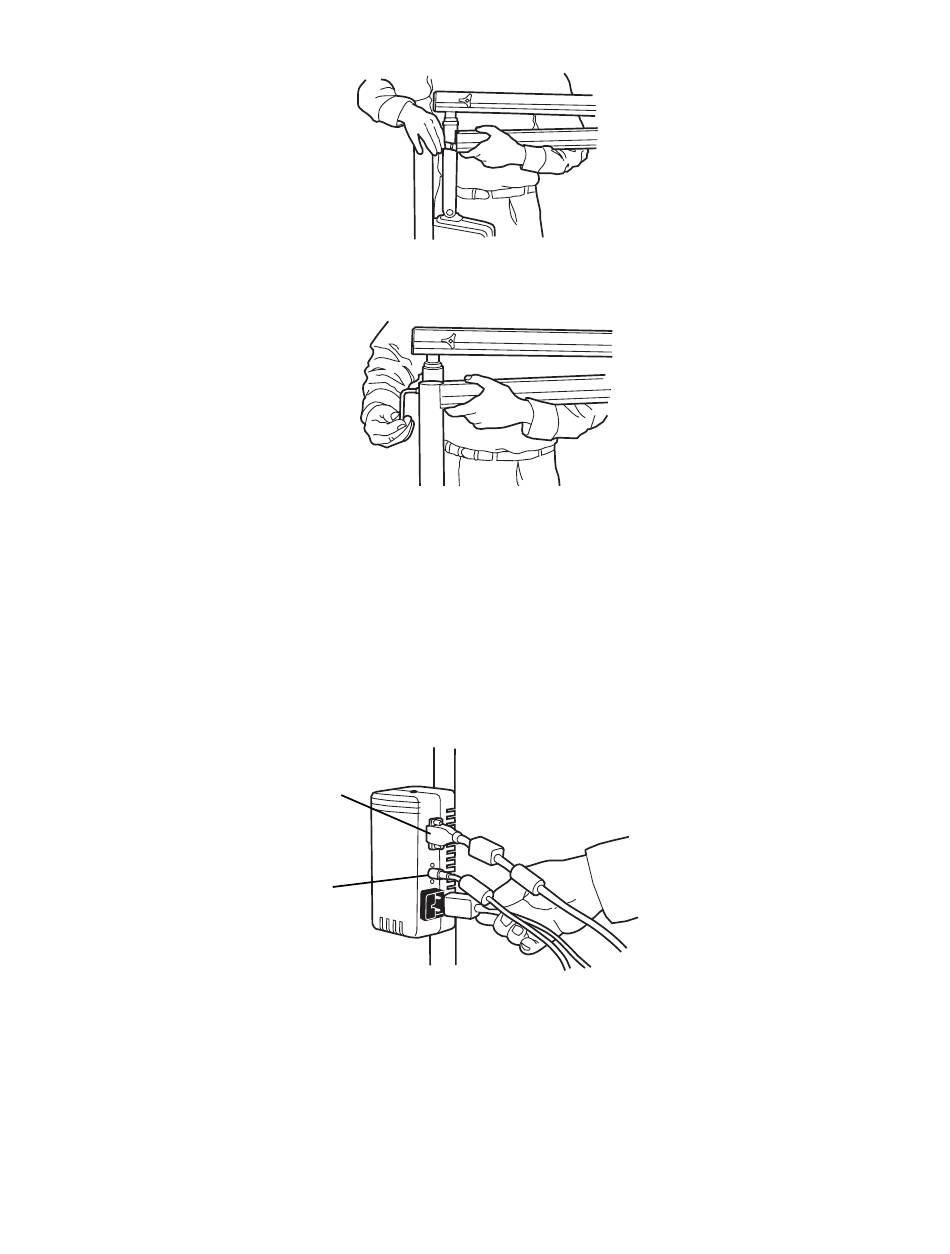

11. Bring the colposcope swing arm assembly to the pole while at the same time pushing the electrical connectors into the
colposcope arm.
12. Tighten the bolt securely with the enclosed Allen wrench. Be sure not to pinch any of the electrical wires between the
vertical pole and arm of the colposcope assembly .
13. Before using the video colposcope, refer to Setting Up Video Colposcope section of this manual.

Setting Up Video Colposcope

1. Connect the power cord to the power cord receptacle in the power supply located on the video colposcope stand.
2. Plug the other end of the power cord into a properly grounded 110-120 volt AC outlet (220-240 volt, 50 cycle for
international).
3. Connect the S-Video cable to the S-Video output on the side of the power supply located on the video colposcope stand.
4. Connect the other end of the S-Video cable into the Line C connector Y/C (S-Video) on the back of the monitor.
5. Plug the monitor into a properly grounded 110-120 volt AC outlet (220-240 volt, 50 cycle for international).
RS232 output
S Video output
14
