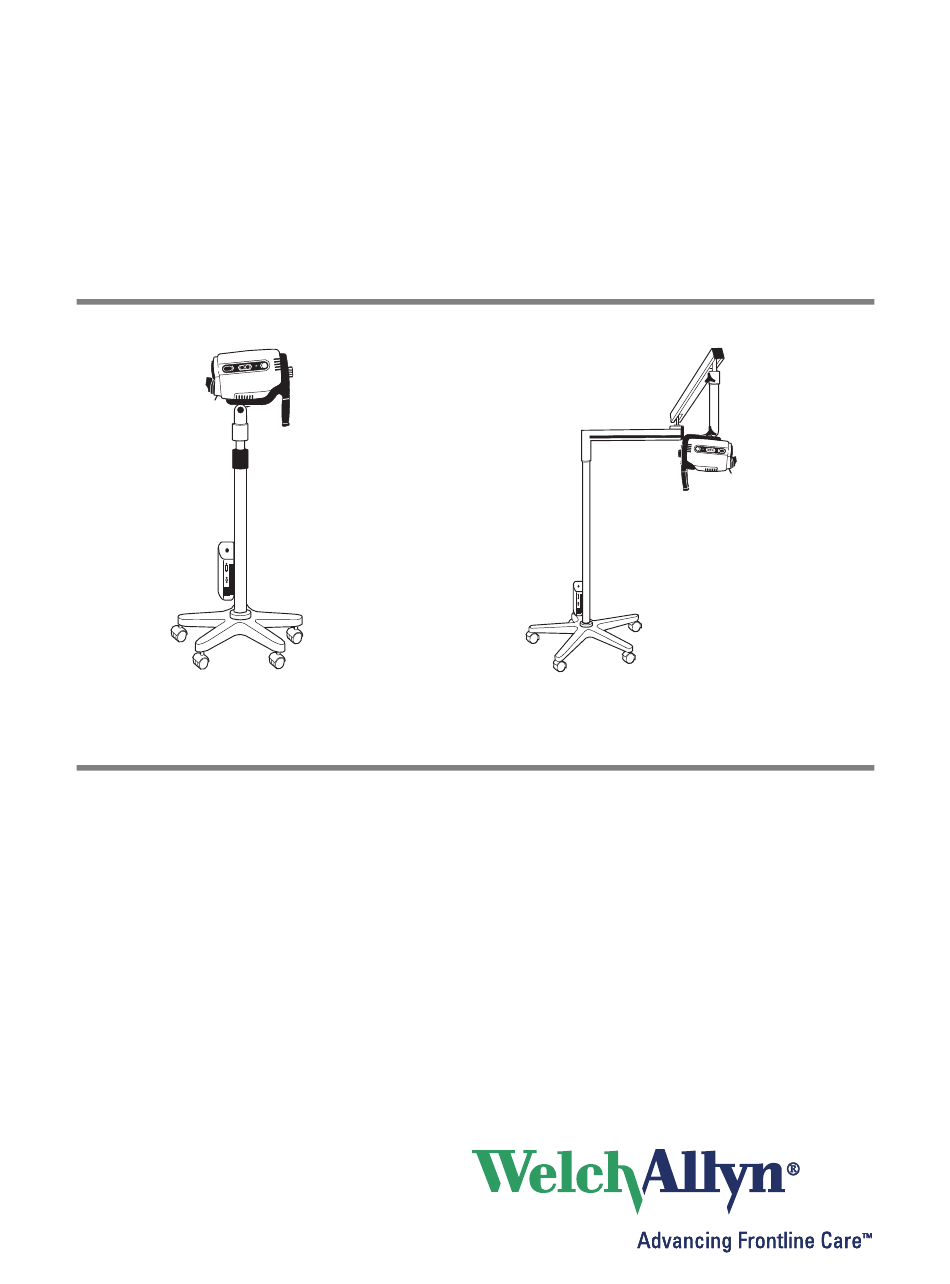

Video Colposcope
Directions for Use
REF 88000A/88001A/89000A/88007/89001A/88007/88002A/88004A/88006A/89006A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88000A and is the answer not in the manual?

Questions and answers

Related Manuals for Welch Allyn 88000A

Summary of Contents for Welch Allyn 88000A

  • Page 1 Video Colposcope Directions for Use REF 88000A/88001A/89000A/88007/89001A/88007/88002A/88004A/88006A/89006A...
  • Page 3 Video Colposcope Directions for Use REF 88000A/88001A/89000A/88007/89001A/88007/88002A/88004A/88006A/89006A...
  • Page 4 Welch Allyn. Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of intended use published in this manual.

  • Page 5: Table Of Contents

    Contents 1 - Introduction ..........1 Indications For Use .
  • Page 6 Contents Welch Allyn Video Colposcope Remote Video Functions......... . . 21 5 - Maintenance .

  • Page 7: Introduction

    Introduction Thank you for purchasing the Welch Allyn Video Colposcope. Follow the operation and maintenance instructions found in this manual and your Video Colposcope will provide you with many years of reliable service. Please read these instructions thoroughly before attempting to use your new Video Colposcope.

  • Page 8: Warnings And Cautions

    Introduction Welch Allyn Video Colposcope Warnings and Cautions Familiarize all operating personnel with the general safety information in this summary. Specific warnings and cautions are also found throughout this manual. Warnings A warning statement in this manual identifies a condition or practice, which if not corrected or discontinued immediately, could lead to patient injury, illness, or death.

  • Page 9: Cautions

    Caution All service to the Video Colposcope must be performed by Welch Allyn or by an authorized repair center.
  • Page 10 Introduction Welch Allyn Video Colposcope...

  • Page 11: Components

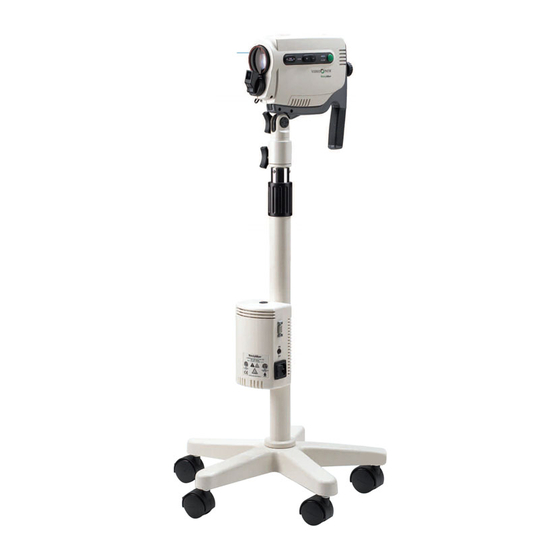

    Components Video Colposcope 88000A 89000A Video Colposcope and vertical stand Video Colposcope and swing arm with vertical stand hardware kit: stand with swing arm hardware kit: • Allen wrench • Allen wrench • Allen bolt • Bolt • Mounting washer •...
  • Page 12 Components Welch Allyn Video Colposcope All illustrations are for reference only. 88600 S-Video Cable 761076-0 Power Cord Optional Accessories 09800-U Replacement Lamp 88500 RS-232 Interface Cable 488307-9 Replacement Fuse (2 required) 88010 Cervical Model 88040 Dust Cover for Vertical Stand...

  • Page 13: Front View

    “Video Monitor” page 30. Contact Welch Allyn for details. VCR/Printer. Contact Welch Allyn for details. Image Capture System. Contact Welch Allyn for details. Note Only accessories and components indicated in this manual are to be used with the Welch Allyn Video Colposcope system.

  • Page 14: Side Views

    Components Welch Allyn Video Colposcope Side Views Green filter LED indicator. Fine Focus control Illuminates if the electronic button. Pressing < or green filter is on. > adjusts the focus. Green filter button. Pressing Polarization filter FINE turns the electronic green filter control.

  • Page 15: Back View

    Directions for Use Components Back View Power switch. Power control Ventilation slots. Allow air to for the Video Colposcope. enter and leave unit, cooling internal components. Attachment knob. Fastens handle to Video Colposcope. Remote video function buttons. Allows use of remote printing and saving functions with appropriate accessory device.

  • Page 16: Vertical Stand

    Components Welch Allyn Video Colposcope Vertical Stand RS232 interface cable Height adjustment ring. Allows connector. Couples with RS- vertical movement and locking of stand 232 interface cable. at desired height;vertical height adjustment 36”-46” (91.4cm to 116.8cm). S-Video output. Outputs S-Video.

  • Page 17: Monitor

    Image is for reference only. Actual monitor may vary. Monitor shown is SONY LMD-1410. Use the video monitor provided by Welch Allyn or any video monitor that meets the specifications listed on page 30. For detailed instructions, please refer to the provided manufacturer’s operation manual.

  • Page 18: Printer

    Components Welch Allyn Video Colposcope Printer WARNING If peripheral devices (example: monitor, video printer, VCR ,other) do not comply with IEC 60601-1-1, they must be kept out of the patient area (6 feet minimum from patient). For detailed instructions, please refer to the printer operation manual that has Note been provided by the manufacturer.

  • Page 19: Connections And Assembly

    Connections and Assembly WARNING If peripheral devices (example: monitor, video printer, VCR ,other) do not comply with IEC 60601-1-1, they must be kept out of the patient area (6 feet minimum from patient). WARNING All signal input and output (I/O) connectors are intended for connection to only peripheral devices (example: monitor, video printer, VCR) that are in compliance with IEC 60601-1 (General Requirements for Safety, Medical Electrical Equipment) or other IEC standards (for example IEC 60950, Information...

  • Page 20: Connecting Video Colposcope With Optional Vcr/Video Printer

    Connections and Assembly Welch Allyn Video Colposcope Connecting Video Colposcope with Optional VCR/Video Printer WARNING If peripheral devices (example: monitor, video printer, VCR ,other) do not comply with IEC 60601-1-1, they must be kept out of the patient area (6 feet minimum from patient).

  • Page 21: Assembly

    Before initial set up of the Video Colposcope, check all components received against the parts list of components (see Components section of this manual) to verify a complete set. If parts are missing, please notify Welch Allyn. Review the Nomenclature, Preparation for Use, Operation, and Maintenance sections to become familiar with the...

  • Page 22: Vertical Stand Assembly

    Connections and Assembly Welch Allyn Video Colposcope Vertical Stand Assembly The Video Colposcope stand is shipped unassembled. Minimal assembly is required. Remove the stand and base parts from their cartons. 2. Place base upside down on the floor and insert casters into holes on the bottom of the base.
  • Page 23 Directions for Use Connections and Assembly Locking caster 2. Place base upside down on the floor and insert casters into holes on the bottom of the base. (Do not place two locking casters next to each other.) 3. Place the base on the floor with casters down. Lock the two locking casters. 4.

  • Page 24: Setting Up Video Colposcope

    Connections and Assembly Welch Allyn Video Colposcope 12. Tighten the bolt securely with the enclosed Allen wrench. Be sure not to pinch any of the electrical wires between the vertical pole and arm of the colposcope assembly. 13. Before using the Video Colposcope, refer to Setting Up Video Colposcope section of this manual.

  • Page 25: Operation

    Operation Power Switch With the power cord connected to a properly grounded outlet, and the S-video cable connected to the Video Colposcope and monitor, activate the power switch on the handle of the Video Colposcope. Lamp Ignition Once the Video Colposcope's power switch has been activated, the lamp will ignite. The lamp requires approximately 11 seconds to warm up.

  • Page 26: Mag Index Control

    Operation Welch Allyn Video Colposcope Mag Index Control Note Pressing the scan button on the monitor or activating this menu option sets the display size to -3% “under” image scan size and alters the size of the image on the screen, making the magnification index displayed inaccurate. Activating the button or mem option briefly displays the word “under”...

  • Page 27: Vertical Height Adjustment Ring (Vertical Colposcope Model Only)

    The handle of the video colposcope contains three buttons that control three video functions. These functions, provided by a remote video printer or Welch Allyn software program, are Freeze, Print, and Toggle. (See “Operation” on page 19. of this manual for connecting the printer to the video colposcope.)
  • Page 28 Operation Welch Allyn Video Colposcope...

  • Page 29: Maintenance

    Note solutions. However, tests have shown these solutions to be compatible with Welch Allyn colposcopes, providing the manufacturers' directions are followed. Video Colposcope Cleaning Turn the power switch off and unplug the power cord from the electrical outlet prior to cleaning.

  • Page 30: Illumination Beam Director Lens

    Allow at least five minutes for the lamp to cool before replacing. Replace with Welch Allyn lamp #09800-U only. Turn the power switch off and unplug the power cord from the electrical outlet.

  • Page 31: Replacing Fuses

    5. Push the retainer spring toward the back ofthe colposcope and remove the lamp from its housing. 6. Remove a Welch Allyn replacement lamp # 09800-U from its package. Do not touch the lamp itself or the interior reflective surface of the lamp. Skin oils will cause premature lamp failure.
  • Page 32 Maintenance Welch Allyn Video Colposcope 2. Pull out and remove the blown fuse from the fuse holder. 3. Replace with new fuses # T1.00L -250V 1A Time lag/Low Breaking Capacity (Welch Allyn Part # 488307-9). 4. Reinsert the fuse holder by pressing until it snaps into place.

  • Page 33: Troubleshooting

    Make sure lamp access door and handle unit are properly attached. Fuses Remove fuse panel & replace blown fuse with T1.00L 250V 1A time lag (Welch Allyn part number # 488307-9). Wall outlet Plug the power cord into a wall outlet known to work.
  • Page 34 Maintenance Welch Allyn Video Colposcope...

  • Page 35: Specifications

    70kPa to 110kPa Illumination Lamp type 21 Watt metal halide arc Lamp life 750 hrs @ 1 hr per start Brightness adjustment Automatic electronic shutter Lamp Welch Allyn part no. 09800-U Lamp voltage 60 volts Cooling method Forced air via fan...

  • Page 36: Video Monitor

    -40°F (-40°C) to 120° F (+50° C) environment Relative humidity 95% max. Fuses T1.00L-250V 1 Amp time lag, (Welch Allyn part # 488307-9) low breaking capacity Classification Electro medical equipment FDA Class I equipment Patents This product is covered by the following patents: 5,083,059;...

  • Page 37: Agency Approvals

    The CE mark on this product indicates it has been tested to and conforms with the provisions noted in the 93/42/EEC Medical Device Directive. Authorized EC Representative: EC REP European Regulatory Manager Welch Allyn, Ltd. Navan Business Park Dublin Road Navan, County Meath, Republic of Ireland Tel +353 46 90 67700...

  • Page 38: Guidance And Manufacturer's Declaration

    Specifications Welch Allyn Video Colposcope Guidance and Manufacturer’s Declaration Emissions and Immunity Information Electromagnetic Emissions The REF 880 and 890 Series Video Colposcope is intended for use in the electromagnetic environment specified below. The customer or user of the REF 880 and 890 Series Video Colposcope should assure that it is used in such an environment.
  • Page 39 Directions For Use Specifications Electromagnetic Immunity The REF 880 and 890 Series Video Colposcope is intended for use in the electromagnetic environment specified below. The customer or user of the REF 880 and 890 Series Video Colposcope should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance Level...
  • Page 40 Specifications Welch Allyn Video Colposcope Electromagnetic Immunity The REF 880 and 890 Series Video Colposcope is intended for use in the electromagnetic environment specified below. The customer or user of the REF 880 and 890 Series Video Colposcope should assure that it is used in such an environment.
  • Page 41 Directions For Use Specifications Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the Video Colposcope The REF 880 and 890 Series Video Colposcope is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 42 Specifications Welch Allyn Video Colposcope...

  • Page 43: Service

    Support center nearest you (page ii) on normal business days. If you are advised to return a product to Welch Allyn for repair or routine maintenance, schedule the repair with the service center nearest you. The part and serial numbers are located on the housing of the colposcope near the fan.
  • Page 44 Service Welch Allyn Video Colposcope...

  • Page 45: Warranty

    Warranty Welch Allyn warrants Video Colposcope, when new, to be free of defects in material and workmanship and to perform in accordance with manufacturer's specifications for a period of one year from the date of purchase from Welch Allyn or its authorized distributors or agents.
  • Page 46 Warranty Welch Allyn Video Colposcope...
  • Page 48 4341 State Street Road Skaneateles Falls, NY 13153, U.S.A. Tel.: 1-800-535-6663 Fax: 1-315-685-3361 www.welchallyn.com Printed in the USA 880324 Ver. C...
