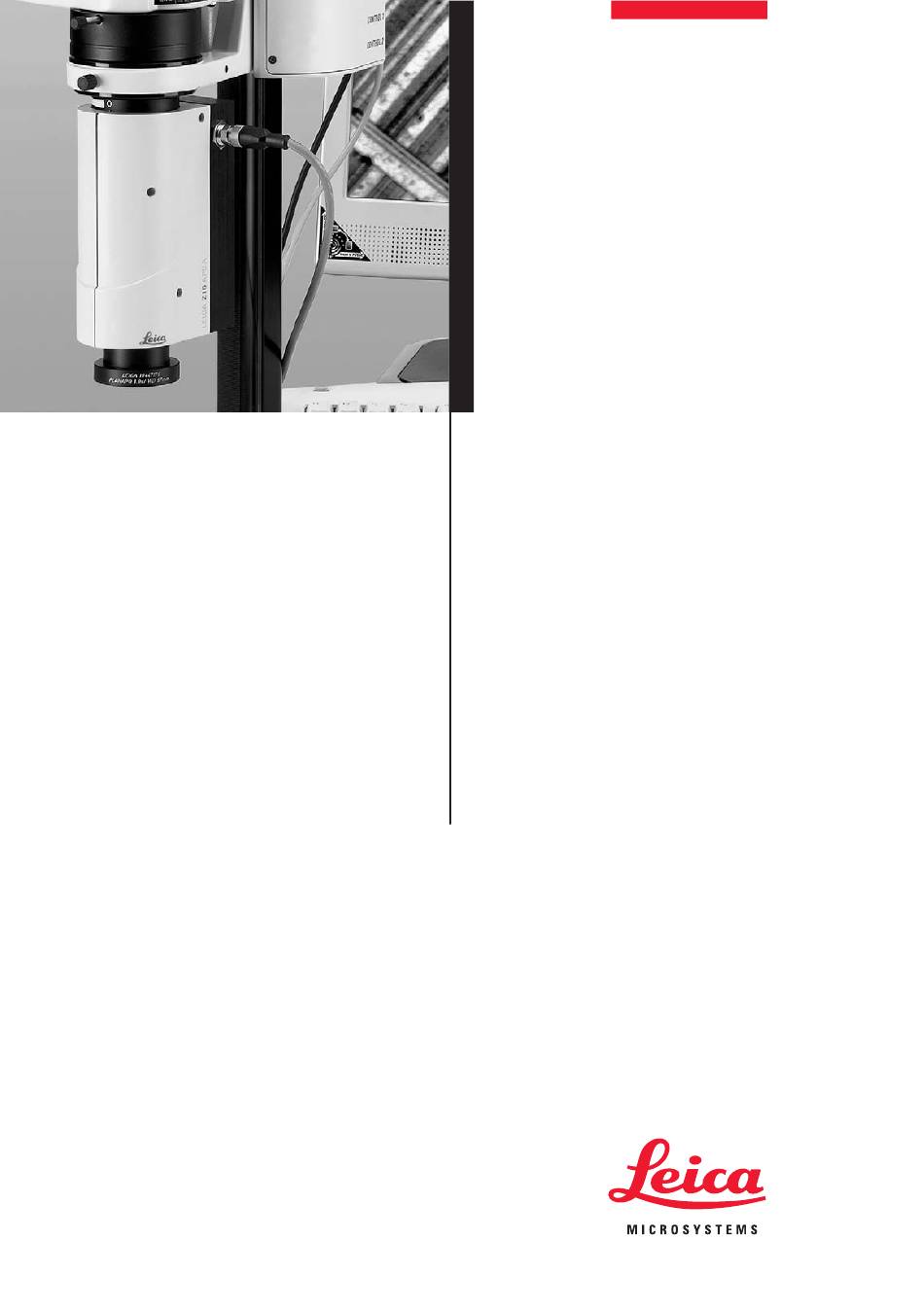

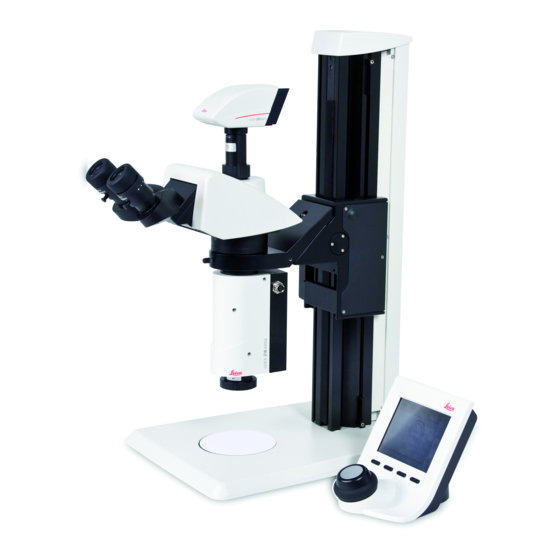

  • Page 1 Leica Z6 APO A & Z16 APO A User manual...
  • Page 2 Overview of the instrument Fig. 1 Motorized Leica Z16 APO A and Z6 APO A zoom systems with integrated, motorized fine focusing, integrated, motorized iris diaphragm and planapochromatic objective. 1 Leica Z16 APO A zoom system 2 Leica Z6 APO A zoom system...
  • Page 3 How- ever, please take the time to read the user manual The Leica Z6 APO A and Z16 APO A from Leica and the operating safety information to become familiar with the advantages and options of your...

  • Page 4: Table Of Contents

    3.3 Motorized functions ............28 Leica Z6 APO A & Z16 APO A – User manual...
  • Page 5 4.5 Expansion diagram ............46 Leica Z6 APO A & Z16 APO A – User manual...

  • Page 6: Safety Concept

    (1.5) Numbers in parentheses within the descrip- tions pertain to diagrams and the items in the dia- tions of the Leica Z6 APO A and Z16 APO A zoom grams. Example (1.2): Figure 1 is found on Page 2 systems and contains important instructions for their operational safety, maintenance, and acces- and item 2 is the zoom system Leica Z6 APO A.

  • Page 7: Symbols Used

    Description Warning of a danger This symbol indicates especially important infor- The Leica Z6 APO A and Z16 APO A zoom systems mation that, if not observed, are optical systems with 6.3:1 or 16:1 motorized – can cause hazards to personnel, magnification changer and a central beam path.
  • Page 8 Place of use If the Leica Z6 APO A or Z16 APO A, its components – The Leica Z6 APO A and Z16 APO A may only be or accessories are used other than as described in operated in closed, dust-free rooms at +10˚ C to the user manual, injury or property damage may +40˚...
  • Page 9 Users should be made aware of the potential risk of infection. The risk can be kept to a minimum by using personal eyepieces for each individual or detachable eyecups. Leica Z6 APO A & Z16 APO A – Safety concept...

  • Page 10: Assembly

    35 000 011 Achromat 10 431 692 175mm f = 800mm 10 382 162 200mm 35 000 013 Achromat f = 1200mm 10 315 306 10 445 156 10 445 352 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 11: Zoom Systems

    Assembly of zoom system and objective: Leica Z16 APO A and Z6 APO A zoom systems, mounted objective. 1 Leica Z16 APO A zoom system 2 Leica Z6 APO A zoom system 3 Objectives Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 12: Tubes, Carriers

    Z6 APO A 10 446 368 Z16 APO A 10 446 369 g e 1 0 e e p a t i v e s s O b j e c Leica Z6 APO A & Z16 APO A – Assembly...
  • Page 13 Similarly, you can also attach a coaxial illuminator between the zoom system and the tube (Chapter 2.9). Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 14: Camera Assembly With As Video/Phototube

    You can mount digital cameras onto the AS video/phototube to create a slim, space-saving equipment configuration. This configuration con- sists of: – Leica Z6 APO A or Z16 APO A zoom system and objective – Video/phototube AS (10447204) – Video objective with C-mount –...
  • Page 15 Fig. 3 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 16: Camera Assembly With A Video/Phototube

    You can mount digital cameras to the A video/pho- totube using a video objective. This configuration consists of: – Leica Z6 APO A or Z16 APO A zoom system and objective – A video/phototube (10447128) – Video objective with C-mount –...

  • Page 17: Camera Assembly With Y Tube

    Z16 APO A 10 446 369 g e 1 0 10 446 343 e e p a t i v e s s O b j e c 10 446 394 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 18: Camera Assembly With Y Tube And Hd Video/Phototube

    Digital cameras can be set up using Y tube and HD video/phototube. (See diagram 3, p. 17.) This equipment consists of: – Leica Z6 APO A or Z16 APO A zoom system and objective – Y tube HD video/phototube – HD video/phototube –...
  • Page 19 Fig. 4 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 20: Assembly Of Binocular Tubes On Y Tube

    10 447 109 10 446 345 10 447 082 Z16 APO A 10 446 344 10 446 369 Z6 APO A 10 446 368 10 446 343 10 446 394 Leica Z6 APO A & Z16 APO A – Assembly...
  • Page 21 Assemble the desired binocular tube, Ergo- Module, video module or video/photo tube on the Y tube according to the M2-105-0 user For assembly instructions, please refer to manual. Chapter 2.4. Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 22: Attachment To Stands

    – For short working distances and flat objects: lower angle bracket. Also for using the attach- ment for incident/oblique observation (see sep- arate User Manual). – For long working distances and for large objects: top angle bracket. Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 23: Incident And Transmitted Light Stands With Column 500Mm

    10 445 363 10 447 165 Leica MATS 10 445 387 10 447 165 10 445 367 Leica MATS 10 447 164 Leica MATS 10 446 359 10 447 164 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 24: Swinging-Arm Stands, Oem

    13 312 614 10 447 196 10 439 097 10 446 259 10 447 082 10 439 170 10 445 153 (450mm) 10 445 154 (800mm) 10 445 152 10 439 096 Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 25: Swinging-Arm Stand Esd

    – Focusing arm (10446343) for probers You can use the large swinging-arm stand with the Leica Z6 APO A or the Z16 APO A. You have The focusing arms can be used with the A various options for using the zoom system on the video/phototube or the Y tube.

  • Page 26: Electrical Connections

    (Universal Manual Control) Fig. 5 Connection of zoom system via Lumberg plug Fig. 7 Foot switch 1 M12 plug with screw connection The plug arrangement is shown on p. 44. Leica Z6 APO A & Z16 APO A – Assembly...

  • Page 27: Illumination

    2.9 Illumination You can use the Leica Z6 APO A and Z16 APO A zoom systems with various illuminators. Ask your Leica consultant about our wide selection. The coaxial illuminator with quarter-wave plate for the Leica Z6 APO A and the Z16 APO A was specially developed for use with fiber-optic light guides and cold-light sources (diagram 1, see p.

  • Page 28: Operation

    In comparison to a manual zoom system, the – for Leica Z6 APO A for 0.57 / 0.8 / 1 / motorized Leica Z6 APO A and Z16 APO A offer: 1.25 / 1.6 / 2 / 2.5 / 3.2 / 3.6 –...

  • Page 29: Changing Button Assignment

    – ZW Zoom up/down, fine zoom – FF+ and FF– Fine focus up/down, quick – FFW Fine focus up/down, fine – F+ and F– Motor focus (optional) up/down – I Aperture of the iris diaphragm Leica Z6 APO A & Z16 APO A – Operation...

  • Page 30: Fine Focusing: Ff And Ffw

    The control of the iris diaphragm is carried out via UMC and is open after initialization. Using wheel I, you can regulate the aperture and increase the depth of field for 3D objects. Leica Z6 APO A & Z16 APO A – Operation...

  • Page 31: Storing Current Positions: Set

    – The stored positions of zoom, focus and iris diaphragm are automatically set. Deleting the stored positions Press the Set button for approx. four seconds, until a long signal is heard. Leica Z6 APO A & Z16 APO A – Operation...

  • Page 32: Working With A Binocular Tube

    If this is not the Set the eye lenses (9.2) to 0. case, repeat this procedure. Set the lowest zoom position with key Z– on the UMC handheld controller. Leica Z6 APO A & Z16 APO A – Operation...
  • Page 33 2 Eyelenses for adjusting the diopter settings 6 Iris diaphragm and zoom, integrated and from +5 to –5 motorized 3 Adjustable eyecups 7 Focusing drive, fine (poss. motor focus with UMC) 8 Focusing drive, coarse Leica Z6 APO A & Z16 APO A – Operation...

  • Page 34: Appendix

    4. Appendix 4.1 Dimensions 4.1.1 Dimensions of zoom systems Leica Z6 APO A Leica Z16 APO A Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 35: Dimensions Of Objectives

    4.1.2 Dimensions of objectives Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 36: Dimensions Of Tubes

    4.1.3 Dimensions of tubes AS video/phototube Y tube Leica Z6 APO A & Z16 APO A – Appendix...
  • Page 37 A video/phototube Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 38: Dimensions Of Carriers

    4.1.4 Dimensions of carriers Carrier for AS tube Focusing arm for probers Ø43 Lowest Focusing Position 25.5 77.5 Leica Z6 APO A & Z16 APO A – Appendix...
  • Page 39 Highest Focusing arm for bonders Focusing Positio Lowest Focusing Position Ø76 Interface for Ø25 Column Tiltable focusing arm Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 40: Dimensions Of Adapters

    4.1.5 Dimensions of adapters Adapter for achromatic objectives Adapter for DM objectives 4.1.6 Dimensions of coaxial incident light housing Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 41: Technical Data

    0.034 – 0.224nA Field of view ∅ 4.2mm – 0.67mm 4.2mm – 0.26mm Data with Leica DC480 digital camera / 1× planapochromatic objective / AS tube / 0.63× video objective – Magnification 0.36× – 2.3× 0.36× – 5.8× Chip: specimen –...
  • Page 42 United States Patent and Trademark Office Eyebase (interpupillary distance) 55mm – 75mm Ergonomic wide-field 10×/21, 16×/14, 25×/9,5, 40×/6, distortion-free eyepieces for persons wearing glasses plug-on eyecups for protection from infection Leica Z6 APO A & Z16 APO A – Appendix...
  • Page 43 – 10447179 Adapter for DM objectives 0.030kg – 10447178 Adapter for HR objectives 0.030kg – 10446229 Trinocular video/phototube 1.380kg – 10447160 2× wide-field eyepieces for persons wearing glasses 10×/21B 0.320kg Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 44: Electrical Connection Diagram

    Foot switch Y cable Z6 APO A Z16 APO A MST31 CTL2 Power connection CTL 2 CTL 2 CTL 1 Motor focus 80-240 V Distribution box Plug arrangement M12 plug Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 45: Visual Optical Data With Y Tube

    3.84 0.96 1.88 0.75 1.33 2.67 1.67 0.67 0.96 1.92 0.48 0.76 1.52 0.95 0.38 0.75 0.52 1.04 0.65 0.26 Z6 APO A: Zoom 0.57–3.6 Z16 APO A: Zoom 0.57–9.2 Leica Z6 APO A & Z16 APO A – Appendix...

  • Page 46: Expansion Diagram

    10 382 130 10 445 154 (800mm) 10 446 304 10 446 228 10 446 302 10 446 303 10 446 301 Leica Z6 APO A & Z16 APO A – Assembly Leica Z6 APO A & Z16 APO A – Appendix...
  • Page 47 10 446 100 (500mm) 10 447 041 (500mm) 10 445 631 10 445 363 10 445 387 10 445 367 10 446 359 Leica Z6 APO A & Z16 APO A – Assembly Leica Z6 APO A & Z16 APO A – Appendix...
  • Page 48 Leica Microsystems – the brand for outstanding products Leica Microsystems’ mission is to be the world’s first-choice provider of innovative The companies of the Leica Microsystems Group operate internationally in four business solutions to our customers’ needs for vision, measurement, lithography and analysis segments, where we rank with the market of microstructures.
