7.2

Retrieve the Sample Configuration File

The configuration of the QuickServer is provided to the QuickServer's operating system via a comma-
delimited file called "CONFIG.CSV".
If a custom configuration was ordered, the QuickServer will be programmed with the relevant device
registers in the Config.csv file for the initial start-up. If not, the product is shipped with a sample config.csv
that shows an example of the drivers ordered.
•
In the main menu of the FS-GUI screen, go to "Setup", then "File Transfer", and finally "Retrieve".
•
Click on "config.csv", and open or save the file.
7.3

Change the Configuration File to Meet the Application

Refer to the FieldServer Configuration Manual in conjunction with the Driver supplements for information
on configuring the QuickServer.

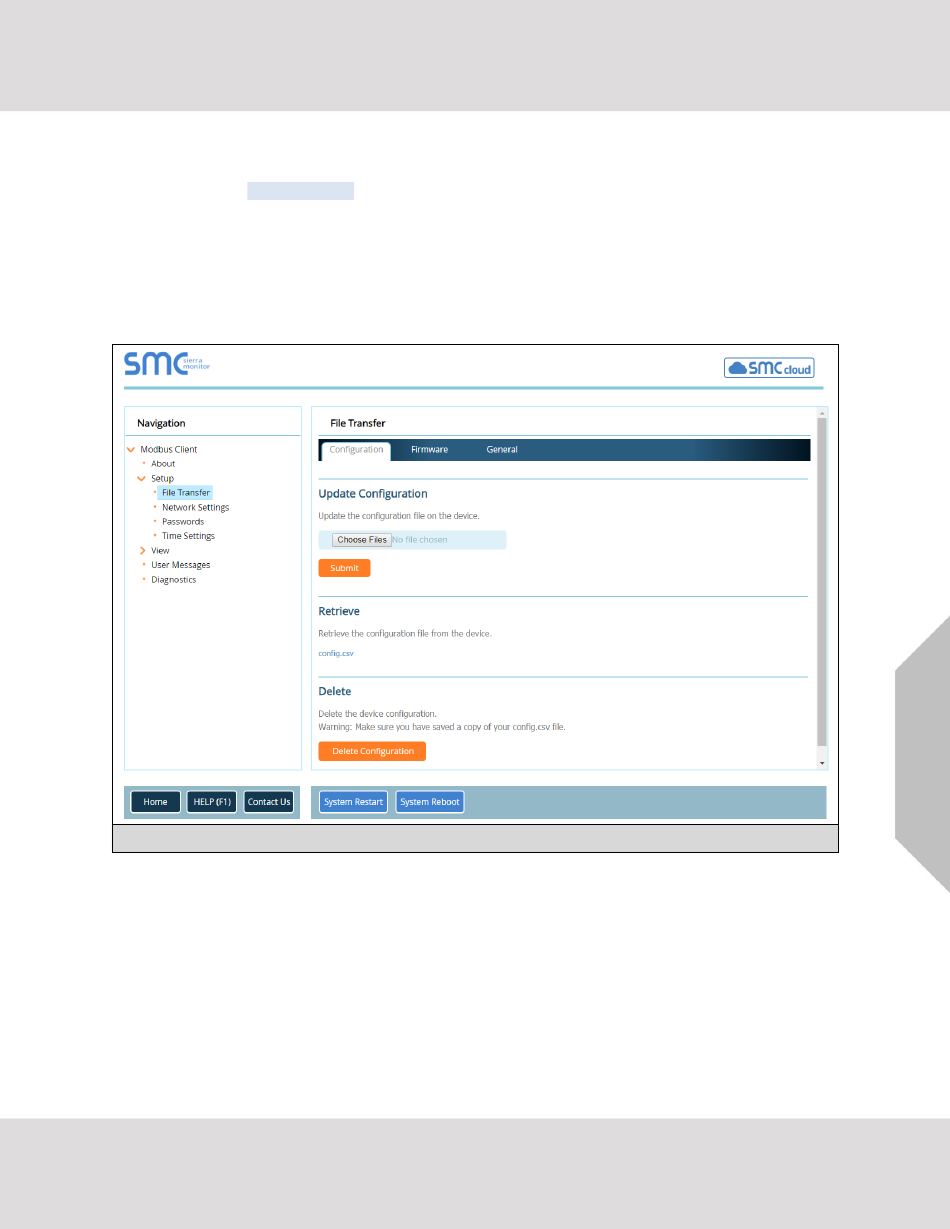

Figure 21: FS-GUI File Transfer

QuickServer Start-up Guide
Configuring the Gateway
22
