2.7 Snapshot

2.7.1 Schedule Snapshot


On the preview interface, right click mouse and then select Manual->Record, or in the main
menu, from Setting->Storage->Record, check the box to enable snapshot function of
corresponding channels. See Figure 2-16.

In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input
snapshot mode as regular, size, quality and frequency. See Figure 2-18.

In main menu, from Setting->Camera->Encode->Schedule interface, please enable snapshot
function. See Figure 2-18.
Please refer to the following figure for detailed information.

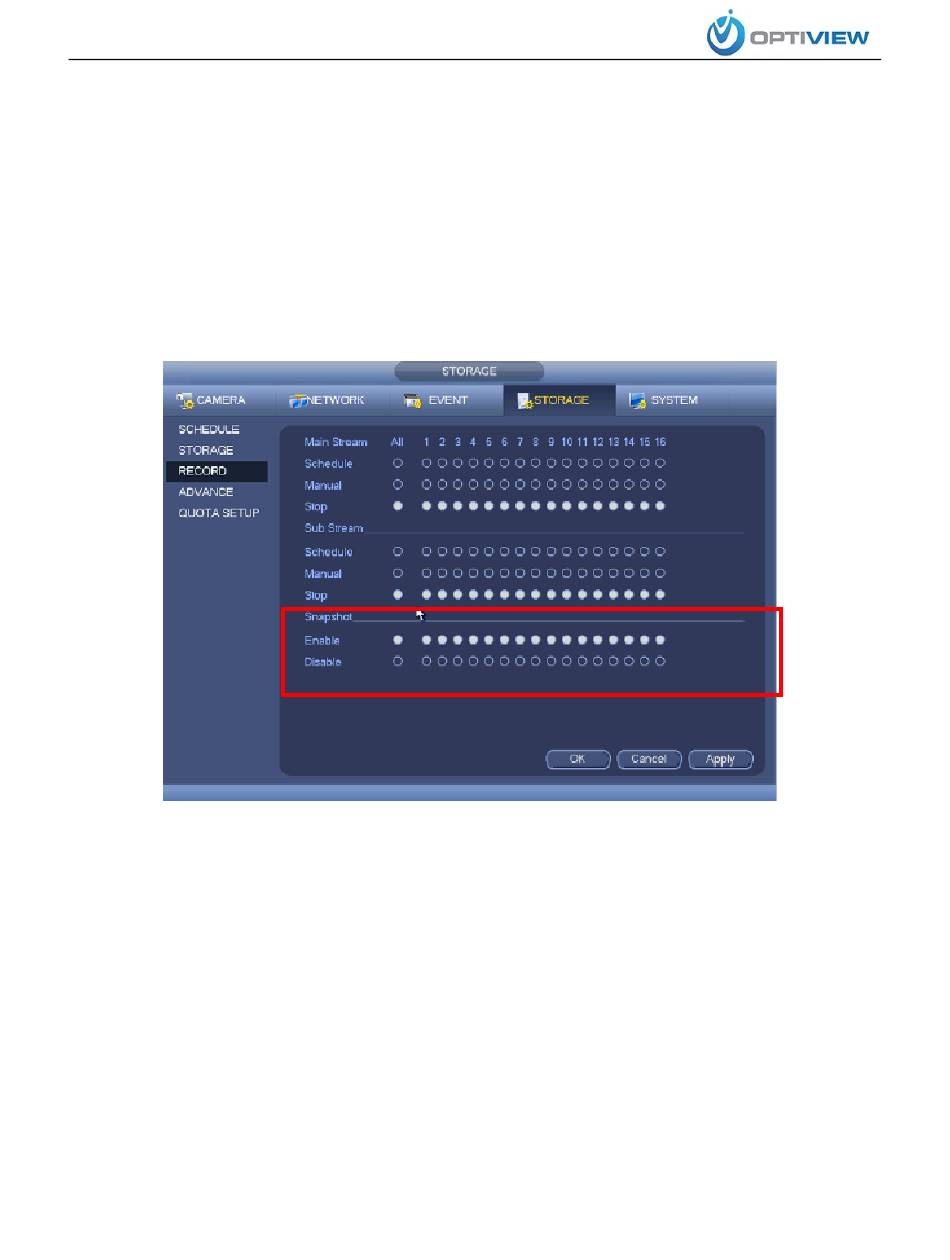

Figure 2-16
