Rapture No Arm Frame Replacement Instructions

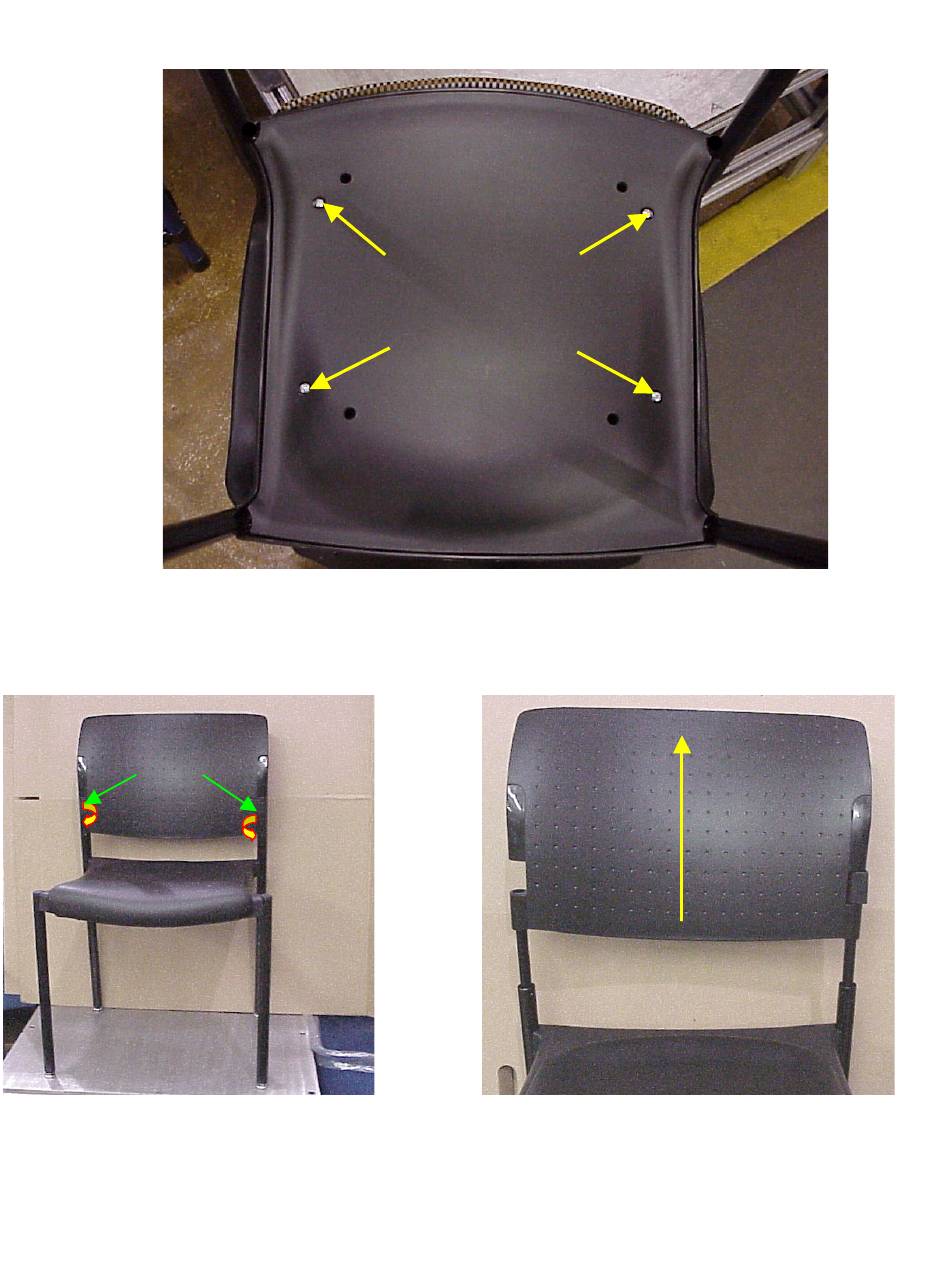

Remove Screws
from Seat Shroud
Turn the chair upside down and place the seat on the corner of a table. Use a Phillips
screwdriver bit to remove the four screws in the seat shroud. Remove the seat shroud
from the chair assembly. Turn chair over to the upright position.
Location of
Chair Back
Clips
There are two no arm backrest clips locate in the backrest. If you were sitting in the
chair, rotate the clip to the right clockwise and the clip to the left counterclockwise. Pull
the backrest up away from the chair assembly. The clips may fall out when the back of
the chair is coming off the frame.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rapture Stack Chair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KI Rapture Stack Chair

  • Page 1 Rapture No Arm Frame Replacement Instructions Remove Screws from Seat Shroud Turn the chair upside down and place the seat on the corner of a table. Use a Phillips screwdriver bit to remove the four screws in the seat shroud. Remove the seat shroud from the chair assembly.
  • Page 2 Remove the seat by grabbing the front end of the seat and pulling up away from the frame. Scrap or return the old frame. Place the new frame on a solid level surface to re- assemble. Clip Positions Push the backrest down when clips is in position Place the seat on the new frame, and push seat in position.
  • Page 3 The backrest must be pushed all the way down onto the back tubes on the frame for the clips to rotate. When the backrest has been pushed all the way onto the frame’s back tube, rotate the clips towards the center of the chair. Rotate the clip marked L clockwise and the clip marked R counterclockwise.
