KI Ruckus Tote Storage Assembly Instructions

KI Ruckus Tote Storage Assembly Instructions

Undersurface rail kit

Advertisement

Quick Links

marked
pre-drilled
holes
tabletop
left-hand
slide rail
cordless
power drill

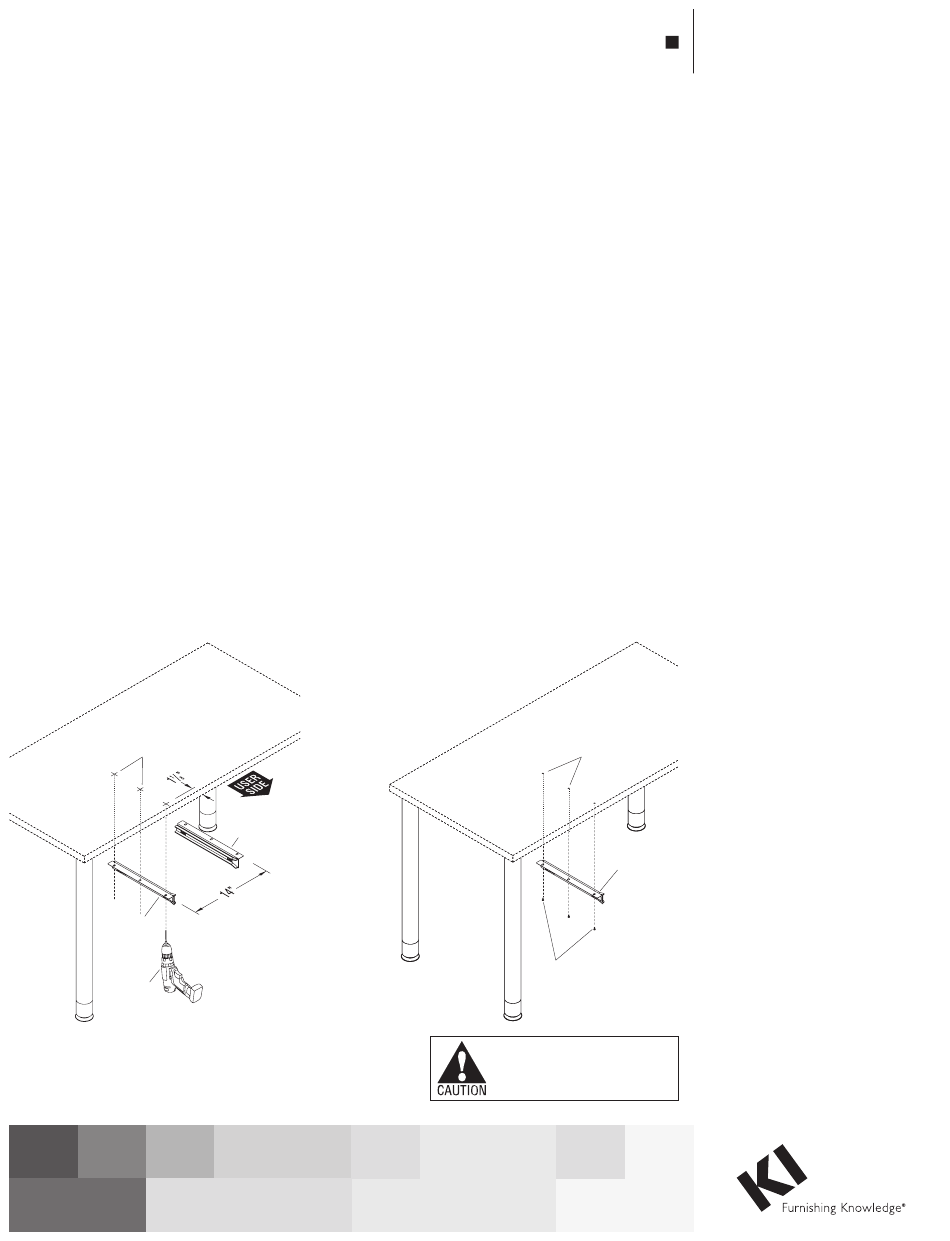

Figure 1
Tools Required
Carpenter Square or Tape
Measure
Cordless Power Drill
/
" Drill Bit
1
8
Note: For some installations,
mounting holes may be pre-drilled
to the underside of the tabletop at the
factory. If so, go to and follow only
steps 2, 3, 12 & 13. The instructions
below cover when an alternate
mounting location is desired, or
when no pre-drilled mounting
holes exist to install the Ruckus
Undersurface Rail Kit.
1. Determine the desired location to
mount the undersurface tote. A
two-part undersurface slide rail kit
must be installed to support the tote,
and it consists of a left- and
right-hand pair. The slide rail pair
must be mounted square to the table
right-hand
slide rail
Figure 2
Assembly Instructions
Ruckus
Tote Storage
®
Undersurface Rail Kit
July 2019
edge and the front mounting holes
for the slide rails must be located
1
/
" back from the tabletop front
1
8
edge. Mounting holes of each slide
rail must also be positioned 14" apart
(Figure 1).
2. Locate and identify the left-and
right-hand slide rails, then orient
them as shown, correctly positioned
for installation. The openings on the
slide rails must face each other and
the V-shaped openings must face
the front, "user side" of the tabletop
(Figure 1).
Important: Positioning the first slide
rail straight to the sides and/or square
to the table front edge is important.
Use a carpenter's square, or a tape
measure to accurately measure from
the side of the tabletop to the side
of the slide rail's mounting bracket
to assure that the slide rail aligns
straight before marking for drilling.
pilot
holes
tabletop
1
#10 x / "
2
phillips
screws
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
3. If holes are not pre-drilled on the
under side of the tabletop, skip to
step 4. If holes are pre-drilled on the
underside of the tabletop, position
the left-hand slide rail straight under
the tabletop, centering the mounting
slots over the pilot holes, then
secure using three #10 x
screws. Take care to keep the slide
rail straight, and to not over-tighten
the screws, then proceed to step 12
on the next page (Figure 2).
4. Use a tape measure and pencil to
locate and mark the front pilot hole
location of the left slide rail to the
underside of the tabletop. The marked
location must be 1
front, "user side" of the tabletop.
5. Carefully drill a
hole under the tabletop at the center
of the marked location using a power
drill. Take care to not drill too deep,
piercing through the tabletop
(Figure 1).
6. Position one slide rail under the
tabletop (left-hand shown). Center
the slide rail's front mounting slot
over the pilot hole, then loosely
secure using one #10 x
screw.
7. Using the mounted slide rail as a
template, align the slide rail bracket
to be square to the "user side" edge
of the table by measuring, or by
using a carpenter's square. Mark the
two remaining mounting slots clearly
left-hand
on the underside of the tabletop.
slide rail
8. Carefully drill a
hole under the tabletop at the center
of each remaining marked mounting
slot location using a power drill. Take
care to not drill too deep, piercing
through the tabletop (Figure 1).
9. Assure that the slide rail is square
to the front edge and secure using
two #10 x
/
" Phillips screws. Take
1
2
care to keep the slide rail straight,
and to not over-tighten the screws
(Figure 2).
/
" Phillips
1
2
/
" back from the
1
8
/
" diameter pilot
1
8
/
" Phillips
1
2
/
" diameter pilot
1
8
