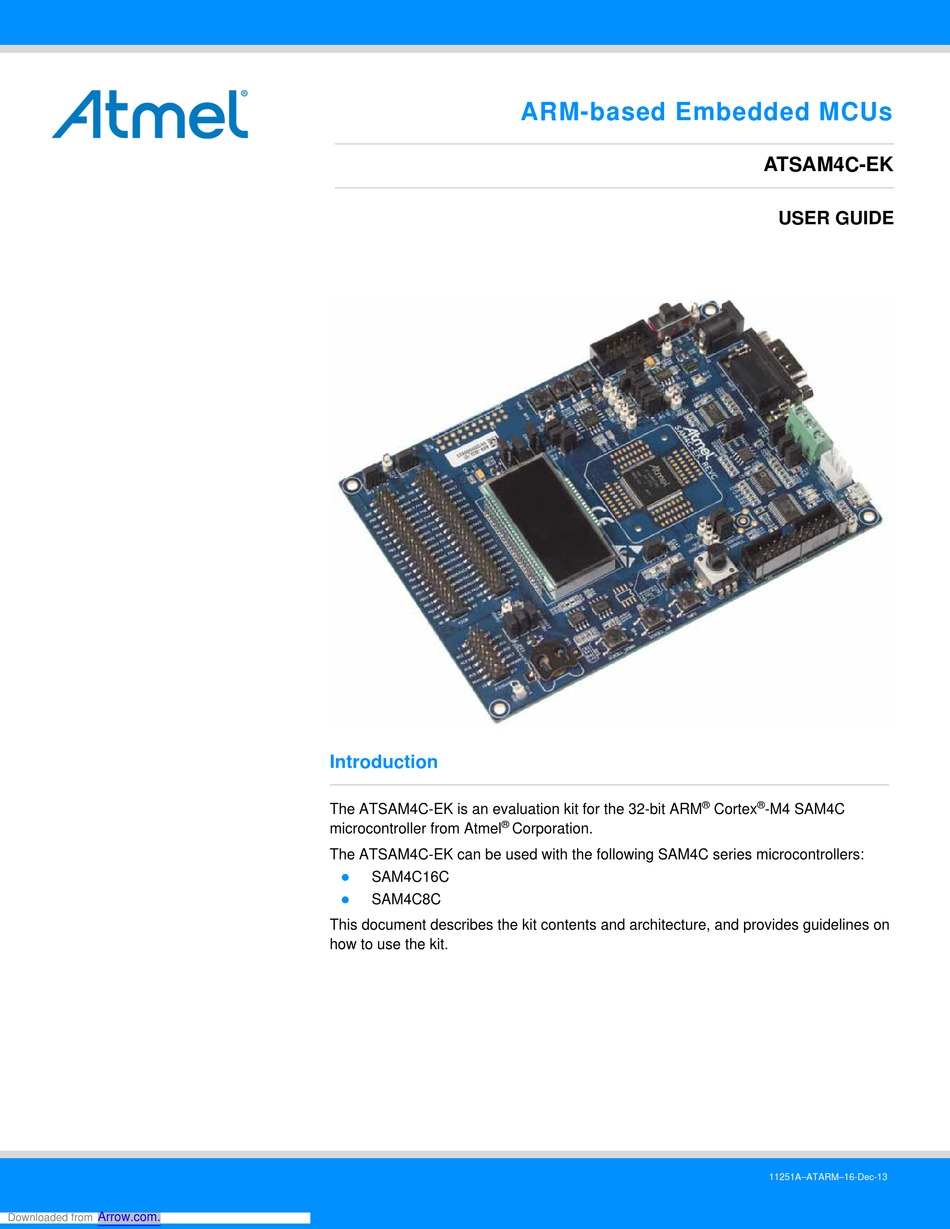

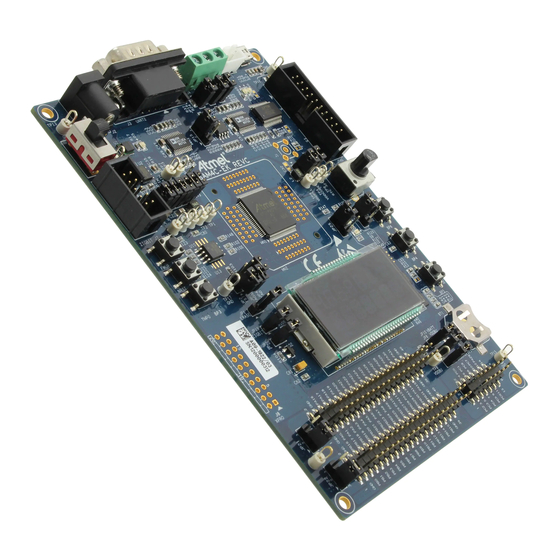

Introduction

The ATSAM4C-EK is an evaluation kit for the 32-bit ARM
®
microcontroller from Atmel
The ATSAM4C-EK can be used with the following SAM4C series microcontrollers:
SAM4C16C
SAM4C8C
This document describes the kit contents and architecture, and provides guidelines on
how to use the kit.
ARM-based Embedded MCUs
Corporation.
ATSAM4C-EK
USER GUIDE
®
®
Cortex
-M4 SAM4C
11251A–ATARM–16-Dec-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATSAM4C-EK and is the answer not in the manual?

Questions and answers

Related Manuals for Atmel ATSAM4C-EK

Summary of Contents for Atmel ATSAM4C-EK

  • Page 1: Introduction

    The ATSAM4C-EK is an evaluation kit for the 32-bit ARM Cortex -M4 SAM4C ® microcontroller from Atmel Corporation. The ATSAM4C-EK can be used with the following SAM4C series microcontrollers:  SAM4C16C  SAM4C8C This document describes the kit contents and architecture, and provides guidelines on how to use the kit.

  • Page 2: Contents

    One 3V Lithium Battery type CR1225   Cables One serial RS232 cable   One micro A/B-type USB cable  Welcome letter Reference documents  Atmel SAM4C Series Datasheet (http://www.atmel.com/images/atmel_11102_smartenergy_sam4c16-c8_datasheet.pdf) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Downloaded from Downloaded from...

  • Page 3: Table Of Contents

    ATSAM4C-EK Schematics ........

  • Page 4: Evaluation Kit Specifications

    Avoid touching the component pins or any other metallic element on the board. Battery The ATSAM4C-EK ships with a 3V coin battery. This battery is not required for the board to start up as long as Jumper JP8 is closed.

  • Page 5: Power Up

    After boot up, designers can run sample code or their own application, on the development kit. Users can download sample code and get technical support from the Atmel website. The ATSAM4C-EK is supported by the Atmel Software Framework (ASF) (http://www.atmel.com/tools/AVRSOFTWAREFRAMEWORK.aspx).

  • Page 6: Evaluation Kit Hardware

    Evaluation Kit Hardware Overview This section introduces the Atmel SAM4C Evaluation Kit design. It introduces system-level concepts, such as power distribution, memory, and interface assignments. The Atmel SAM4C16C and SAM4C8C microcontrollers are system-on-chip solutions for smart energy applications, built around two high-performance 32-bit ARM Cortex-M4 RISC processors. These devices operate at a maximum speed of 120 MHz and feature up to 1 Mbyte of embedded Flash, 152 Kbytes of SRAM and on-chip cache for each core.

  • Page 7: Equipment List

      1 blue LED 1 green LED  3.2.2 Interface Connection The ATSAM4C-EK board includes hardware interfaces such as:  1 RS232/RS485 (USART0 RX, TX, RTS, CTS) connected to: 9-way male D-type RS232 connector   3-pin connector ...
  • Page 8 Figure 3-2. Annotated ATSAM4C-EK Board Layout RS232 Interface RS485 Interface Debug Interface Power Supply Power Supply JTAG Interface Zigbee Interface ATMEL SAM4C16 System Buttons ATMEL Custom LCD User Buttons XPRO Interface Battery Coin Cell PIO Extension PIO Metering PIO Extension...

  • Page 9: Function Blocks

    Function Blocks 3.3.1 Processor The ATSAM4C-EK board is equipped with a SAM4C16 device in an LQFP100 package. Figure 3-3. SAM4C Processor R1.R2 should close to SAM4C. Do Not Populate PA30 0R/DNP XOUT PA30/XOUT PA31/XIN PA31 PB10 PB10 R1 0R/DNP PB11...
  • Page 10 JTAG reset from an in-circuit emulator 3.3.4 Power Supplies The ATSAM4C-EK board evaluation and development platform embeds all the necessary power rails required for the SAM4C processor and peripherals. The ATSAM4C-EK board can be supplied by either a 5V DC block through input J2 (see...
  • Page 11 Test points TP8 and jumper JP8/JP10 are used to perform voltage and current measurements. Figure 3-7. Backup Battery Schematic VDDIN VDDBU BAT54C BAT54C JP10 VBATT 2.2µF 100nF VDDBU ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 12: Embedded Memories

    (SDA) VDDMAIN 100nF AT24C1024B ADDR: 0X50 3.4.2 SPI Serial Flash The ATSAM4C-EK embeds one serial Flash device AT25DFxx or AT45DBxx connected through the SPI. (The AT25DF321A is mounted by default.) Figure 3-9. SPI Serial Flash Schematic VDDIN R100 SPI0_MOSIC R101...
  • Page 13 Adesto AT45DB Series Devices Adesto AT25DF Series Devices AT45DB64D2-CNU AT25DF641A-SH AT45DB321D-MWU AT25DF321A-SH AT45DB131D-SS AT25DF161-SH AT45DB081D-SS AT25DF081-SSH AT45DB041D-SS AT25DF021-SH AT45DB021D-SS – AT45DB011D-SS – ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...

  • Page 14: Communication Interfaces

    JP14 PA15 100nF (CTS2) PA14 (RTS2) PA10 (TXD2) PA9_485 JP16 JP15 120R JP17 FGND Do Not Populate PA9_232 3.3K/DNP ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...

  • Page 15: Debug Interfaces

    3.6.1 JTAG/ICE The ATSAM4C-EK includes a JTAG interface port to provide debug level access to the system-on-chip. The JTAG port is a 20-pin, dual-row, 0.1-inch male connector. This port provides the required interface for in-circuit emulators such as the ®...

  • Page 16: Extend Interfaces

    Atmel RZ600 module  Atmel REB233-XPRO module 3.7.1 RZ600 Interface  The RZ600 interface connects with Atmel modules used for ZigBee communication platforms that are equipped with a 10-pin HE10 male connector. Figure 3-15. RZ600 Interface Schematic J7 J7 PA17...
  • Page 17 3.7.2 REB233-XPRO Interface The XPRO interface connects with new Atmel modules used for XPRO platforms that are equipped with a 20-pin HE14 male connector. Figure 3-16. XPRO Interface Schematic Do Not Populate HE14 100-mil right angled male DNP PB23 (ID_DATA)

  • Page 18: Lcd Display

    LCD Display The ATSAM4C-EK board is equipped with one LCD segment interfaced with the SAM4C device through the LCD controller. Note that only certain segments (highlighted in blue in Figure 3-17 on page 18) are usable without using U11 and U12 analog switches or unpopulated 0 ohm resistors.
  • Page 19 A6-L A6-m A0-f A0-e A0-d A5-h A5-i A5-k A5-n A0-a A0-b A0-c A5-f A5-e A5-d A0-g A0-j A0-L A0-m ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 20 PB13 PB12 SEG29 SEG30 PB11 PB10 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 PA28 PA27 SEG37 SEG38 PA26 PA23 SEG39 ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 21: Analog I/O

    One potentiometer VR1 multi-turn 10K Ω is connected to the jumper JP4. If JP4 is closed, this analog reference is available on analog input PA4. Figure 3-20. Analog Input Schematic VDDIN (Analog input) 10nF ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 22: Cryptoauthentication (Optional)

    3.9.3 Temperature Sensor The Atmel AT30TS75 temperature sensor converts temperatures from -40°C to +125°C to a digital word and provides a typical accuracy of ±0.5°C over the operating temperature range of 0°C to +85°C. The device is factory calibrated and requires no external components to help provide a cost effective solution.

  • Page 23: Leds And Buttons

    3.11 LEDs and Buttons The ATSAM4C-EK is equipped with two user push buttons and three LEDs. 3.11.1 Discrete LEDs Indicators on the main board include three discrete LEDs:  1 blue LED connected to a PIO  1 amber LED connected to a PWM output ...

  • Page 24: Miscellaneous I/O

    This board includes an additional connector which allows connecting to an external board through the SPI 1 port. Figure 3-26. Connector Schematic VDDMAIN JP23 R139 R141 (TXD1) R140 R142 (RXD1) R143 R144 R145 PA29 (MCLK) PIOsense ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 25: Pio Usage

    – NWAIT SEG23 – – MCLK (ATSense) PA30 PCK1 – – XOUT XOUT – PA31 PCK0 – – – ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 26 PB29 – – SEG47 – – PB30 – – SEG48 – – PB31 – – A0–NBS0 SEG49/AD5 – – ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 27 – – LED Amber PWM2 SPI1_NPCS3 – – – – LED Blue PWM3 – – – ERASE – Jumper Erase ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 28: Connectors

    Connectors 3.15.1 Power Supply Connector The ATSAM4C-EK is equipped with an ACDC wall adapter that can be connected to a J2 connector (described below). The maximum input voltage that can be applied on this connector must be lower than 6V.
  • Page 29 TDO JTAG TEST DATA OUTPUT connected to TDO on target CPU. nSRST RESET Active-low reset signal. Target CPU reset signal This pin is not connected in SAM-ICE This pin is not connected in SAM-ICE ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 30 1, 4, 6, 9 Not Connected RS232 Serial Data Output Signal RS232 Serial Data Input Signal Common Ground Request To Send - Not Used Clear To Send - Not Used ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 31 Micro AB USB Connector Pinout Signal Name Description VBUS 5V Power Data Minus Data Plus On The Go Identification Common Ground 6, 7, 8, 9 Shield Mechanical Pins ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 32 /RST IRQ0 Interrupt Request Interrupt Request IRQ1 SLP_TR SLP_TR SPI Chip Select MOSI SPI MOSI SPI MISO MISO SCLK SPI CLK Power Supply ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 33 Function Signal Name Signal Name Function 3.3V or 5V – – 3.3V or 5V Ground Ground – PA16 – – PA17 – ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 34 Power Power – 3.3V 3.3V – – – – – – – – – – – PA29 – – ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 35: Evaluation Kit Firmware Demonstration

    Every thirty (30) seconds, the temperature (using the AT30TS75) is measured and displayed in °C and in °F. Note: On the ATSAM4C-EK, the voltage measured is the VDDIO voltage minus the forward voltage of the diode in the BAT54C (D4).
  • Page 36 Tamper events are registered without waking up the board. Up to 15 tamper events can be registered. To wake up the board, press BP1 (FWUP). Upon start-up, the number of tamper events and time-stamping of the tamper events are displayed on the LCD. ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com.

  • Page 37: Atsam4C-Ek Design Files

    ATSAM4C-EK Design Files ATSAM4C-EK Schematics This section contains the schematics for the SAM4C Evaluation Kit (Rev. C).  Main page with Block Diagram  Information regarding the design  SAM4C Microcontroller and its crystals, decoupling capacitors and analog inputs ...
  • Page 38 Figure 5-1. ATSAM4C-EK Schematic (Page 1 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 39 Figure 5-2. ATSAM4C-EK Schematic (Page 2 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 40 Figure 5-3. ATSAM4C-EK Schematic (Page 3 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 41 Figure 5-4. ATSAM4C-EK Schematic (Page 4 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 42 Figure 5-5. ATSAM4C-EK Schematic (Page 5 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 43 Figure 5-6. ATSAM4C-EK Schematic (Page 6 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 44 Figure 5-7. ATSAM4C-EK Schematic (Page 7 of 7) ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 45: Atsam4C-Ek Layout

    Layer 6: Bottom Layer (Figure 5-13 on page  TOP Components Placement (Figure 5-14 on page  BOTTOM Components Placement (Figure 5-15 on page Figure 5-8. ATSAM4C-EK Layout: Top Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 46 Figure 5-9. ATSAM4C-EK Layout: Ground Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 47 Figure 5-10. ATSAM4C-EK Layout: Internal Signals 1 Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 48 Figure 5-11. ATSAM4C-EK Layout: Internal Signals 2 Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 49 Figure 5-12. ATSAM4C-EK Layout: Power Supplies Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 50 Figure 5-13. ATSAM4C-EK Layout: Bottom Layer ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 51 Figure 5-14. ATSAM4C-EK Layout: TOP Components Placement ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 52 Figure 5-15. ATSAM4C-EK Layout: BOTTOM Components Placement ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 53: Revision History

    Revision History Table 6-1. Revision History Doc. Rev. Date Changes 16-Dec-2013 First issue ATSAM4C-EK [USER GUIDE] 11251A–ATARM–16-Dec-13 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 54 ARM®, Cortex®, and others are registered trademarks or trademarks of ARM Ltd. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
