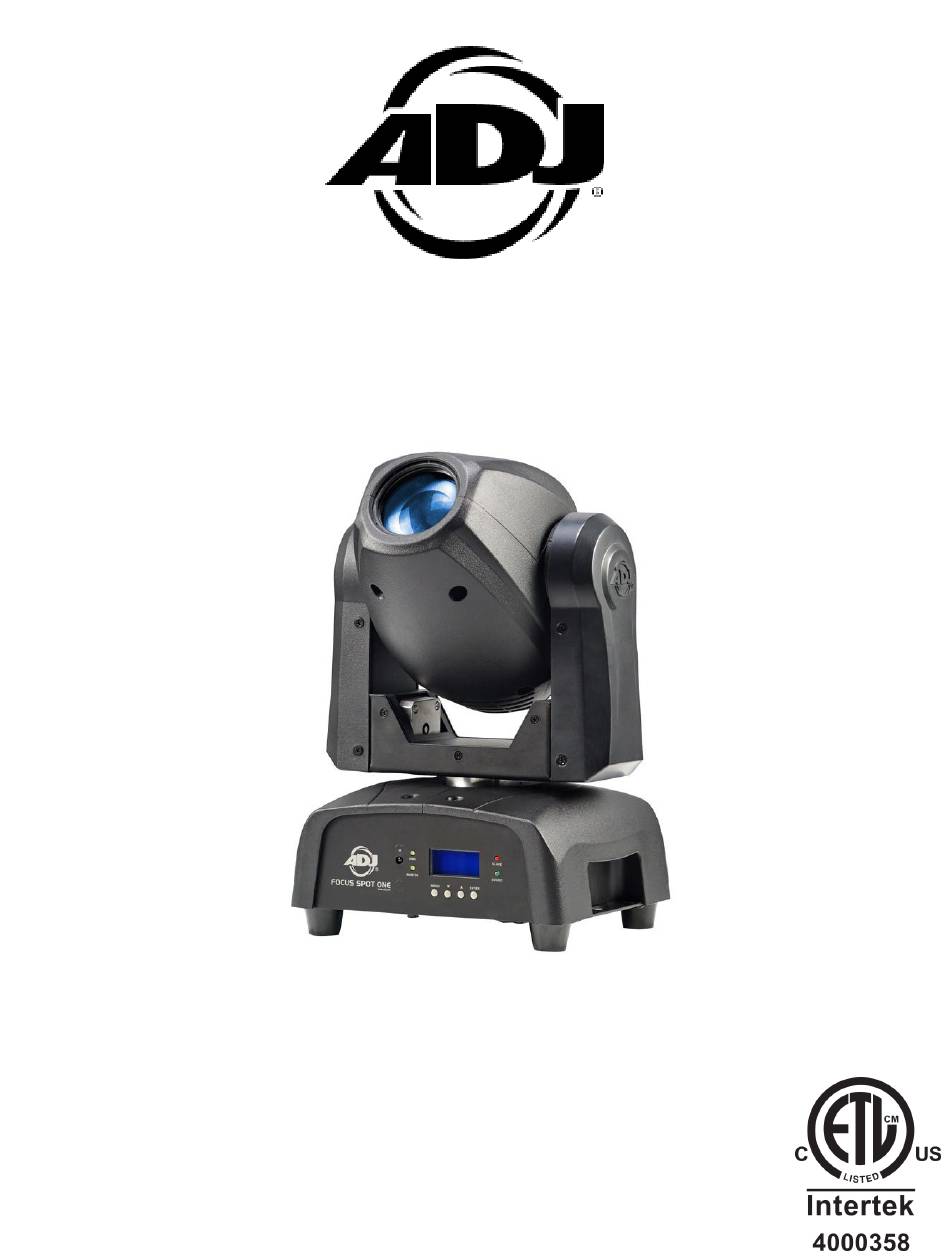

  • Page 1 FOCUS SPOT ONE User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: General Information

    Introduction: The Focus Spot One is a DMX intelligent, moving head, mini LED wash. The Focus Spot One can operate as a stand alone fixture or in a Primary/Secondary set up. The Focus Spot One has three operating modes;...

  • Page 4: General Instructions

    Focus Spot One Warranty Registration The Focus Spot One carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 5: Safety Precautions

    B. The appliance has been exposed to rain or water. C. The appliance does not appear to operate normally or exhibits a marked change in perfor- mance. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 5...
  • Page 6 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 6...
  • Page 7 The installation should be checked by a skilled person once a year. The Focus Spot One is fully operational in three different positions: hanging upside-down from a ceiling or trussing, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
  • Page 8 Screw one clamp via an M12 screw and nut to the included bracket. Attach the bracket using the omega locks to the bottom of the Focus Spot One. Attach and pull the safety-cable through one of the safety holes located on the bottom base and over the trussing system or a safe fixation spot.
  • Page 9 Focus Spot One CAD Drawing ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 9...

  • Page 10: Base Layout

    5. DMX In/Out: 3-pin XLR connectors for DMX 512 operation. 6. Power In/Out: Connectors for power input/output. 7. Fuse (T6.3 Amp): Protects the unit from over-voltage or short circuit. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 10...
  • Page 11 Data Cable (DMX Cable) Requirements: The Focus Spot One can be controlled via DMX-512 pro- tocol. The Focus Spot One has 2 DMX channel modes; 15 channel mode & 17 channel mode. The DMX address is set electronically using the controls on the front panel of the unit. Your unit and your DMX controller require an approved DMX-512 110 Ohm Data cable for data input and data output (Figure 1).
  • Page 12 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The chart below details a proper cable conversion ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 12...
  • Page 13 Focus Spot One 15 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 13...
  • Page 14 Focus Spot One 15 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 14...
  • Page 15 Focus Spot One 15 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 15...
  • Page 16 Focus Spot One 17 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 16...
  • Page 17 Focus Spot One 17 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 17...
  • Page 18 Focus Spot One 17 Channel Mode ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 18...
  • Page 19 Focus Spot One System Menu ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 19...
  • Page 20 Focus Spot One System Menu Software Version > 1.3 ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 20...

  • Page 21: System Menu

    “0” is random mode. Use the UP or DOWN buttons to find your desired show. 3. When you have found your desired show press ENTER, then press and hold the MENU button for at least 3 seconds to activate. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 21...
  • Page 22 Last State - If the DMX signal is lost the fixture will stay in the last DMX set up. If power is applied and this mode is set, the unit will automatically go into the last DMX set up. 3. Press ENTER to confirm your desired set up. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 22...
  • Page 23 1. Press the MENU button until “Software Version” is displayed. Press the ENTER button and the software vesion will be displayed. 2. Press the MENU button to leave this function. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 23...
  • Page 24 If you do not wish restore the settings, select “No” and press Enter. Reset - Use this function to reset the motors. 1. Press the MENU button until “Reset” is displayed, press ENTER. 2. The fixture will now reset. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 24...

  • Page 25: Home Adjustment Menu

    Offset” is displayed, press ENTER. 2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press the MENU button for one second to exit. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 25...

  • Page 26: Operation

    A DMX controller allows you to create unique programs tailored to your individual needs. 1. The Focus Spot One has 2 DMX channel modes; 15 channel mode and 17 channel mode. See the 15-Channel Mode and 17-Channel Mode sections of this manual for detailed description of the DMX values and traits.

  • Page 27: Primary-Secondary Set Up

    After exceeding these maximum values, a new power outlet will need to be used to operate additional fixtures. DO NOT mix fixture models. Fixtures used must all be of the same manufacturer and model. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 27...

  • Page 28: Remote Operation

    SOUND ON & OFF - These buttons activate and deactivate the sound active mode. SHOW - This activates the show mode. Use buttons 1-4 to select your desired show. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 28...

  • Page 29: Changing The Gobo

    4. Gently and carefully remove the retainer ring. After the retainer ring is removed, carefully remove the gobo. 5. Change the gobo and replace the retainer ring. Carefully slide the gobo holder back into the housing slot. 6. Reassemble the unit. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 29...
  • Page 30 Focus Spot One Removing the Head Casing ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 30...

  • Page 31: Target Mode

    Focus Spot One Target Mode TARGET MODE MAX PAN DEGREES TILT DEGREES ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 31...
  • Page 32 Focus Spot One Photometric Chart Focus Spot One Dimmer Curve Chart ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 32...

  • Page 33: Fuse Replacement

    Unit does not respond to sound: Low frequencies (bass) should cause the unit to react to sound. Quiet or high pitched sounds, or tapping on the microphone, may not activate the unit. ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 33...

  • Page 34: Warranty

    ADJ Products, LLC factory unless prior written authorization was issued to pur- chaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruc- tion manual.

  • Page 35: Specifications

    A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands support@adj.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 35...
