FOCUS FLEX L7
User Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FOCUS FLEX L7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADJ FOCUS FLEX L7

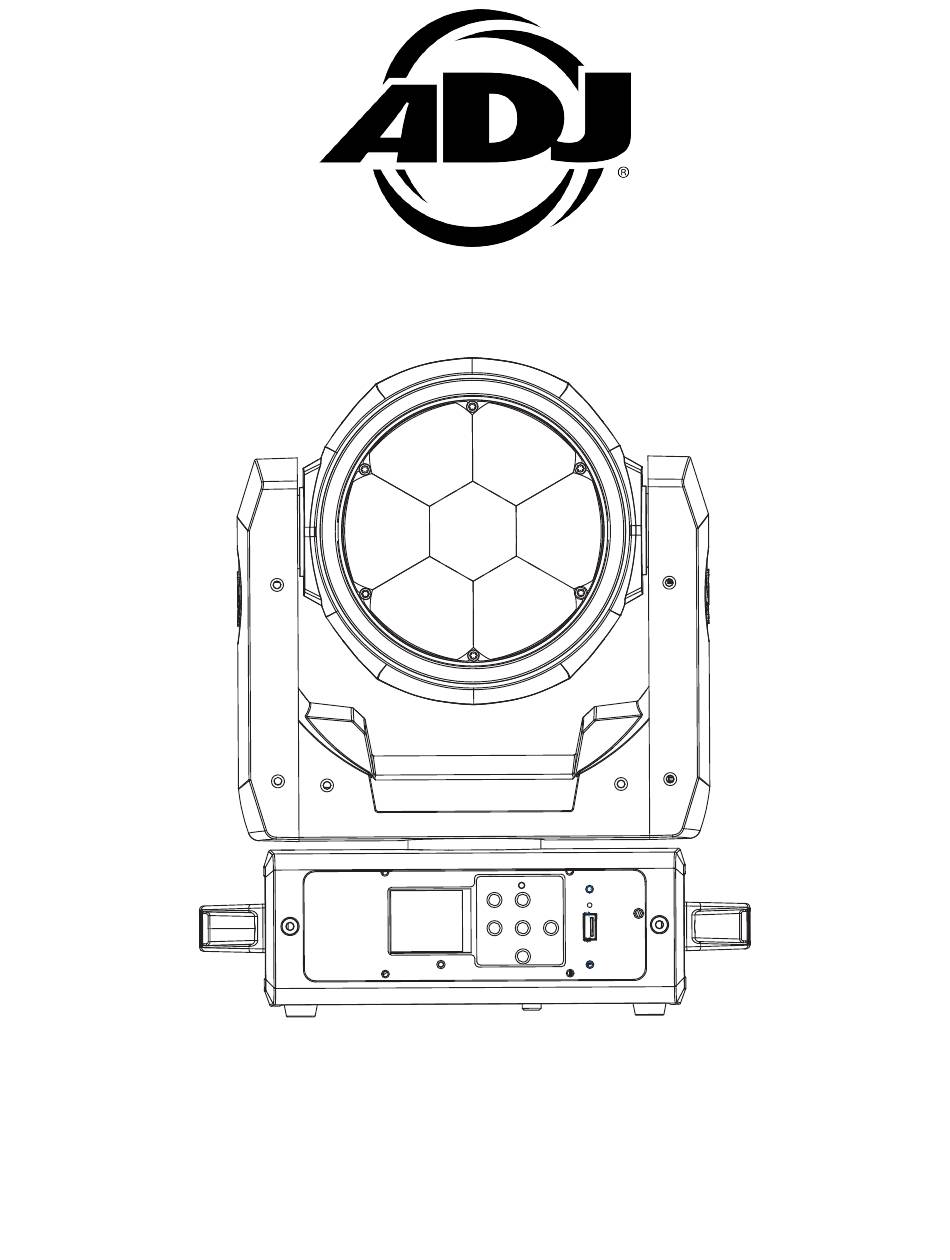

  • Page 1 FOCUS FLEX L7 User Instructions...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Virtual Swatch Colors Color Macro Chart Fixture Installation DMX Set Up DMX Addressing Remote Device Management (RDM) System Menu Aria Setup Dimmer Curve DMX Traits: Channel Functions &...
  • Page 4 G E N E R A L I N F O R M AT I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate these products. These instructions contain important safety and use information. UNPACKING The products in this kit have been thoroughly tested and have been shipped in perfect operating condition.
  • Page 5 All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 6 To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts included with this fixture should be used for installation.
  • Page 7 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.
  • Page 8 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 9 OVERVIEW 7X RGBL LEDs Wifly Fuse: T10A LCD Menu 5-Pin DMX Antenna Service Port Display In/Out Locking Power Menu Connector In/Out Controls...
  • Page 10 V I R T U A L S WAT C H C O L O R S VIRTUAL GEL SWATCH BOOK COLORS Filter Filter Filter Value Name Value Name Value Name Number Number Number Pale Yellow Pink Sky Blue Straw Medium Pink Pale Navy Blue Gold Tint...
  • Page 11 C O L O R M A C R O C H A R T RGBL COLOR INTENSITY RGBL COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE LIME RED GREEN BLUE LIME Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140...
  • Page 12 F I X T U R E I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep fixture at least 7.9in. (0.2m) away from any flammable materials, decorations, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 13 F I X T U R E I N S TA L L AT I O N NOTICE: The suitable environmental temperature for this lighting fixture is between -20˚ C to 40˚ C. Do not place this lighting fixture in an environment where the temperatures are under or above the temperatures stated above.
  • Page 14 F I X T U R E I N S TA L L AT I O N When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the unit must be secured with a secondary safety attachment, e.g.
  • Page 15 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 16 D M X A D D R E S S I N G All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...
  • Page 17 REMOTE DEVICE MANAGEMENT (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, and allows the DMX systems of the fixtures to be modified and monitored remotely.
  • Page 18 • ON1: The display screen and control panel keys automatically lock after a certain period of inactivity, which can be set under Personality > Display > Screen Saver Delay. To unlock, press UP, DOWN, UP, DOWN, ENTER in that order. SERVICE PORT / SOFTWARE UPDATES Please contact ADJ customer support or latest software and updating instructions.
  • Page 19 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) Menu Sub Menu Description DMX Address 001 - XXX Basic 16 Standard 25 Extended 34 Extended 42 DMX Channel Extended 50 Mode Standard RGBW 26 Standard CMY 25 Extended CMY 28 User Mode...
  • Page 20 S Y S T E M M E N U Menu Sub Menu OPTIONS / VALUES (Default Settings in BOLD) Description Standard Zoom Speed Fast Mode 1 Zoom Mode Mode 2 Standard max LED output mode LP Mode 1 LED Power Mode LP Mode 2 Regulated LED output with 8500K target CCT...
  • Page 21 S Y S T E M M E N U Menu Sub Menu Description Pan 000-55 Tilt 000-255 Red 000-255 Effect Adjust Green 000-255 (Calibration) Blue 000-255 LIME 000-255 Pass- Service code Color Enable / Disable When enabled, unit uses calibrated data. When Calibration disabled, unit will output to fullest.
  • Page 22 S Y S T E M M E N U Menu Sub Menu Description Power On Time xxxxxx Hours Fixture Lifetime P-On Time-R xxxxxx Hours P-On Time-Reset LED On Time xxxxxx Hours Total LED Time LED On Time-R xxxxxx Hours LED Hours Reset Passcode 050 Current...
  • Page 23 A R I A S E T U P BEFORE SETTING THE ARIA CHANNEL ON ANY ARIA COMPATIBLE FIXTURE, MAKE SURE THE SOURCE ARIA TRANSCEIVER DEVICE IS OFF. With this feature you are able to control the unit with DMX without the use of XLR cables. Your DMX controller must be connected to a Aria Transceiver to use this function.
  • Page 24 A R I A S E T U P INSTALLATION GUIDELINES For best results, position the fixture so that the display screen is oriented in the direction of the transmitter device or remote. Aria signal can penetrate walls, glass, metal, and most objects. However, there are many factors that can effect and/or interrupt the signal, including people.
  • Page 25 D I M M E R C U R V E 100% 100% 100% 100% DMX % DMX % DMX % DMX % LINEAR SQUARE INVERSE SQUARE S-CURVE...
  • Page 26 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Basic Std Ext Std. Ext. Values Functions RGBW 000-255 PAN 8bit 540/630 Degrees 000-255 PAN FINE 16bit 000-255...
  • Page 27 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Basic Std Ext Std. Ext. Values Functions RGBW COLOR TEMPERATURE RED to GREEN No Function 001-255 Shift CT Red to Green...
  • Page 28 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Basic Std Ext Std. Ext. Values Functions RGBW INTERNAL PROGRAMS 000-009 No Function 010-019 Program 1...
  • Page 29 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Basic Std Ext Std. Ext. Values Functions RGBW SPECIAL FUNCTION (continued) 040-040 1190 Hz LED Refresh Rate 041-041 1210 Hz LED Refresh Rate...
  • Page 30 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S Basic Std Ext Std. Ext. Values Functions RGBW SPECIAL FUNCTION (continued) 186-189 Fan Mode Mute (hold 3s) 190-193 Enable Zoom Mode 2 (hold 3s)
  • Page 31 P I X E L M A P ERROR CODES Print Error Description Message Error code PAN, TILT, Zoom, LED Temp, Base Temp, Head Fan, Base Fan...
  • Page 32 P O W E R L I N K I N G This feature allows multiple units to be linked together by way of the power input and output sockets. The maximum number of devices that can be connected in this manner is as follows: •...
  • Page 33 S P E C I F I C AT I O N S Source: Pan/Tilt: • 7 x 40-Watt RGBL LEDs (50,000 hr.) • Pan: 540/630 degrees • CRI: 83.4 • Tilt: 250 degrees • CT: 2700K ~ 10,000K Connections: •...
  • Page 34 D I M E N S I O N S Drawings not to scale. 9.8in. [250.0mm] 6.2in. [158.3mm] 11.5in. [292.0mm] 7.0in. [178.8mm]...
