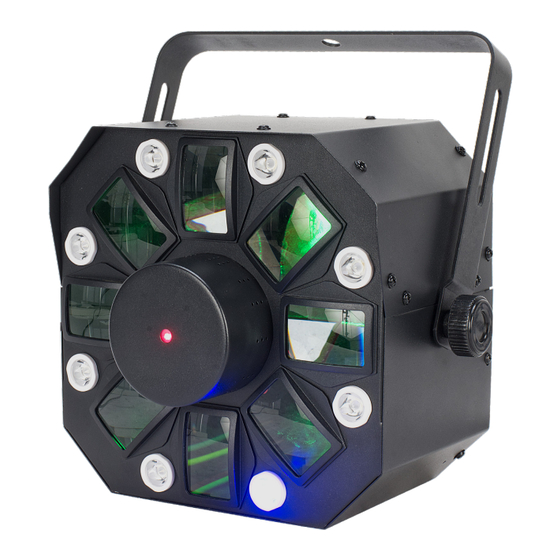

- Page 1 FURIOUS THREE RG User Instructions SKU#: FUR128 UPC#: 818651029314...
- Page 2 Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Laser Warning Overview Installation DMX Set Up DMX Addressing System Menu DMX Traits: Channel Functions & Values Dimmer Mode Chart Cleaning | Maintenance Specifications... -
Page 4: General Information
G E N E R A L I N F O R M AT I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate these products. These instructions contain important safety and use information. UNPACKING The products in this kit have been thoroughly tested and have been shipped in perfect operating condition. -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof. -
Page 6: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts included with this fixture should be used for installation. - Page 7 S A F E T Y G U I D E L I N E S This unit may “pop” the fuse if the maximum allotted load of 3 amps is reached. • To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture. •...
-
Page 8: Laser Warning
L A S E R WA R N I N G After completing setup, and before public use, test the laser to ensure proper function. Do not use if any defects are detected. Do not use if the laser emits only a few laser beams rather than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of laser intensity levels that exceed Class 3R. - Page 9 L A S E R WA R N I N G...
-
Page 10: Overview
OVERVIEW... -
Page 11: Installation
I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep fixture at least 7.9in. (0.2m) away from any flammable materials, decorations, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 I N S TA L L AT I O N CLAMP INSTALLATION This fixture features a mounting clamp attachment point, which is located on the mounting yoke, as well as a safety cable rigging point, located on the rear face of the unit near the power connection (see the illustration below).
-
Page 13: Dmx Set Up
D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. - Page 14 XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. 5-Pin XLR DMX Connectors: Some manufactures use 5-pin DMX- 512 data cables for DATA transmission in place of 3-pin.
-
Page 15: Dmx Addressing
D M X A D D R E S S I N G All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”... -
Page 16: System Menu
S Y S T E M M E N U CONTROL PANEL The device includes an easy to navigate system menu that can be accessed via a set of control buttons located on the back face of the device below the digital display. FUNC: Press to cycle through main menu options (Auto, Sound, Secd, DMX). -
Page 17: Dmx Traits: Channel Functions & Values
D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S ( 9 D M X C h a n n e l s ) Values Functions Mode... - Page 18 D M X T R A I T S : C H A N N E L F U N C T I O N S & VA L U E S ( 9 D M X C h a n n e l s ) Values Functions Automatic Speed, slow to fast (when CH2 is set to a DMX value...
-
Page 19: Dimmer Mode Chart
DIMMER MODE CHART Dimming Speed DMX Value Delay and Menu Display Time 0.1Sec. 0.2Sec. 0.3Sec. 0.4Sec. 0.5Sec. 0.6Sec. 0.7Sec. 0.8Sec. 0.9Sec. 1.0Sec. 1.5Sec. 2.0Sec. 3.0Sec. 4.0Sec. 5.0Sec. 6.0Sec. 7.0Sec. 8.0Sec. 9.0Sec. 10Sec. -
Page 20: Cleaning | Maintenance
C L E A N I N G A N D M A I N T E N A N C E DISCONNECT POWER BEFORE PERFORMING ANY CLEANING OR MAINTENANCE! CLEANING Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. -
Page 21: Specifications
SPECIFICATIONS • 3-FX-IN-1 dance party lighting effect: LED Moonflower, Wash and laser effects • Dozens of razor-sharp beams fill a dance floor, ceiling or wall • Moonflower: 5 x 3W (RGBWY) 5-in-1 LEDs • Wash: 6 x 3W (RGBY) Quad LEDs •... - Page 22 DIMENSIONS...
