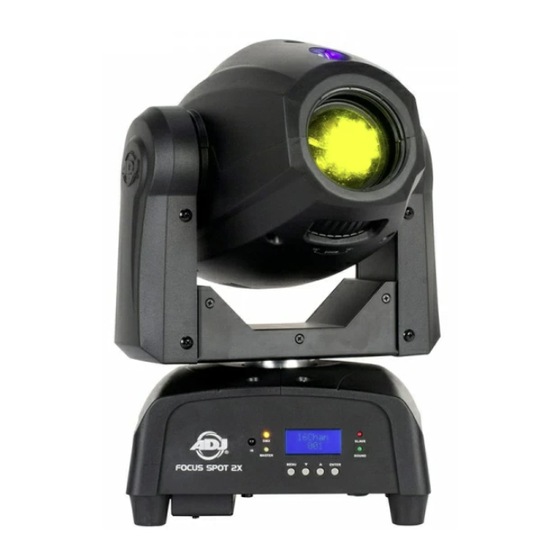

FOCUS SPOT 2X
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOCUS SPOT 2X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ FOCUS SPOT 2X

Summary of Contents for ADJ FOCUS SPOT 2X

  • Page 1 FOCUS SPOT 2X User Instructions...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    Gobo Replacement & Gobos Remove the Head Casing Dimensional Drawings Fuse Replacement I Multiple Unit Power Linking Trouble Shooting I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 2...

  • Page 4: Introduction

    Focus Spot 2X Introduction Unpacking: Thank you for purchasing the Focus Spot 2X by ADJ Products, LLC. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.

  • Page 5: Features I Warranty Registration I Installation

    Focus Spot 2X Warranty Registration The Focus Spot 2X carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.

  • Page 6: Safety Guidelines

    B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 5...
  • Page 7 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 6...
  • Page 8 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 9: Overview

    5. Slave Active LED 1 2 3 6. DMX Active LED 7. Manual Zoom Control 8. 3-Pin DMX In/Out 9. powerCON In/Out 10. Fuse (3.15A) 9 10 ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 8...
  • Page 10 These installaiton should be checked by a skilled person once a year. The Focus Spot 2X is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).

  • Page 11: Installation

    Screw one clamp via a M12 screw and nut into the bracket. Attach the bracket to the respective holes located on the bottom of the Focus Spot 2X. Tighten and secure the bracket screws. Pull the safety cable through the opening(s) located on the base plate and over the trussing system or a safe fixation spot.

  • Page 12: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The Focus Spot 2X can be controlled via DMX-512 protocol. The DMX address is set on the front panel of the Focus Spot 2X. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1). We...
  • Page 13 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 12...

  • Page 14: Dmx Addressing

    In the case of the Focus Spot 2X, when in 16 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 17 (16 + 1), the third unit to 33 (17 + 16), and so on. (See the chart below for more details.)

  • Page 15: Dmx Modes & Values

    Counter-Clockwise Rotation Fast-Slow RGOBO (ROTATING GOBO): 000-127 Indexing 128-189 Clockwise Rotation Slow-Fast 190-193 Stop 194-255 Counter-Clockwise Rotation Fast-Slow PRISMS: 000-015 No Effect 016-135 Prism 1 136-255 Prism 2 ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 14...
  • Page 16 Random Show Sound Active SHOW SPEED: 000-255 Slow-Fast DIMMER MODES: 000-020 Standard 021-040 Stage 041-060 061-080 Architectural 081-100 Theatre 101-255 Default to Unit Setting PAN/TILT SPEED: 000-255 Fast-Slow ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 15...
  • Page 17 Disable Blackout with Gobo Change 130-139 Pan/Tilt Reset 140-149 Color Wheel Reset 150-159 Gobo Wheel Reset 160-169 Effect Reset 170-199 No Function 200-209 Reset All 210-255 No Function ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 16...

  • Page 18: System Menu

    DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MENU button. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 17...
  • Page 19 Current LED Temperature Fixture Time Current Fixture Time Firmware Version VX.X Current Software Version Pro Default On / Off Restore Factory Defaults Reset Yes / No Reset Motors ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 18...
  • Page 20 FIRMWARE VERSION - In this submenu you can check the current software version. FACTORY RESTORE - In this submenu you restore the factory (default) settings. RESET - In this submenu you can reset the motors. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 19...

  • Page 21: Master-Slave Set Up I Manual Zoom

    “zoom” wheel located on the bottom front of the moving head. Rotate the zoom wheel back and forth until you get your desired output. This wheel is used in conjunction with the focus channel in DMX mode as well. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 20...

  • Page 22: Uc Ir & Airstream Remote Control

    SOUND ON & OFF - These buttons activate and deactivate the sound active mode. SHOW - This activates the show mode. Use buttons 1-4 to select your desired show. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 21...

  • Page 23: Target Mode

    Tilt Movement Range = 135° Mode 2 Pan Movement Range = 140° Tilt Movement Range = 135° Mode 3 Pan Movement Range = 140° Tilt Movement Range = 135° Mode 4 ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 22...

  • Page 24: Dimmer Curve Chart

    Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 23...

  • Page 25: Gobo Replacement & Gobos

    6. Reassemble the unit. Focus Spot 2X Gobos Inner Diameter: 23.8mm Outer Diameter: 19mm Thickness: 0.2mm GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 GOBO 6 ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 24...

  • Page 26: Remove The Head Casing

    2. Flip the top cover back. located behind the UV LED. Screw 3. Carefully remove the lens. 4. Unscrew the 4 screws located on the other side. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 25...

  • Page 27: Dimensional Drawings

    Focus Spot 2X Dimensional Drawing 9.10” / 231mm 6.77” / 172mm 8.25” / 210mm 9.33” / 237mm 6.89” / 175mm 8.25” / 210mm ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 26...

  • Page 28: Fuse Replacement I Multiple Unit Power Linking

    3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 27...

  • Page 29: Limited Warranty (Usa Only)

    ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 30: Technical Specifications

    2 DMX Modes: 16/18 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - Focus Spot 2X User Manual Page 29...
