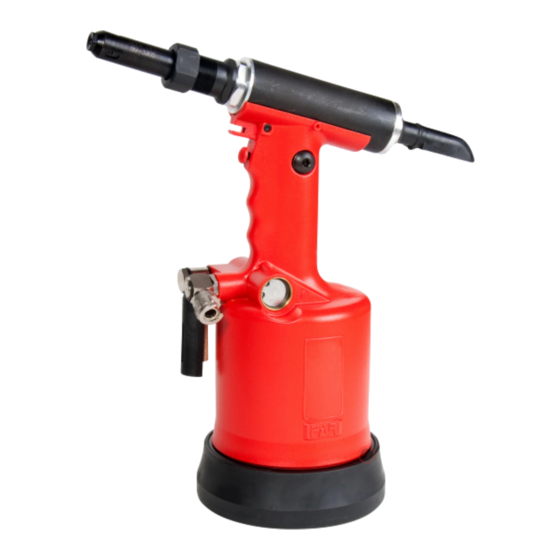

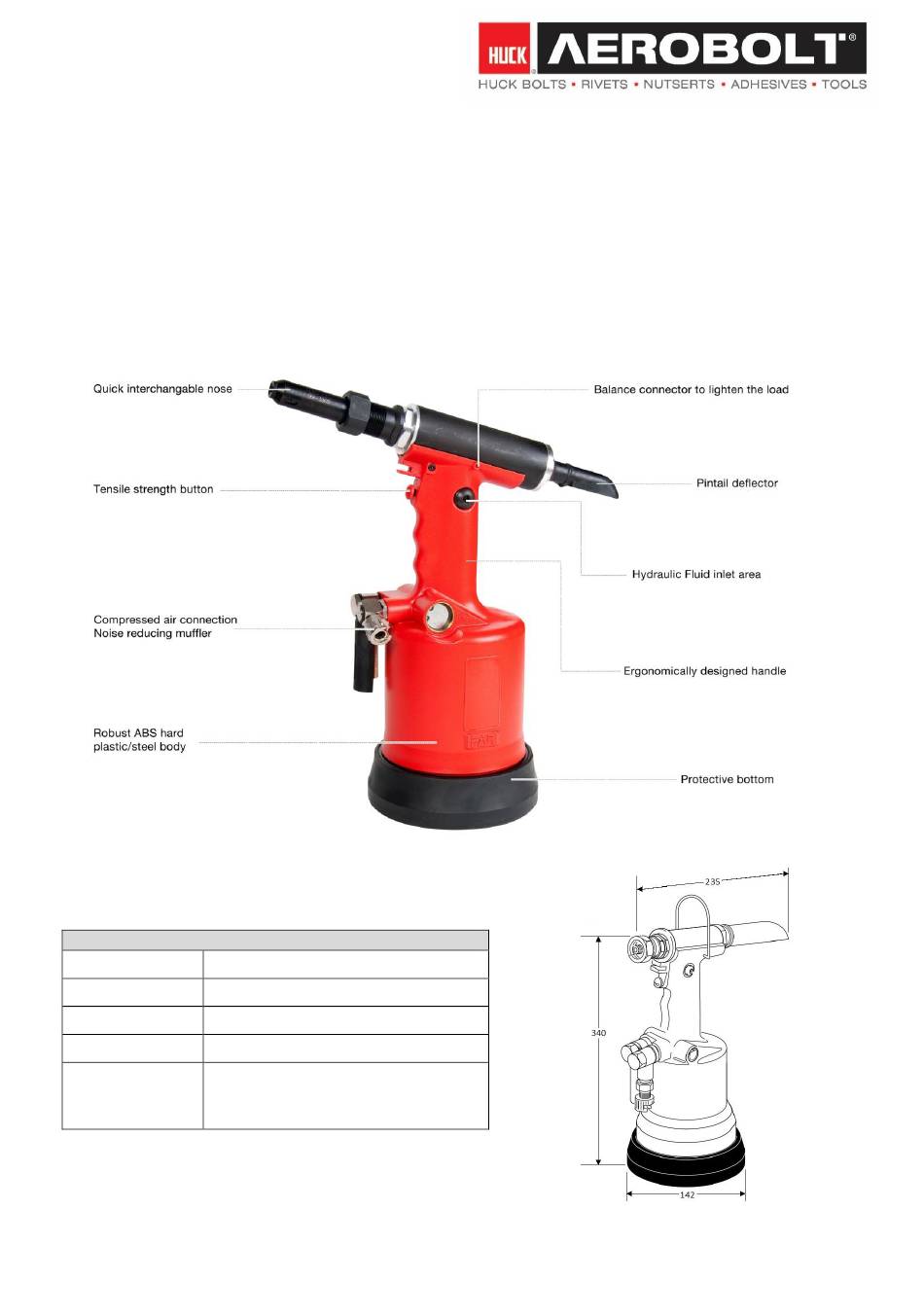

FAR® GUN – 10U05
Far® brand air gun for Huck bolts & Huck structural rivet diameters 4.8, 6.4 & 7.9mm* (3/16', 1/4' & 5/16')
The HG-10U05 is a light-weight production tool designed for the installation of Huck bolts and rivets. The
tool accepts a wide range of nose assemblies which can be quickly and easily changed covering diameters
sizes: 4.8mm (3/16"), 6.4mm (1/4") *plus 7.9mm (5/16") structural rivets, steel & aluminium only.

Specification

Weight
2.6Kg
Air Pressure
6 Bars (90-100 psi)
Stroke
19.5mm
Pulling Force
22.725Kn @ 6 bar (90-100psi)
Huck bolts & Huck rivets 4.8mm (3/16")
Fastener Capacity*
& 6.4mm (1/4") plus 7.9mm (5/16")
structural rivets in steel & aluminium only
* Nose assemblies sold separately.
Far Gun HG-10U05 comes with: Nosepiece adapter, wrench, air fitting,
oil bottle, mandrel deflector and manual.
