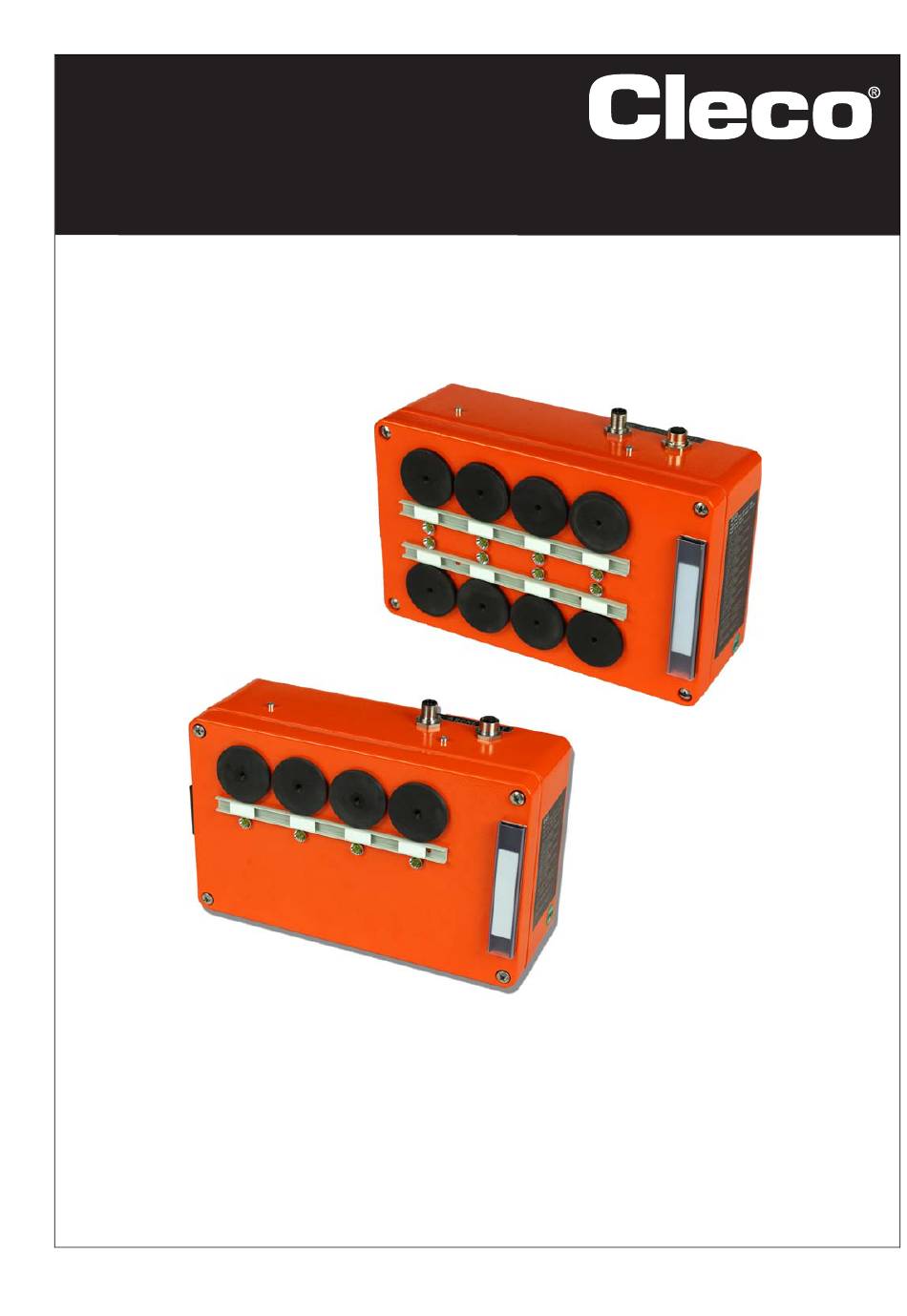

- Page 1 Instruction Manual P2268BA/EN 2015-10 Arcnet Socket Tray S133410, S133411 For additional product information visit our website at http://www.apextoolgroup.com...
- Page 2 Notes on this Instruction Manual This Instruction Manual is the Original Instruction Manual and • provides important instructions for safe and effective operation. • describes functionality and operation • serves as a lexicon for technical data. Symbols in the text: Application Linking group, combination of individual linking steps (links) Linking steps...
-
Page 3: Table Of Contents
Contents Safety Symbols ........................5 Safety instructions ....................... 5 Designated use ......................5 Product description Sizes ........................... 6 Before initial operation Necessary components....................6 Identifying and programming Arcnet address.............. 7 Connecting socket tray to control ................8 Adjusting inserts before installation ................8 Use case 1 –... - Page 4 P2268BA/EN 2015-10 08.02.2016 P2268BA-EN_2015-10_ArcStcknusstab_S133410-411IVZ.fm,...
-
Page 5: Safety
Safety Safety Symbols CAUTION! A symbol combined with the word CAUTION warns of a potentially hazardous situation for the health of personnel or damage to property or the environment. If this warning is not observed, injuries, property or environmental damage may occur. ATTEN- This sign warns of a potentially hazardous situation. -
Page 6: Product Description

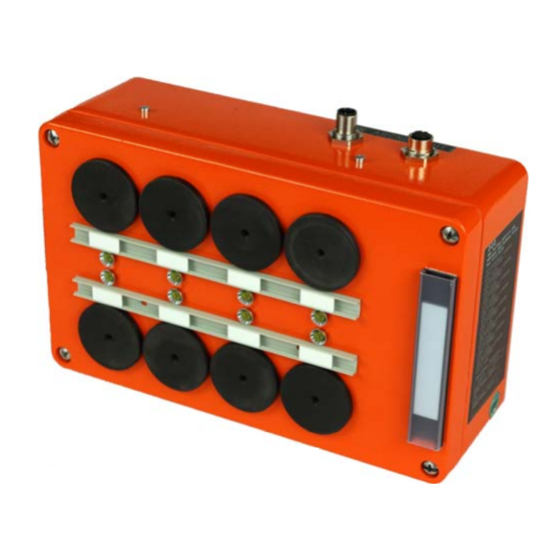

Depending on the version, the socket tray can have up to 4 or 8 sockets. Sizes Number of possible sockets Socket tray App selection S133410 S133411 Before initial operation The socket tray must be connected before commissioning on Arcnet. Necessary components... -
Page 7: Identifying And Programming Arcnet Address
Before initial operation Identifying and programming Arcnet address Each socket tray is supplied with a default address (110) which can be seen on the respective type plate. If only one socket tray is used, the default address is sufficient. The default address must be changed if several Arcnet components are connected to the system bus. -
Page 8: Connecting Socket Tray To Control
Before initial operation Connecting socket tray to control Connect the socket tray to the control by cable with control. S133408-××× Plug the terminator to the underside. If several Arcnet components are connected, plug the termi- nator to the last Arcnet partici- pant. -
Page 9: Use Case 1
Use case 1 – Controlling App/LG by socket removal Use case 1 – Controlling App/LG by socket removal Example: SW S168813 V1.4, 4x socket tray, Arcnet address 110 Inputs Outputs Remove socket – the order is not important. LED for the removed socket goes out. mPro400GC Programming •... -
Page 10: To Define Selection Mode
Use case 1 – Controlling App/LG by socket removal To define selection mode Select <Advanced> Tool Settings. Fig. 4-2 : Tool settings Select relevant Tool. Activate External Application / LG Selection Under Mode, select Socket Tray (see note on Page 12). ... -
Page 11: Defining Input/Output Signals
Use case 1 – Controlling App/LG by socket removal Fig. 4-3 System bus Back with <Navigator>. Select <Navigator> <Advanced> Controller Settings. Activate Display mPro button. Save settings with <Navigator>. Select <mPro>. Select <Main menu> <System Programming> Service > Programmable I/O mapping. ... - Page 12 Use case 1 – Controlling App/LG by socket removal Accept settings until Navigator menu appears. Fig. 4-4 Programmable I/O Mapping Only take one socket in mode Socket Tray or else the tool will be disabled. Seal unconnected inserts with a threaded pin. P2268BA/EN 2015-10 P2268BA-EN_b.fm, 08.02.2016...
-
Page 13: Use Case
Use case 2 – Controlling socket removal by App/LG Use case 2 – Controlling socket removal by App/LG Specification of socket with defined bit mask Example: SW S168813 V1.4, 4 sockets, Arcnet address 101 Activate Application (App)/Linking Group (LG) via external unit (SPS, scanner, computer…) Program mPro400GC: •... -
Page 14: Selecting Mode
Use case 2 – Controlling socket removal by App/LG Selecting mode Switch on control. Select <Navigator> < Advanced> <Linking>. Fig. 5-1 Linking App mode Enable linking: LG mode Defining input/output signals Select signals individually and confirm with <Insert> ... -
Page 15: Assigning Socket To Ls
Use case 2 – Controlling socket removal by App/LG Fig. 5-2 Programmable I/O mapping Assigning socket to LS Select <Navigator> <Advanced> Controller Settings. Activate Display mPro button. Save settings with <Navigator>. Select <mPro> Select tool group no. and program individual linking steps (LS): Mark LS and open with Fig. - Page 16 Use case 2 – Controlling socket removal by App/LG Fig. 5-4 : Linking step 1 Program input mask (see table). Program output mask (see table). Example: 8x socket tray, output 1 Removal Input mask Outputs Socket 1 E2-4/EN1 Socket 2 E1/3-4/EN2 Socket 3...
-
Page 17: Assigning Socket To App
Use case 2 – Controlling socket removal by App/LG Assigning socket to App Select <Navigator> < Standard> Settings > Input / output bitmask. Definition of bitmask: Inputs Outputs → 1) Logic 0 = EN1 Remove socket 1 → 2) Logic 1 = E2 Socket 2 remains →... -
Page 18: Technical Data
Follow the locally applicable regulations. Observe generally valid disposal guidelines such as, in Germany, the Electrical and Electronic Equipment Act (ElektroG): Submit S133410 and S133411 at your company collection point or return them to Apex Tool Group. P2268BA/EN 2015-10 P2268BA-EN_b.fm, 08.02.2016... - Page 20 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements. Sales Center Service Center NORTH AMERICA | SOUTH AMERICA Detroit, Michigan Louisville, Kentucky Lexington, South Carolina...
