Summary of Contents for Cleco F4-PT-RT-B

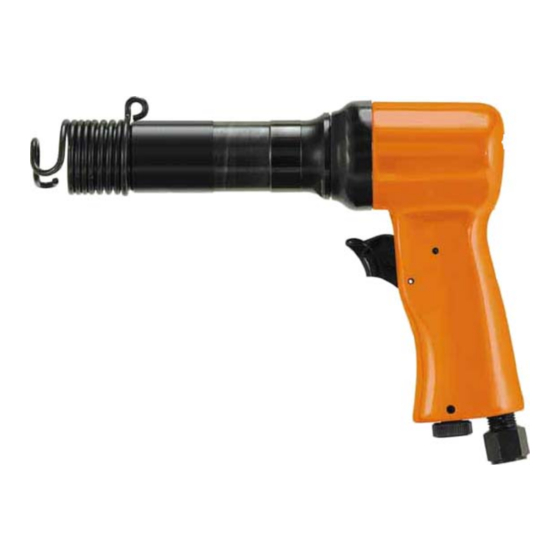

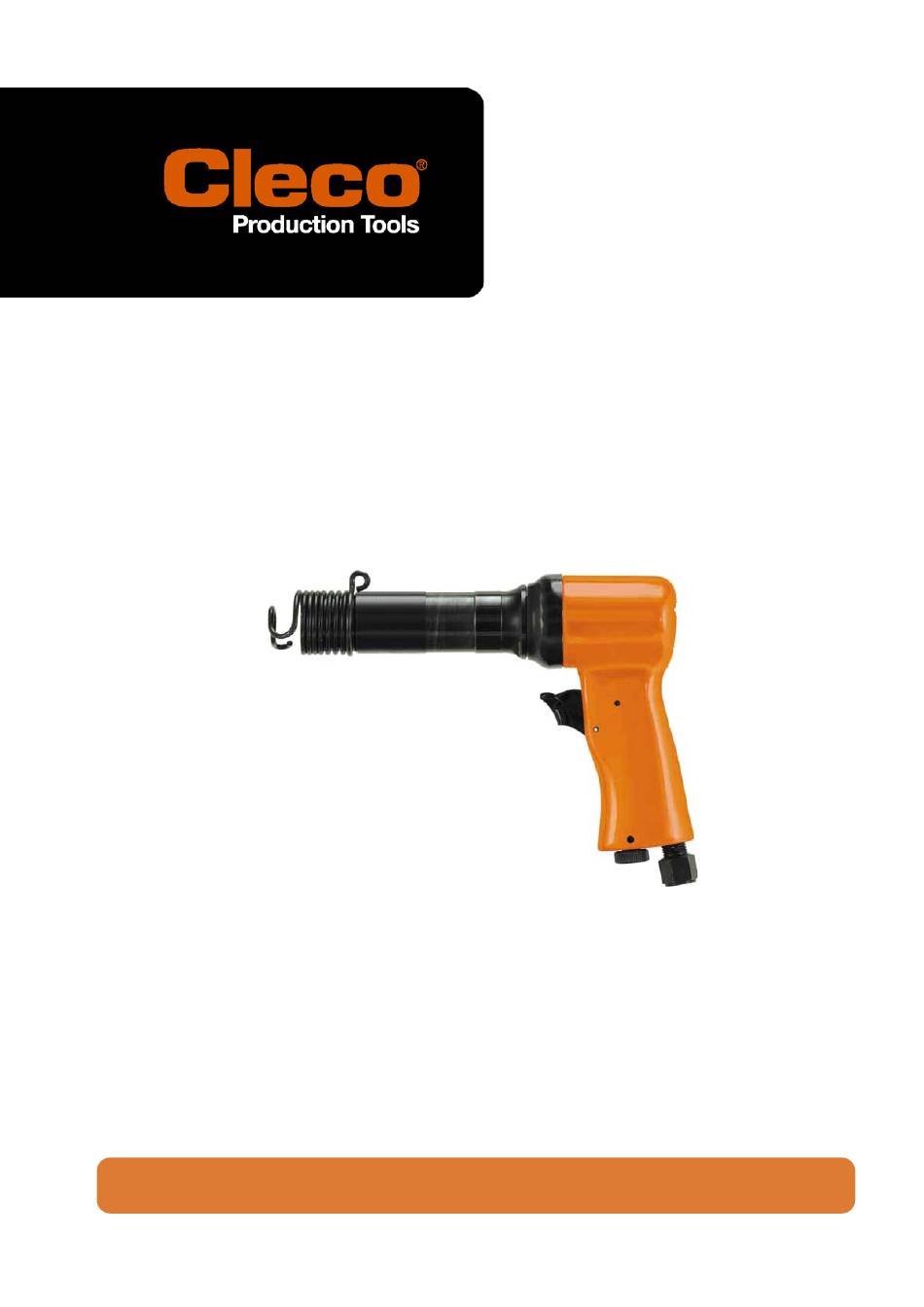

- Page 1 Instruction Manual PL30-F4-PT 2018-04 F4-PT-RT-B Riveter / Hammer For additional product information visit our website at http://www.ClecoTools.com...
- Page 2 Disclaimer Apex Tool Group reserves the right to modify, supplement, or improve this document or the product without prior notice. Trademark Cleco is a trademark of the Apex Tool Group Division. Manufacturer Apex Tool Group, LLC 670 Industrial Drive Lexington, South Carolina 29072...
- Page 3 PL30-F4-PT 2018-04 Notes on this Hardware-Description If there is any doubt regarding the safe operation of this product, consult Apex Tool Group, LLC before using. The original language of this description is English. This description is intended for all persons who will operate Only use the product under the following conditions: and maintain this equipment.
-
Page 4: Product Description
Blows Throttle Handle Bore For use with Rivet Set Air Inlet per minute Shank Diameter (NPT) In. mm lbs. kg In. mm F4-PT-RT-B 8.8 223 3.3 1.5 1,700 Lever .56 14 .401 10.2 1/4“ Ambient conditions Air Line Parameter Description Ambient temperature -13 °F to +104 °F (-25 °C to +40 °C) - Page 5 / rivet bit. Consult and comply with the mounting safety instruc- The Cleco Production Tools "F" series riveters are tions of the cutting device manufacturer. designed to operate on 90 psi air pressure using a 1/4" I.D.
- Page 6 PL30-F4-PT 2018-04 Riveter Chisel Installation Procedure: 1. Remove retainer spring (#21) 2. Install chisel into bushing (#18) inside cylinder 3. Thread retainer spring (#21) onto bushing (#18) 4. For chisel removal, repeat step 1.
- Page 7 PL30-F4-PT 2018-04 Index Order no Quantity Description K1 Handle (includes Ref. 2) K1 Throttle Valve Bushing K1 Inlet Bushing (NPT) K1 Hex Socket Head Cap Screw (M5 x 8) K3 Throttle Valve O-Ring (S-6) K3 Throttle Valve K3 Throttle Valve Spring K3 Control Valve O-Ring (S-8) K3 Control Valve K2 Lever...
- Page 8 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Cleco ® Sales & Service Center for the appropriate facility to handle your service requirements. Sales Center Service Center NORTH AMERICA | SOUTH AMERICA...
