Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
A2DIY-VOL
QUICK START BLUETOOTH INSTALLATION GUIDE FOR VOLVO CD CHANGER CONTROLLING RADIOS
C reated M arch1, 2017
R evised: October 12, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A2DIY-VOL and is the answer not in the manual?

Questions and answers

Related Manuals for Volvo A2DIY-VOL

Summary of Contents for Volvo A2DIY-VOL

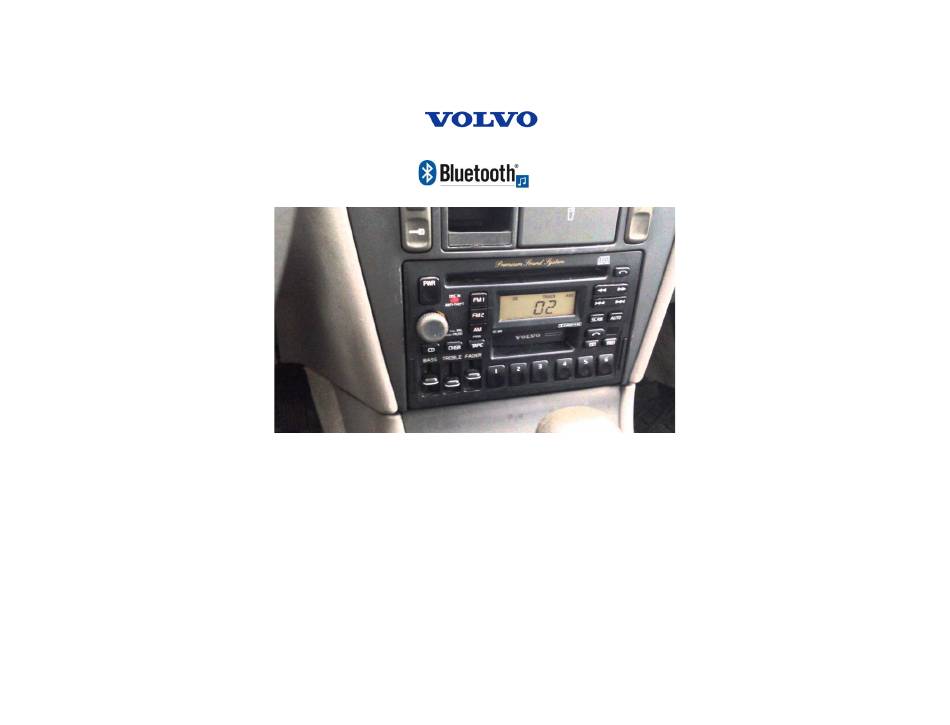

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-VOL QUICK START BLUETOOTH INSTALLATION GUIDE FOR VOLVO CD CHANGER CONTROLLING RADIOS C reated M arch1, 2017 R evised: October 12, 2020...

  • Page 2: Installation

    Introduction: Many Volvo owners adamant about keeping their cars as stock possible, will be thrilled with the A2DIY-VOL kit which adds modern Bluetooth features without changing the look and feel of dashboard components. Features Bluetooth Hands-Free and music streaming from any Smartphone with A2DP and HFP support.
  • Page 3 AUX input connection: Connect supplied 3.5mm audio cable (See Fig. 5) to module “AUX” jack (See Fig. 6). Route and connect other end to front of the dash or wherever Aux device will reside (within 3 ft.) Install microphone to visor or headliner using included visor clip (See Fig.
  • Page 4 Should you decide to add the USB Port, we suggest 2 mounting options: A. Flush to dash/panel requires drilling a ¾” hole in the dash B. Flush with Support bracket (use this option to mount USB terminal wherever your installation demands without drilling) Flush to Dash or Panel (requires drilling) Drill a ¾”...
  • Page 5 USB with Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. of radio and mount USB support bracket (See Fig. 15) to surface using adhesive/tape or screws. Fig. 12 USB charging port Fig. 15 USB mounting bracket Push USB head (See Fig.

  • Page 6: Smart Remote

    Once paired Blue LED inside peephole flashes once every 2 seconds and confirmation tone is heard on car speakers One connection The A2DIY-VOL connects to one device at a time. You must disconnect/unpair first device before pairing a second, or simply disable Bluetooth on first device. Warning! Voice Recognition applications (e.g.

  • Page 7: Test Operation

    Operation: Bluetooth Comparison Chart Pair with iOS7.0 and higher and Android 4.4 and higher. Feature A2D-VOL A2DIY-BKR CD changer retention 3.5mm AUX input ✓ USB charging port Muting Hands-Free profile ✓ Music streaming ✓ ✓ Push-to-talk button ✓ Remote control ✓...

  • Page 8: Frequent Asked Questions

    Volume button on radio is used to set the playback level. 5. Can I pair or save more than one device to the A2DIY-VOL? YES; more than one device (slaves) can be paired however only one connection can be active at a time. To pair a second device, you must disconnect first device.
