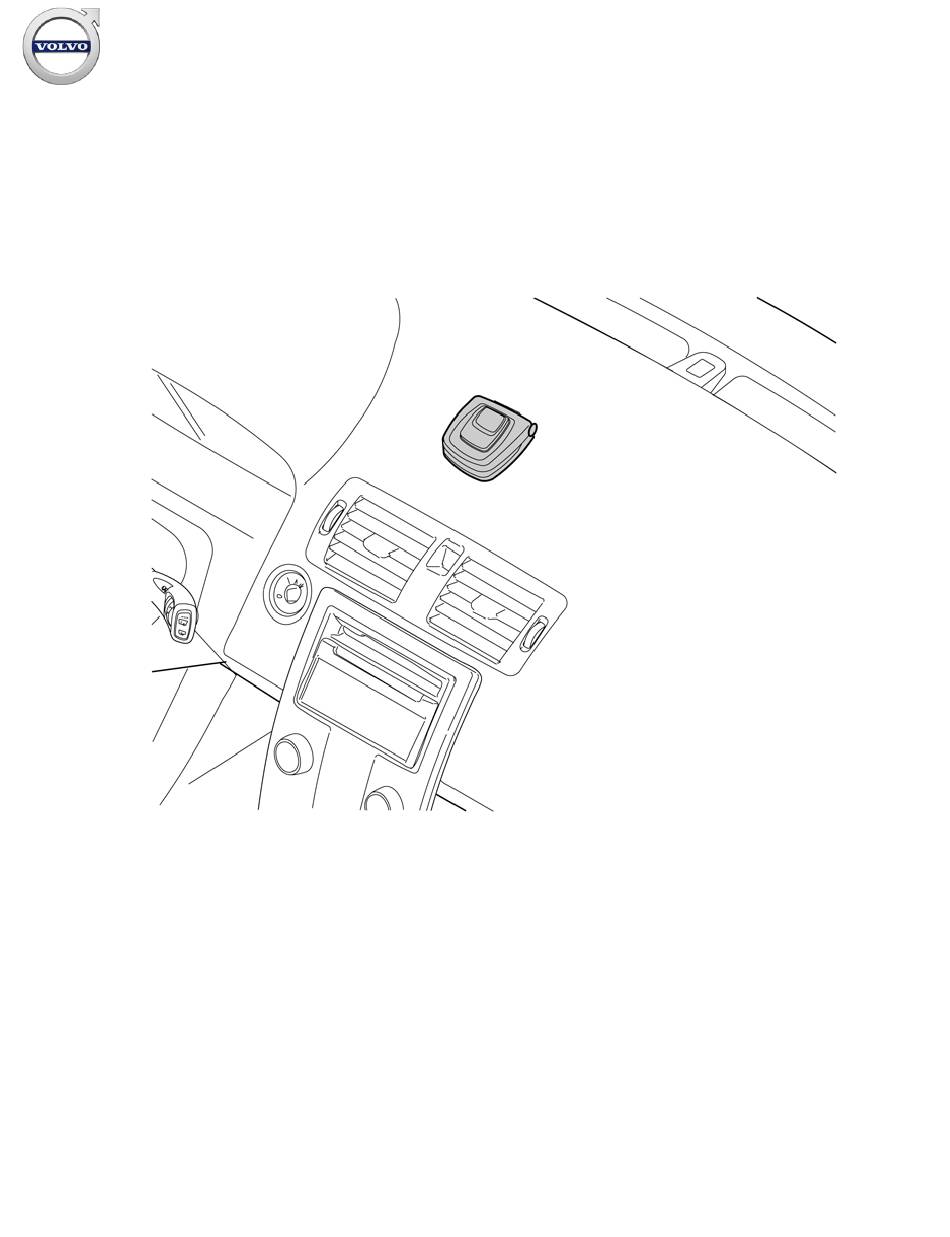

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30756303 30756303 31285222 31285222 Navigation system, portable Navigation system, portable IMG-279043 IMG-279043 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5...
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-282403 IMG-246925 IMG-239660 IMG-239667 IMG-239681 IMG-240673 IMG-239942 IMG-240675 IMG-279044 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 2 / 67...
  • Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 3 / 67...
  • Page 4 Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! For information regarding the GARMIN device, see www.garmin.com.
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars without loudspeaker grilles Assembling the holder Note! Take care when handling the components, they are fragile and are easily damaged. Take the three screws M5x25 part no. 986957 and nuts from the kit.
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the kit with the four spacers from the installation kit. Carefully pry off the spacer using P/N 31212784. The part number (1) is on the bottom of the spacer. IMG-282405 Take the three screws and insert them in the spacer fully.
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it. IMG-282408 Illustration A Install the spacer in the bottom of the holder.
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the connector in the bottom of the hole. The guide hole (1) in the connector's circuit board must align in the corresponding pin at the bottom of the holder and the holes (2) in the circuit board must be over the holder's screw turret.
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Preparations Turn the ignition switch to position 0. Disconnect the battery negative lead. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-246024 Remove the template from the kit. Cut around the outer lines.
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the template with the lower edge 21 mm (53/64") from the top edge of the air outlet and centred along a line between the button for the warning flashers and the LED.
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connector for the warning flashers and move the unit aside. IMG-279048 Open the glovebox. Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber mat and storage compartment. IMG-263505 Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver.
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back. Disconnect the two connectors. Put the display to one side. J8504534 Carefully bend loose and remove the hand brake lever's panel.
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the bottom cover. IMG-270743 Applies to cars with manual gearbox Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Loosen the gearshift knob from the shift by pressing down the knob and turning it slight more than a 1/4 turn anticlockwise and pull it up. IMG-279049 Applies to all models Remove the two screws.
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws along the front edge of the tunnel console. IMG-279050 Illustration A Illustration B Carefully pull up the lock catch with special tool 9995919. At the same time, slide the whole tunnel console backward so that the two rear screws in the centre console's panel can be accessed.
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws. IMG-263589 Remove the two screws holding the centre console to the dashboard. Remove the connector on the reverse of the dashboard environment panel. Remove the centre console's panel from the dashboard and tunnel console.
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards. Note! Make sure that the optic cables are not bent or stretched. They may not be bent with a radius less than 25 mm (1").
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cover the opening to the air ducts with paper to avoid chips filling into these. Spread out a piece of paper inside the dashboard to catch the drill chips. Choose LHD or RHD on the drilling template and mark the holes in the centre using a scriber.
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Select a Ø25 mm (1/2") hole saw. Change the centre drill in the hole saw back to the original drill bit. Drill for the connection of the connector. Drill through all layers of the dashboard.

  • Page 21: Installation

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installation Take out the cradle and insert the three stud bolts down through the holes in the dashboard's plastic layer. Take out the three nuts and tighten the cradle on the dashboard.
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take out the short connection cable from the kit and secure the connector to the bottom of the cradle. IMG-279057 Pry up the lower edge of the panel on both sides and pull it outward and downward.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! The cable harness is always routed on the right-hand side through the tunnel console and the centre console on both left and right-hand drive cars. Fold out the mat by the front edge on the right-hand side of the tunnel console.
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Wind foam tape around the fuse holder. IMG-279060 Connect the 12V outlet's black male connector (1) to the equivalent white female connector (2) on the routed adapter cable. Connect the remaining adapter cable's white male connector to the 12V outlet.
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Insert the connector and fuse holder in the same hole as the cable to the 12V outlet was routed. IMG-279062 Refit the rear panel, and ensure that the cables inside are not pinched.
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with manual gearbox Pull all surplus cable up to the front edge of the tunnel console. The cable must be routed on the right-hand side of the control arms to the gear shift.
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models Insert a wire spiral from the outlet where the air outlet was located and down to the right-hand side of the tunnel console. Tape the connector and a piece of the cable harness to the wire spiral.

  • Page 28: Finishing Work

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Finishing work Connect the cable to the warning flashers. IMG-279071 Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched. IMG-279072 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5...
  • Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Plug in the connector to the centre console's panel and reinstall. IMG-263626 IMG-263627 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 29 / 67...
  • Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with manual gearbox IMG-279073 IMG-279075 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 30 / 67...
  • Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B apply to all models. IMG-263629 IMG-263630 IMG-272584 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 31 / 67...
  • Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263631 IMG-279077 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 32 / 67...
  • Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-279078 IMG-263634 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 33 / 67...
  • Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263636 IMG-263638 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 34 / 67...
  • Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263703 Turn the ignition key to position II. Reconnect the battery negative lead. IMG-242267 Applies to cars with loudspeaker grilles © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 35 / 67...
  • Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with loudspeaker grilles Assembling the holder Note! Take care when handling the components, they are fragile and are easily damaged. Take the three screws M5x20 part no. 986956 and nuts from the kit.
  • Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the kit with the four spacers from the installation kit. Carefully pry off the spacer using P/N 31212525. The part number (1) is on the bottom of the spacer. IMG-282405 Take the three screws and insert them in the spacer fully.
  • Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it. IMG-282408 Illustration A Install the spacer in the bottom of the holder.
  • Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the connector in the bottom of the hole. The guide hole (1) in the connector's circuit board must align in the corresponding pin at the bottom of the holder and the holes (2) in the circuit board must be over the holder's screw turret.
  • Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Preparations Turn the ignition switch to position 0. Disconnect the battery negative lead. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-246024 Remove the ventilation outlet by carefully inserting special tool 9995919 between the ribs and carefully pulling up the four catches on the lower edge.
  • Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connector for the warning flashers and move the unit aside. IMG-279093 Open the glovebox. Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
  • Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber mat and storage compartment. IMG-263505 Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver.
  • Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back. Disconnect the two connectors. Put the display to one side. J8504534 Carefully bend loose and remove the hand brake lever's panel.
  • Page 44 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the bottom cover. IMG-270743 Applies to cars with manual gearbox Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.
  • Page 45 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Loosen the gearshift knob from the shift by pressing down the knob and turning it slight more than a 1/4 turn anticlockwise and pull it up. IMG-279049 Applies to all models Remove the two screws.
  • Page 46 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws along the front edge of the tunnel console. IMG-279050 Illustration A Illustration B Carefully pull up the lock catch with special tool 9995919. At the same time, slide the whole tunnel console backward so that the two rear screws in the centre console's panel can be accessed.
  • Page 47 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws. IMG-263589 Remove the two screws holding the centre console's panel to the dashboard. Remove the connector at the rear of the climate panel and put the panel to one side.
  • Page 48 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the template from the kit. Cut around the outer lines. IMG-279045 Tape the template to the loudspeaker grille. IMG-279094 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 48 / 67...
  • Page 49 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Illustration B Cover the opening to the air ducts with paper to avoid chips filling into these. Spread out a piece of paper inside the dashboard to catch the swarf. Drill square to the loudspeaker grille where the holes are to be positioned.
  • Page 50 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Remove the loudspeaker grille as follows: insert the tool, P/N 9995919, into the joint between the loudspeaker grille and the dashboard approximately as illustrated, until it engages. Twist the tool 90° so that the bent section engages with the underneath of the loudspeaker grille.
  • Page 51 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the step drill and drill out the hole for the connection in the holder using a Ø28 mm (1 7/64") drill bit. IMG-279102 Tape a piece cloth over the loudspeaker. Drill the corresponding hole in the loudspeaker console using a Ø25 mm (1") hole saw.
  • Page 52 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drill the holes for the cradle's stud screws using a Ø7 (9/32") mm drill bit. Remove the cloth. IMG-279104 Installation Illustrations A and B Take three nuts, washer and the cradle out of the kit and secure to the loudspeaker grille.
  • Page 53 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pry up the lower edge of the panel on both sides and pull it outward and downward. The connector on the 12V outlet will detach from the panel as the cable is very short.
  • Page 54 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the foam tape from the kit and remove the protective tape. IMG-277338 Wind foam tape around the fuse holder. IMG-279060 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 54 / 67...
  • Page 55 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the 12V outlet's black male connector (1) to the equivalent white female connector (2) on the routed adapter cable. Connect the remaining adapter cable's white male connector to the 12V outlet.
  • Page 56 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Refit the rear panel and ensure that the cables and fuse holder inside are not pinched. IMG-279063 Applies to cars with manual gearbox Pull all surplus cable up to the front edge of the tunnel console.
  • Page 57 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with automatic gearbox Pull all surplus cable up to the front edge of the tunnel console. Pull up the cable in the middle of the shift carrier and secure with pieces of butyl tape.
  • Page 58 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take out the short connection cable from the kit and connect to the newly routed cable harness. IMG-279111 Pull up the cable through the hole in the loudspeaker console. IMG-279113 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5...
  • Page 59 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the connector in the routed cable to the connection on the cradle. IMG-279114 Note! Ensure the stud bolts fit in their holes before securing the grille. Push the cable through the holes in the grille and loudspeaker console.
  • Page 60 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Finishing work Connect the cable to the warning flashers. IMG-279247 Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched. IMG-279116 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5...
  • Page 61 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Plug in the connector to the centre console's panel and reinstall. IMG-263626 IMG-263627 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 61 / 67...
  • Page 62 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with manual gearbox IMG-279073 IMG-279075 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 62 / 67...
  • Page 63 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden 116A Illustrations A and B apply to all models. IMG-263629 116B IMG-263630 IMG-272584 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 63 / 67...
  • Page 64 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263631 IMG-279077 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 64 / 67...
  • Page 65 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-279078 IMG-263634 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 65 / 67...
  • Page 66 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263636 IMG-263638 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 66 / 67...
  • Page 67 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-263703 Turn the ignition key to position II. Reconnect the battery negative lead. IMG-242267 © Volvo Car Corporation Navigation system, portable- 30756303 - V1.5 Page 67 / 67...
