Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31330111
31330111
1.3
1.3
IMG-346750
IMG-346750
© Volvo Car Corporation
Part. No.
Part. No.
31330114, 31330113, 9487196, 9487195, 9487194, 31330811, 31330810, 31330115, 31330112, 31330614,
31330114, 31330113, 9487196, 9487195, 9487194, 31330811, 31330810, 31330115, 31330112, 31330614,
31330613
31330613

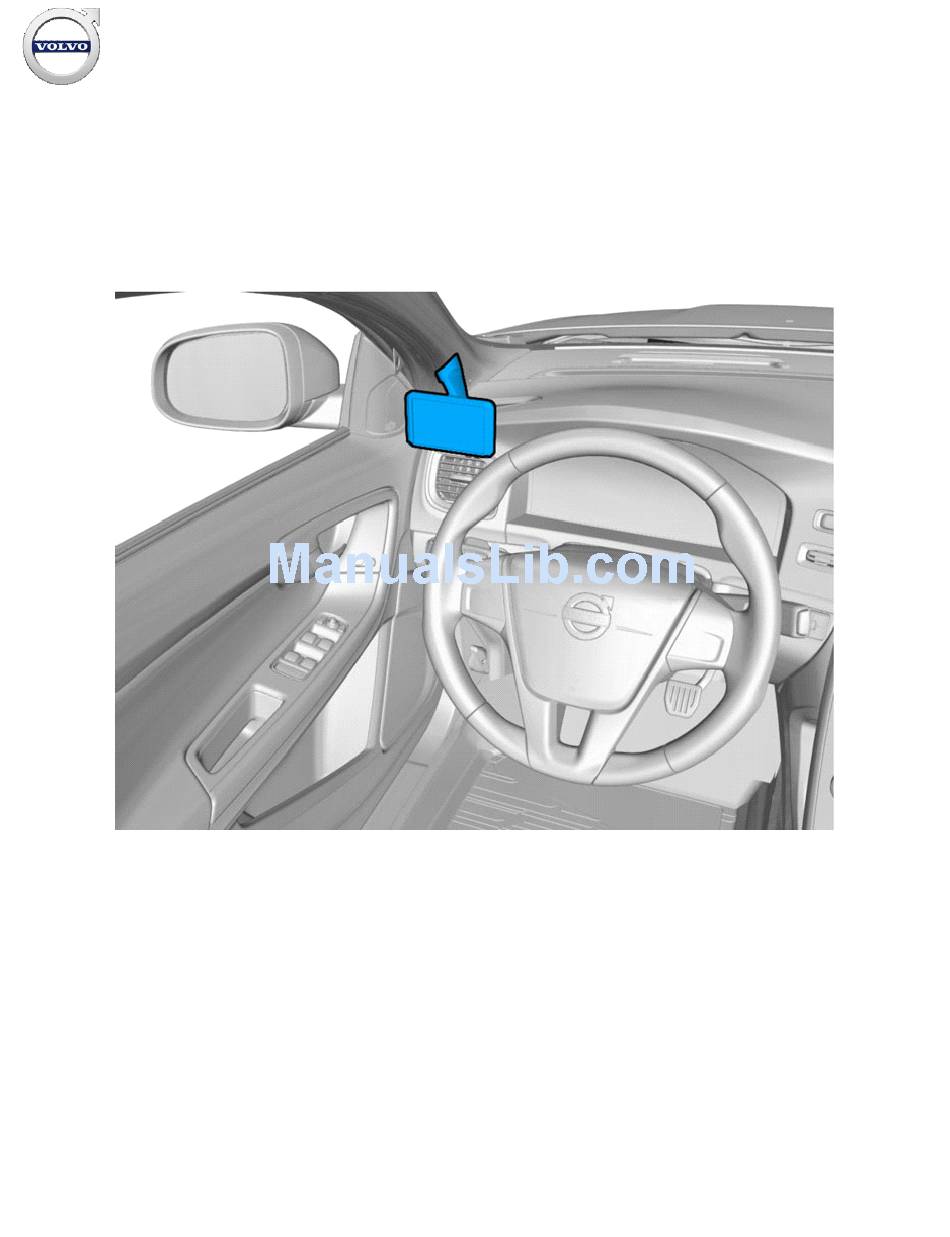

Navigation system, portable
Navigation system, portable
Navigation system, portable- 31330111 - V1.3
Page 1 / 41
Advertisement
Related Manuals for Volvo 31330114
Summary of Contents for Volvo 31330114
- Page 1 Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31330114, 31330113, 9487196, 9487195, 9487194, 31330811, 31330810, 31330115, 31330112, 31330614, 31330114, 31330113, 9487196, 9487195, 9487194, 31330811, 31330810, 31330115, 31330112, 31330614, 31330111 31330111 31330613 31330613 Navigation system, portable...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-242205 A0000162 IMG-239664 IMG-239660 IMG-327738 IMG-239681 IMG-239682 IMG-240673 IMG-239944 IMG-239980 IMG-244945 IMG-317443 IMG-348826 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 2 / 41...
- Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Some steps in these installation instructions are presented with illustration only.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Set the ignition key to position 0. Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment. IMG-332193 IMG-339918 IMG-346741 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the marked components. IMG-346751 Remove the screws. IMG-346752 Remove the marked components. Unplug the connector. IMG-346745 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 5 / 41...
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber strip. IMG-347861 Remove the screw. IMG-346753 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 6 / 41...
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-346731 IMG-346742 IMG-346728 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 7 / 41...
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cut out the discs. IMG-346755 Place the mountingA over the drilled hole. IMG-347232 Centred the hole in the mounting Aopposite the drilled hole in the panel. Adjust the mounting so that it is fully against the panel and hold fast.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-346740 Carefully drill out the mounting and panel. Drill horizontally. IMG-346730 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 9 / 41...
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-346732 Adjust the cable length so that the end of the marking is as illustrated. IMG-347714 Adjust the cable length so that the end of the marking is as illustrated.
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installing holder Note! Be sure to position the mounting (A) so that it is against the panel. IMG-347715 IMG-347716 Illustrations A and B Insert the cables in the dashboard. IMG-347717 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-348171 Illustrations A and B Reinstall the panel. IMG-348235 IMG-348234 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 12 / 41...
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all vehicles Remove the panel. Right-hand drive vehicles Applies to both sides. IMG-298585 Applies to all vehicles Remove the panel. IMG-340522 Illustrations A and B IMG-303385 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-339921 Push out the 12V cable. IMG-340508 Take the cable harness (F) out of the kit and place it on the left hand side of the tunnel console. Connect the 12V cable to the female connector on the cable harness.
- Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Cut off the foam, remove the protective tape and wind the foam around the connector and fuse holder. IMG-347546 Place the foam covered components as illustrated. Ensure that the cables do not come into contact with sharp edges.
- Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-348172 Right-hand drive vehicles Route the cable harness forward inside the mat, through the centre console, up through the dashboard and out to the left at the combined instrument panel. Use tension spring P/N 9512932.
- Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the connectors. IMG-348236 Remove the protective tape and wrap the foam around the connectors. IMG-348173 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 17 / 41...
- Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clamp the foamed connectors and cable harness and any overlength at the existing cable harness. Note! Divide the excess evenly, in order not to obstruct the combined instrument panel. IMG-348174 IMG-348176 Reinstall the detached components in reverse order.
- Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Set the ignition key to position 0. Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment. IMG-332193 IMG-347725 IMG-347735 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the marked components. IMG-347730 Remove the screws. IMG-347732 Remove the marked components. Unplug the connector. IMG-347726 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 20 / 41...
- Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber strip. IMG-347861 Remove the screw. IMG-347731 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 21 / 41...
- Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-347720 IMG-347721 Cut out the discs. IMG-347733 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 22 / 41...
- Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the mountingA over the drilled hole. IMG-347232 Centre the hole in the mounting (A) opposite the drilled hole in the panel. Adjust the mounting so that it is fully against the panel and hold securely.
- Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully drill out the mounting and panel. Drill horisontally. IMG-346730 Remove the screws. IMG-346732 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 24 / 41...
- Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Adjust the cable length so that the end of the marking is as illustrated. IMG-347714 Adjust the cable length so that the end of the marking is as illustrated. IMG-348302 Installing holder...
- Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Insert the cable harness in the dashboard. Use tension spring P/N 9512932. IMG-347729 IMG-347728 Illustrations A and B Reinstall the panel. IMG-347734 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-347722 Applies to all vehicles Remove the panel. Right-hand drive vehicles Applies to both sides. IMG-298585 Applies to the XC60 from and including chassis number 175379- Remove the panel. IMG-340522 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-303385 IMG-339921 Push out the 12V cable. IMG-340508 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 28 / 41...
- Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the cable harness (F) out of the kit and place it on the left hand side of the tunnel console. Connect the 12V cable to the female connector on the cable harness.
- Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the XC60 up to and including chassis number 175378- IMG-329154 Use tape to protect the tunnel console. IMG-329155 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 30 / 41...
- Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-293021 IMG-293022 IMG-293023 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 31 / 41...
- Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-293024 IMG-329163 IMG-293028 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 32 / 41...
- Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-293029 IMG-329164 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 33 / 41...
- Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rear end with cover. Disconnect the connectors for the 12 V socket and seat heating,. IMG-334421 Take a piece of curtain wire and insert it in the rear edge of the tunnel console, slide it forward on the left-hand side and out where the left side panel was located.
- Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the male connector (1) in the new cable harness to the 12 V socket. Connect the disconnected connector (2) from the 12 V socket to the female connector (2) in the new cable harness.
- Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Position the connectors and fuse holder. IMG-334426 IMG-334427 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 36 / 41...
- Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-334428 IMG-334429 IMG-293023 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 37 / 41...
- Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-334431 Applies to all models Illustrations A and B Route the cable harness from the 12V socket through the centre console. Use tension spring P/N 9512932. IMG-347724 IMG-347727 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to right-hand drive vehicles IMG-347723 Clamp the cable at the existing cable harness. Conceal any overlength cable inside the mat. IMG-348175 Applies to all vehicles Connect the small connectors. IMG-347719 © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3...
- Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Wrap the connectors in foam tape. IMG-348179 Clamp the foamed connectors and cable harness and any overlength at the existing cable harness. Note! Divide the excess evenly, in order not to obstruct the combined instrument panel.
- Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the navigator. IMG-348176 Reinstall the detached components in reverse order. © Volvo Car Corporation Navigation system, portable- 31330111 - V1.3 Page 41 / 41...
