Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

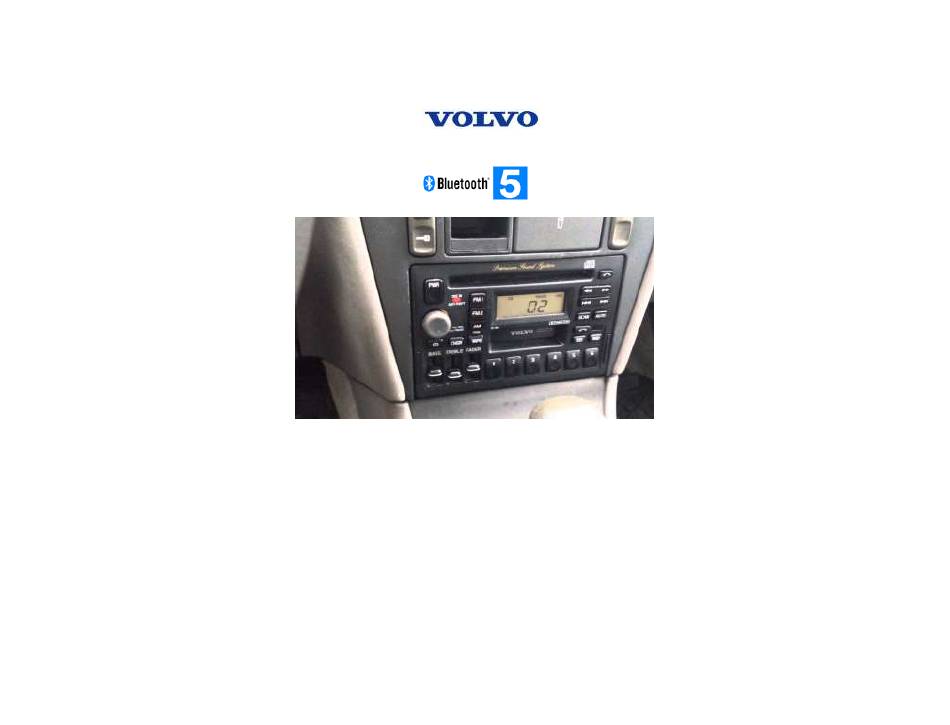

A2DIY-VOL
(version 10.3)
QUICK START BLUETOOTH INSTALLATION GUIDE FOR VOLVO CD CHANGER CONTROLLING RADIOS
Created March1, 2017
Revised: October 15, 2021

Advertisement

loading

Related Manuals for Volvo A2DIY-VOL

Summary of Contents for Volvo A2DIY-VOL

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-VOL (version 10.3) QUICK START BLUETOOTH INSTALLATION GUIDE FOR VOLVO CD CHANGER CONTROLLING RADIOS Created March1, 2017 Revised: October 15, 2021...

  • Page 2: Installation

    This installation guide is provided as a GENERAL installation guide, some vehicles vary and may require additional steps. We do not accept responsibility for third party labor charges or mind, most Volvo radios are coded and will not operate without code. Radio modifications. Exercise due-diligence when installing this product.
  • Page 3 Visor microphone Fig. 5 Fig. 6 Fig. 3 Module Tap YELLOW wire from installation harness to YELLOW/PURPLE (Battery supply) wire on radio harness or another source for 12V battery accessory supply (See Fig. 7) Fig. 4 Radio’s 8-pin changer port Use clip to secure microphone to headliner or visor (See Fig.
  • Page 4 Optional charging kit Fig. 10 Step drill bit Insert USB male terminal through the ¾” hole created in step 1 and connect to module USB port (See Fig. 12) Fig. 8 Optional USB charger can be added to the A2DIY-HON. Should you decide to add this option, we suggest one of 3 connecting options: A.
  • Page 5 Insert the 6 ft. USB male terminal through bracket hole (See Fig. 16) and connect to Module USB port (See Fig. 12) Fig. 13 Fig. 16 USB head Push USB head until it snaps in place and flush (See Fig. 17) Fig.
  • Page 6 Attach button to steering wheel (includes holder) or dashboard using included double sided tape – your choice! The A2DIY-VOL connects to one device at a time. You must disconnect/unpair first device before pairing a second, or simply disable Bluetooth on first device.
  • Page 7 Once paired with smartphone/Tablet, users may perform the following functions on iOS devices with Bluetooth 3.0 and later or Android 4.0 or later. Feature A2D-VOL A2DIY-VOL Media remote functions do NOT apply to Volvo radio. CD changer retention AUX input USB charging kit...
  • Page 8 Radio volume button is used to set playback level. 8. If correct operation is confirmed go ahead and reinstall radio. 4. Can I pair or save more than one device to the A2DIY-VOL? YES; pair more than one device, but only one can be active at a time.
