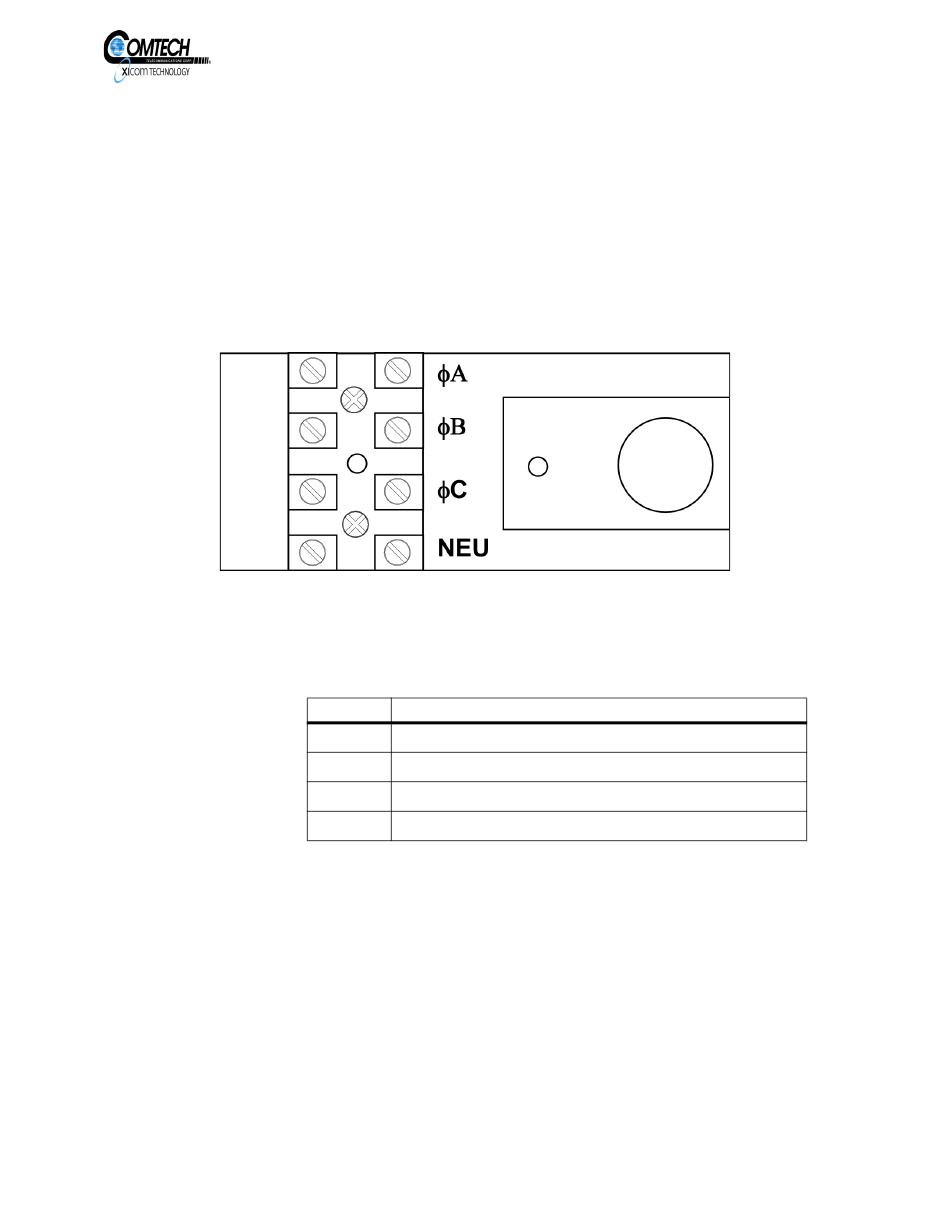

Figure 5, Three Phase Delta Connection (NEU — Not Used) into Terminal Block
MNC-0300-070
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
occur during initial turn on you will need to reverse a phase pair.
Generally the AC Prime Power receptacle is located on the rear
of the amplifier.
Figure 5 through Figure 8 show diagrams of three phase
connections.
Table 2 through Table 5 delineate the pinouts for the three
phase connections.
Table 2, Three Phase Delta Connection Pinouts
Terminal
A
Phase A
B
Phase B
C
Phase C
NEU
No Connection
