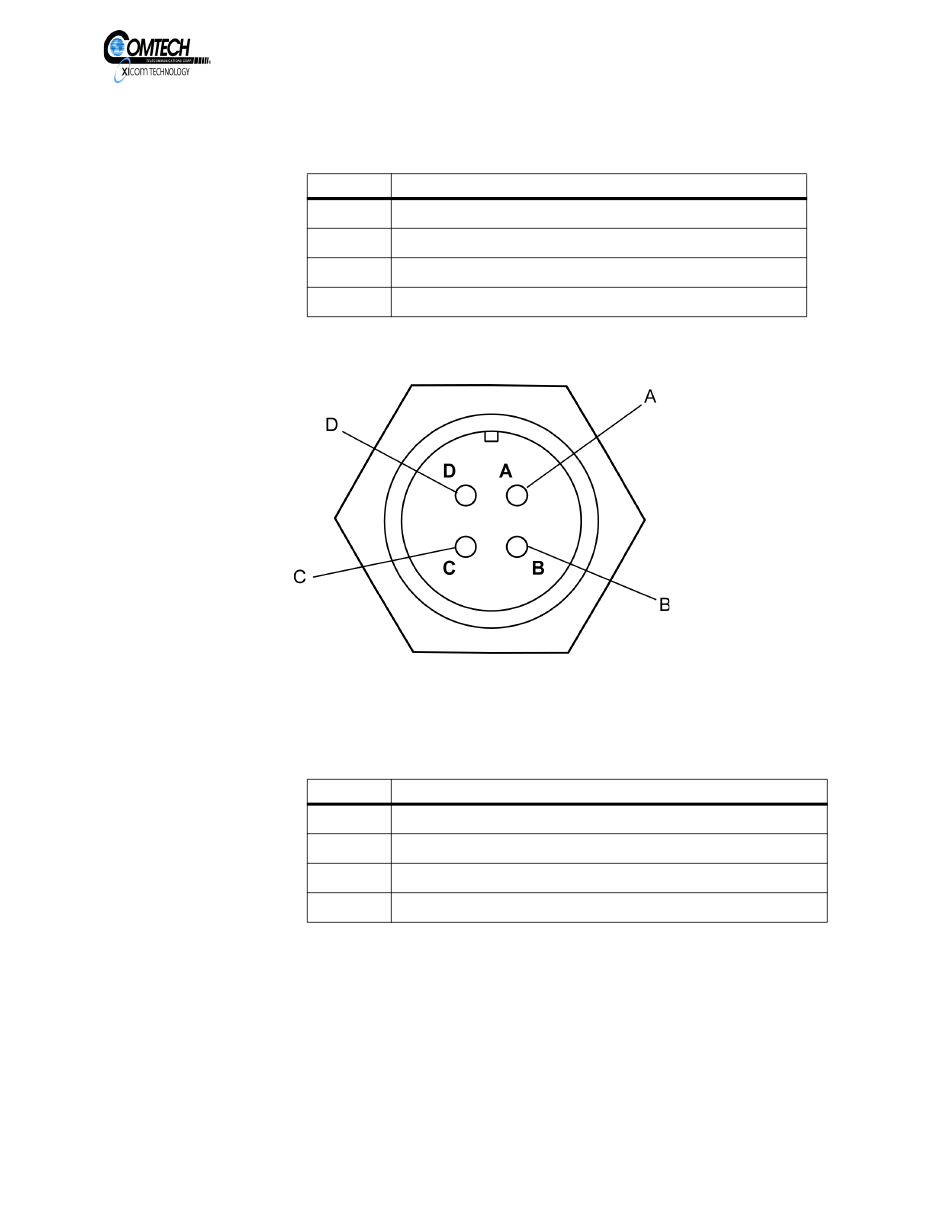

Figure 8, Three Phase Delta Connection into MS type connector

Serial Interface Ports

MNC-0300-070
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
Table 4, Three Phase Delta Connection Pinouts (Amphenol)
Pin
1 Phase A
2 Phase B
3 Phase C
4 Ground
Table 5, Three Phase Delta Connection into MS type Connector
Terminal
A Phase A
B Phase B
C Phase C
D No Connection
Three serial interface connectors (COM1, COM2 and Ethernet),
located on the rear panel of the amplifier are available for
remote control operation. All serial interface ports are always
enabled. The amplifier will respond to commands on any
interface. The last command received has precedence.
17 of 22
Unpacking and Installation
Connection
Connection
