U-Line SLIMFOLD H-4701 Manual

H-4701

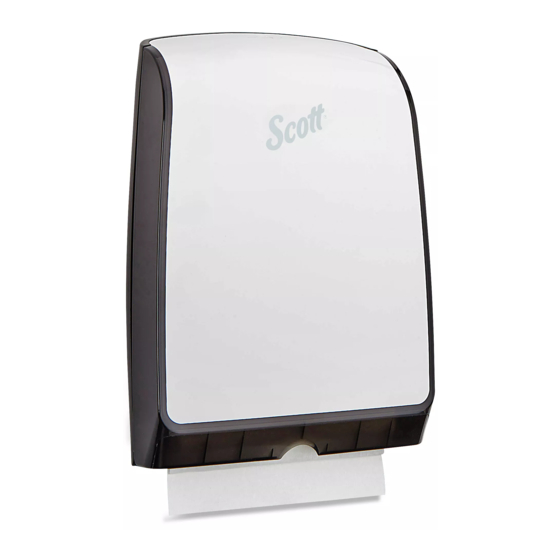

SLIMFOLD™ TOWEL DISPENSER
TOOLS NEEDED
Drill 1/4" Drill Bit
Dispenser x 1
1. Remove push button from
inside dispenser.
(See Figure 1)
Figure 1
NOTE: Ensure that proper mounting hardware
is used for appropriate wall composition, as
enclosed hardware may not be compatible with
wall surface.
MOUNTING WITH SCREWS
NOTE: Recommended mounting height is 52"
from the floor to bottom of dispenser.
1. Insert dispenser key into hole in top of dispenser
and turn counterclockwise to unlock. (See Figure 5)
2. Open dispenser cover and hold dispenser to
ideal mounting place on wall. (See Figure 6)
PAGE 1 OF 9
Phillips Screwdriver
Wall Anchor x 4 Screw x 4
OPTIONAL PUSH BUTTON INSTRUCTIONS
MOUNTING INSTRUCTIONS
1-800-295-5510
uline.com
Level Tape Measure
PARTS
Dispenser Key x 1
Figure 2
2. Push button down into opening on top of dispenser.
(See Figure 2)
3. Turn button to lock it in place. (See Figure 3)
4. Push button to open dispenser without requiring key.
(See Figure 4)
Figure 5
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Wet Wipe x 1 Adhesive Strip x 3
Figure 3 Figure 4
Figure 6
0721 IH-4701
