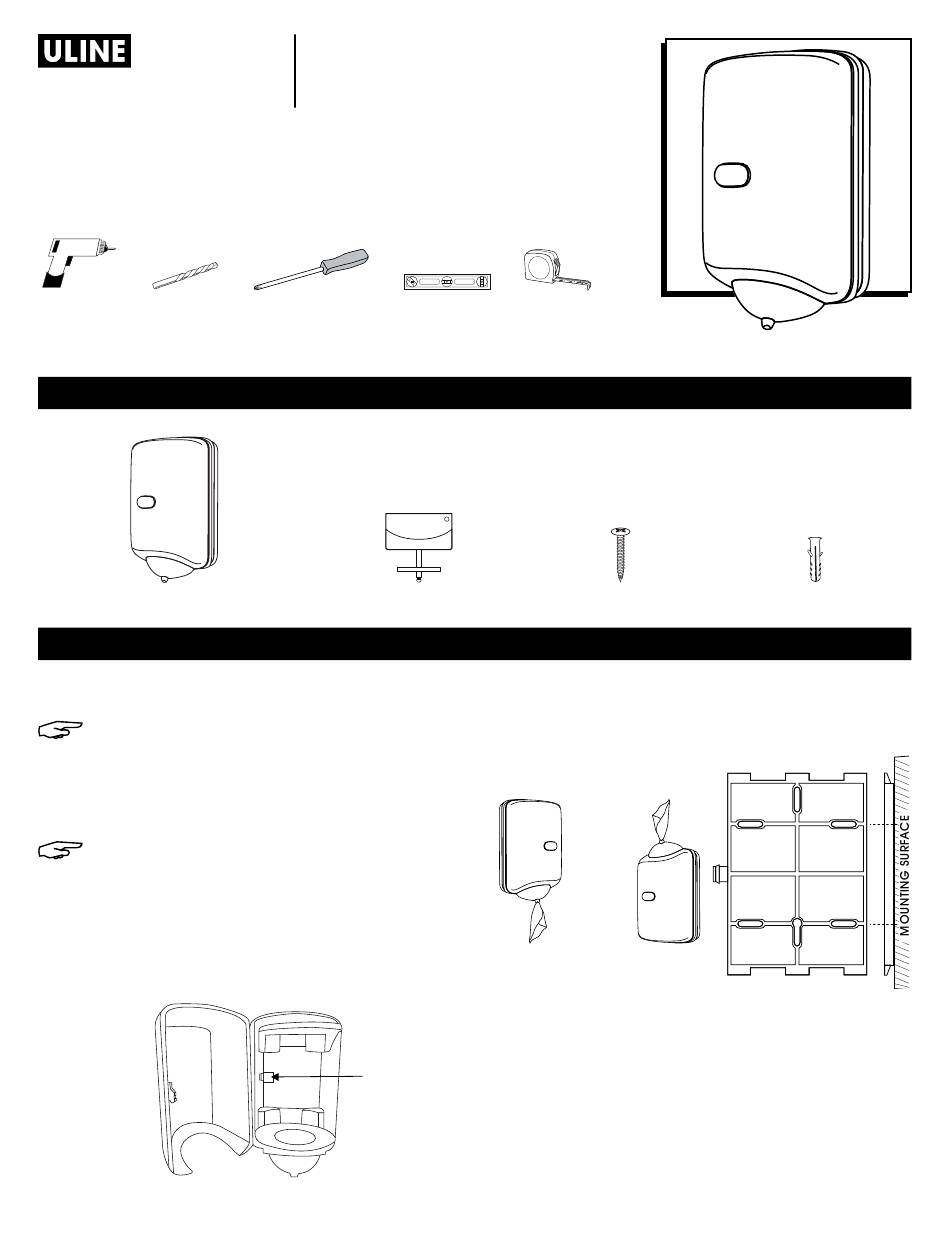

U-Line H-4706 Instructions Manual

H-4706
EZ PULL JR. TOWEL
DISPENSER
TOOLS NEEDED
Drill Drill Bit
Dispenser x 1
MOUNTING
NOTE: Recommended mounting height is 48"
from the floor to the bottom of the dispenser.
1. To unlock and open dispenser, insert key and gently
but firmly turn key clockwise. Dispenser door will
swing open.
NOTE: Lock handle must be turned completely
counterclockwise to the 12 o'clock position to
lock dispenser door in place.
2. Remove mounting plate from the dispenser by
opening the dispenser with supplied key, pressing
the mounting plate tab and sliding the mounting
plate out. (See Figure 1)
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Level
Phillips Screwdriver
Key x 2
INSTRUCTIONS
Mounting
Plate Tab
Tape
Measure
PARTS
Screw x 4
3. Determine the orientation of the dispenser: either right-
side up or upside down. Note the orientation of the
mounting plate. (See Figure 2)
Figure 2
Can be
Mounted
Inverted
4. Align the mounting plate to desired position on the wall.
5. Mark holes, drill and use appropriate anchors and
screws to secure the mounting plate to the wall.
6. Slide dispenser into place on mounting plate until it
locks down. Dispenser is ready to load.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Wall Anchor x 4
0621 IH-4706
