H-6674

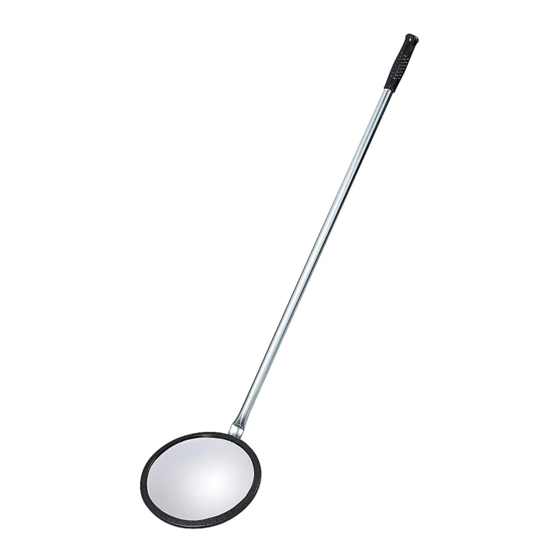

8" STANDARD
INSPECTION MIRROR
TOOLS NEEDED
Phillips Screwdriver
Mirror x 1
1.
Remove cap nut, lock washer and washer from
mirror assembly. (See Figure 1)
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
9/16" Wrench
PARTS INCLUDED
Handle x 1
Cap Nut x 1
ASSEMBLY INSTRUCTIONS
Lock Washer x 1
2. Attach handle to mirror assembly as shown. Use 9/16"
wrench to fully tighten handle to mirror assembly.
(See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Washer x 1
0621 IH-6674
