Summary of Contents for Stryker SYNK

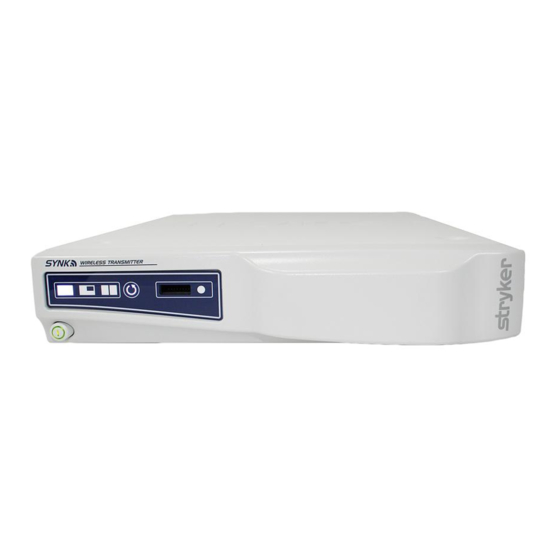

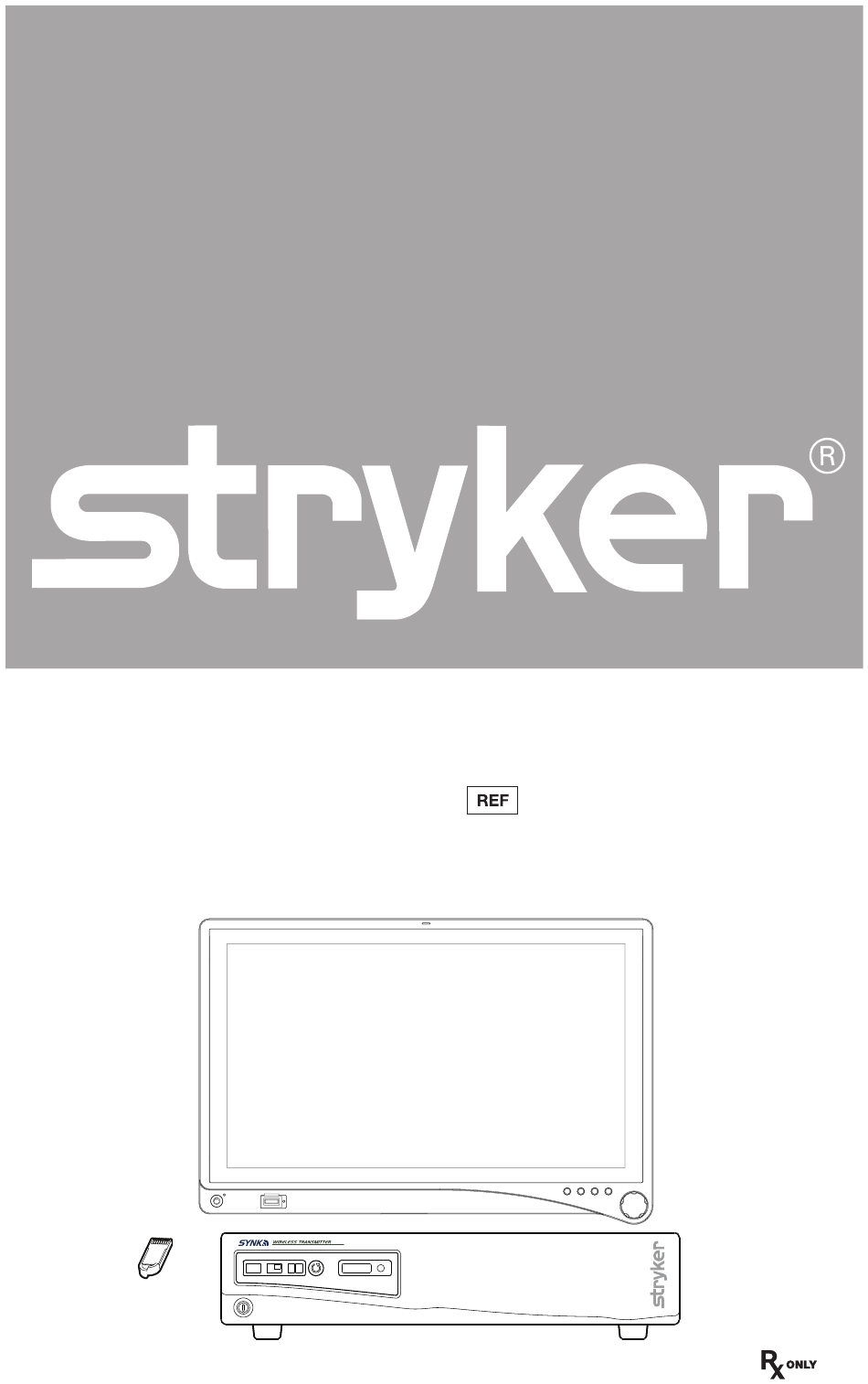

- Page 1 SYNK Wireless System Transmitter: 0240-031-010 Display: 0240-031-000...
-
Page 3: Table Of Contents
About Your Device .....................6 Intended Use and Indications for Use �������������������������������������������������������������������������7 Contraindications ����������������������������������������������������������������������������������������������������������������7 System Features ......................8 SYNK Wireless Transmitter Front Panel ������������������������������������������������������������������������8 SYNK Wireless Transmitter Rear Panel �������������������������������������������������������������������������9 Setup and Interconnection ������������������������������������������������������������������������������������������ 10 Permanently Linking the Transmitter to an Auxiliary Display �������������������������� 15 Removing the the Permanent Link ����������������������������������������������������������������������������... -
Page 5: Warnings And Cautions
A lightning bolt within a triangle is intended to warn of the presence of hazardous voltage� Refer all service to authorized personnel� For all warnings and cautions related to the VisionPro SYNK 26" Wireless LED Display, refer to the display user manual, P22286�... -
Page 6: Cautions
• Federal law (United States of America) restricts this device to sale by, or on the order of, a physician� • To avoid risk of electric shock, use only the hospital-grade power cord furnished with the display and/or transmitter� Disconnect the display and/or transmitter from the power supply to make connections or to inspect the equipment�... - Page 7 • To ensure electromagnetic compatibility, refer to the “Electromagnetic Compatibility” section of this manual� The VisionPro SYNK 26” Wireless LED Display (REF 0240-031-000) and the SYNK Wireless Transmitter (0240-031-010) must be installed and operated according to the EMC information provided in this manual�...
-
Page 8: About Your Device
VisionPro SYNK 26” Wireless LED Display REF: 0240-031-000 The VisionPro SYNK 26” LED Display is a wide screen LED surgical display that can support a maximum resolution of WUXGA (1920x1200)� The display supports the following video inputs: DVI, S-Video, and C-Video/SOG� Once the wireless functionality is enabled, the display supports a wireless digital RGB video input�... -
Page 9: Intended Use And Indications For Use
Intended Use and Indications for Use The SYNK Wireless System is intended for video display during surgical procedures including arthroscopy (orthopedic surgery), laparoscopy (general and gynecological surgery), thoracoscopy, endoscopy (general, gastroenterological, and ENT surgery) and general surgery� The system is a non-sterile reusable device not intended for use in the sterile field� The system is intended for use by qualified physicians having complete knowledge of these surgical procedures�... -
Page 10: System Features
System Features This section outlines the features of the SYNK Wireless Transmitter� The features of the VisionPro SYNK 26" Wireless LED Display are explained in the VisionPro User Manual (P22286)� Note: The SYNK Wireless Transmitter can only transmit a wireless signal to the VisionPro SYNK Wireless LED Display (0240-031-000). -
Page 11: Synk Wireless Transmitter Rear Panel
SYNK Wireless Transmitter Rear Panel Warning • Only a Stryker representative can remove the video card from the expansion card slot� • Never touch the device and a patient simultaneously, as there is a risk of electric shock� BLANK Expansion Card Slot... -
Page 12: Setup And Interconnection
Setup and Interconnection Connecting AC power Warning Always use an approved hospital-grade power cord�... - Page 13 Setting up the SYNK Wireless Transmitter Warning • When the transmitter is used with other equipment, leakage currents may be additive� Ensure that all systems are installed according to the requirements of IEC 60601-1� • Always set up the transmitter in a location that allows adequate ventilation�...
- Page 14 Camera Control Unit Auxiliary Display Transmitter Primary Display Printer...
- Page 15 Note: The SYNK wireless system uses a proprietary transmission method, which cannot connect to or be accessed by 802.11 devices In order to make sure that there are enough free channels for each SYNK System, follow the steps outlined below: 1�...
- Page 16 Linking the SYNK Wireless Transmitter to an Auxiliary Display The SYNK Wireless Transmitter connects to the VisionPro SYNK 26” Wireless LED Display over a radio-frequency link� Cautions • Equipment that employs RF communications may affect the normal function of the transmitter� When choosing a location for the transmitter, consult the “Electromagnetic Compatibility”...
-
Page 17: Permanently Linking The Transmitter To An Auxiliary Display
Store the token in the transmitter token slot when not in use� Permanently Linking the Transmitter to an Auxiliary Display A permanent link may be desirable in certain cases� Please contact your Stryker representative in order to permanently link the display(s) with a specific transmitter, as deemed appropriate�... -
Page 18: Troubleshooting
“Wireless RGB Cycle the hard power switch at the rear of established within 2 No Signal” the display� Cycle the hard power switch at minutes (with SYNK the front of the transmitter� Re-establish link� Wireless Transmitter)� Wireless link “Wireless RGB Cycle the hard power switch on the affected established with some No Signal”... - Page 19 Problem Current Status Remedy Conditions are not Switch to a wired video input on the display, sufficient for optimal or contact your Stryker representative� Wireless error wireless performance� symbol appears on the display�...
-
Page 20: Cleaning And Maintenance
Cleaning and Maintenance Warning To avoid electric shock and potentially fatal injury, unplug the transmitter from the electrical outlet before cleaning� Caution • Do not spray cleaning liquid directly onto the devices as product damage may result� Spray cleaning liquid on the cloth before wiping the devices� •... -
Page 21: Maintenance
<0�1 ohms, and power consumption less than or equal to rated power� Use a true RMS digital multimeter and safety analyzer to perform this test� Note: Refer calibration and operating difficulties not detailed in this manual to your Stryker Endoscopy sales representative. -
Page 22: Technical Specifications
Orthogonal Frequency Division Multiplexing with AES 256 bit encryption Antenna 5x4 MIMO Note: The SYNK wireless system uses a proprietary transmission method, which cannot connect to or be accessed by 802�11 devices� Electrical Electrical 100 – 240VAC (600-250 mA) @ 50 – 60Hz... - Page 23 FCC Identifier (VisionPro SYNK 26” Wireless LED Display): SSH- SYNKRX IC Regulations IC: 4919C-SYNKTX (SYNK Wireless Transmitter) IC: 4919C-SYNKRX (VisionPro SYNK 26” Wireless LED Display) Please contact your local Stryker Endoscopy sales representative for information on changes and new products�...
-
Page 24: Electromagnetic Compatibility
Consult the tables below for guidance in placing the display and transmitter� Like other electrical medical equipment, the VisionPro SYNK 26 " Wireless LED Display and SYNK Wireless Transmitter require special precautions to ensure electromagnetic compatibility with other electrical medical devices�... - Page 25 The VisionPro SYNK 26” Wireless LED Display and SYNK Wireless Transmitter are intended for use in the electromagnetic environment specified below� The customer or the user of the VisionPro SYNK 26” Wireless LED Display and SYNK Wireless Transmitter should ensure they are used in such an environment�...
- Page 26 The VisionPro SYNK 26” Wireless LED Display and SYNK Wireless Transmitter are intended for use in the electromagnetic environment specified below� The customer or the user of the VisionPro SYNK 26” Wireless LED Display and SYNK Wireless Transmitter should ensure that they are used in such an environment�...
- Page 27 LTE Band 7 5240 Pulse WLAN 802�11 5500 5100-5800 modulation 0�2 0�3 217 Hz 5785 Note: Portable RF Communication equipment should be used no closer than 30cm to the SYNK Wireless System� Otherwise, degradation of the performance of this equipment could result�...
-
Page 28: Symbol Definitions
Symbol Definitions The following symbols appear on the product, its labeling, or the product packaging� Each symbol carries a special definition, as defined below: Date of manufacture Legal manufacturer Quantity Catalog number Consult Instructions for Use Serial number Dangerous High Voltage Equipotentiality Warning/Caution: See DC power control switch... - Page 32 Stryker Endoscopy 5900 Optical Court San Jose, CA 95138 USA 1-408-754-2000, 1-800-624-4422 www.stryker.com Products referenced with ™ designation are trademarks of Stryker. Products referenced with ® designation are registered trademarks of Stryker. P21693 G 2018/11...
