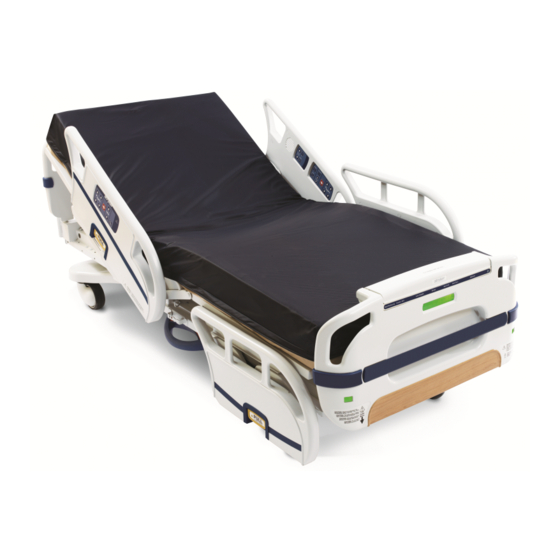

  • Page 1 Medical Stryker S3 ™ Quick Start Guide Always refer to the product label and/or operations manual before using any Stryker product.
  • Page 2 Overview Headboard Patient Controls Siderails Nurse Control Panel Footboard 120V AC Outlet (optional) Caster Siderail Release Handle Brake Pedal Siderail Controls Steer Pedal...
  • Page 3 Notes: Scales...
  • Page 4 Nurse Controls: Bed Zero/Scale (optional) Zero the bed before patient admission. Before you help the patient onto the bed, place all equipment, linens and other items needed for the patient on the bed. Press and hold Zero button and follow the instructions on the digital display.
  • Page 5 Notes: Bed Exit...
  • Page 6 Notes:...
  • Page 7 Chaperone Bed Exit System (optional): ® Arm/Disarm The bed exit system is a three-zone center-of-gravity system that tracks the position of the patient’s body weight and sounds an alarm when 50 percent of the patient’s body weight exits a zone. To Arm Before arming, make sure the bed has been properly zeroed without the patient in the bed.
  • Page 8 Chaperone Bed Exit System: Zones Zone 1 (default) Zone 2 Zone 3 Allows the patient to move Allows limited movement. Allows very minimal move- freely on the bed, but alarms Alarms when the patient ment. Alarms when patient when patient moves 50 per- approaches the siderail or moves out of the tightly cent of body weight out of...
  • Page 9 Notes: iBed Awareness ™...
  • Page 10 Nurse Controls: i Bed Awareness (optional) ™ The iBed Awareness is a bed monitoring system that allows you to monitor the brakes, siderail position, bed exit, low bed height and 30 degree HOB. To Arm Set the desired bed configuration. Push and release the iBED key (all three green lights on the footboard will illuminate).
  • Page 11 Notes: Controls...
  • Page 12 Notes:...
  • Page 13 Nurse Controls: Bed Motion Push to lower head end/raise foot end of bed. (Trendelenburg position) Push to lower foot end/raise head end of bed. (Reverse Trendelenburg position) Push to raise bed height. Push to lower bed height. Low Height will illuminate on the nurse dashboard when the bed is at its lowest height.
  • Page 14 Nurse Controls: Bed Motion Locks Bed Motion Lock* Locks all motion on bed, including siderail controls and foot end controls. Button will illuminate when activated. Fowler 30°+ Lock* Raises the Fowler to 30° and locks out the Fowler control at all locations. Fowler 30°+ on the nurse dashboard will illuminate when activated.
  • Page 15 Nurse Controls: Main Menu Features Change Scale Units (lb or kg) Press the Menu button. Scroll down using the arrow keys to Scale Units and press the ENTER button. Select lbs or kg and press the ENTER button. To Change Equipment 1.
  • Page 16 Emergency CPR Button A CPR button can be found on the footboard control panel. To Activate Press and hold the CPR button to get the bed to a full flat position. Cardiac Chair Button To Activate Press and hold the Cardiac Chair button to put the bed into a cardiac chair position.
  • Page 17 Notes: Frame...
  • Page 18 Emergency CPR Release The CPR release is located under the sleep deck near the top of the head end of the bed on both sides. To Activate Squeeze one of the two release handles, located beneath the red CPR Release labels, and the Fowler can be quickly guided down to a flat position.
  • Page 19 Integrated Pump Holder Located on the footboard and used to hang additional equipment to the bed such as CPMs or SCD machines. For Your Safety A 120V AC outlet (optional) is conveniently located under the footboard to help prevent trip hazards.
  • Page 20 120V AC Outlet (optional) A 120V AC outlet is located under the footboard at the foot end of the bed. The 120V AC outlet has its own power cord located at the head end of the bed and marked with a white tag.

  • Page 21: Intermediate Position

    Siderail Positions Precision siderails are BackSmart designed with one-hand operation and intermediate support ™ positions for patient assistance during bed entry and exit. Full Down Position Full Upright Position Intermediate Position Grasp the siderail release Grasp the top of the siderail, Grasp the siderail release and handle and rotate the siderail pull outward and swing up...

  • Page 22: Foot Prop Usage

    Foot Prop Usage The foot prop is located at the foot end of the bed under the Knee Gatch. To Activate Raise Knee Gatch and swing foot prop towards the foot end of the bed. To lower, swing foot prop towards the head end of the bed.

  • Page 23: Foley Bag Hooks

    Foley Bag Hooks Foley bag hooks are located at two locations on both sides of the frame; under the frame below the seat section and at the foot end of the frame. The isolated Foley bag hooks are located at the foot end of the bed on top of the lift header.
  • Page 24 Nightlight The switch that turns the nightlight on and off is located under the litter deck section on the patient’s left side.
  • Page 25 Centrally Located Brakes To Activate Press to set the brake. Press again to release the brake. For Your Safety LED lights located on the outside of the head end siderails and on the nurse dashboard will blink when the brakes are not engaged. In addition, an audible alarm can be turned on using the Advanced Menu Options.

  • Page 26: Steer Pedal Operation

    Steer Pedal Operation The Steer Pedal is located on the base of the bed behind the head board. To Activate Push in on one side or the other of the triangular Steer Pedal to engage (ON) or disengage (OFF). For Your Safety When the ON side is pressed, the front right caster cannot swivel.
  • Page 27 Stryker S3 Safe. Simple. Secure. For additional questions, please contact your local Stryker Account Manager.
  • Page 28 Always refer to the package insert, product label and/or operations manual before using any Stryker product. Products may not be available in all markets. Some features indicated in this Quick Start Guide are options are and may not be configured on all products. Product avail- ability is subject to the regulatory or medical practices that govern individual markets.
