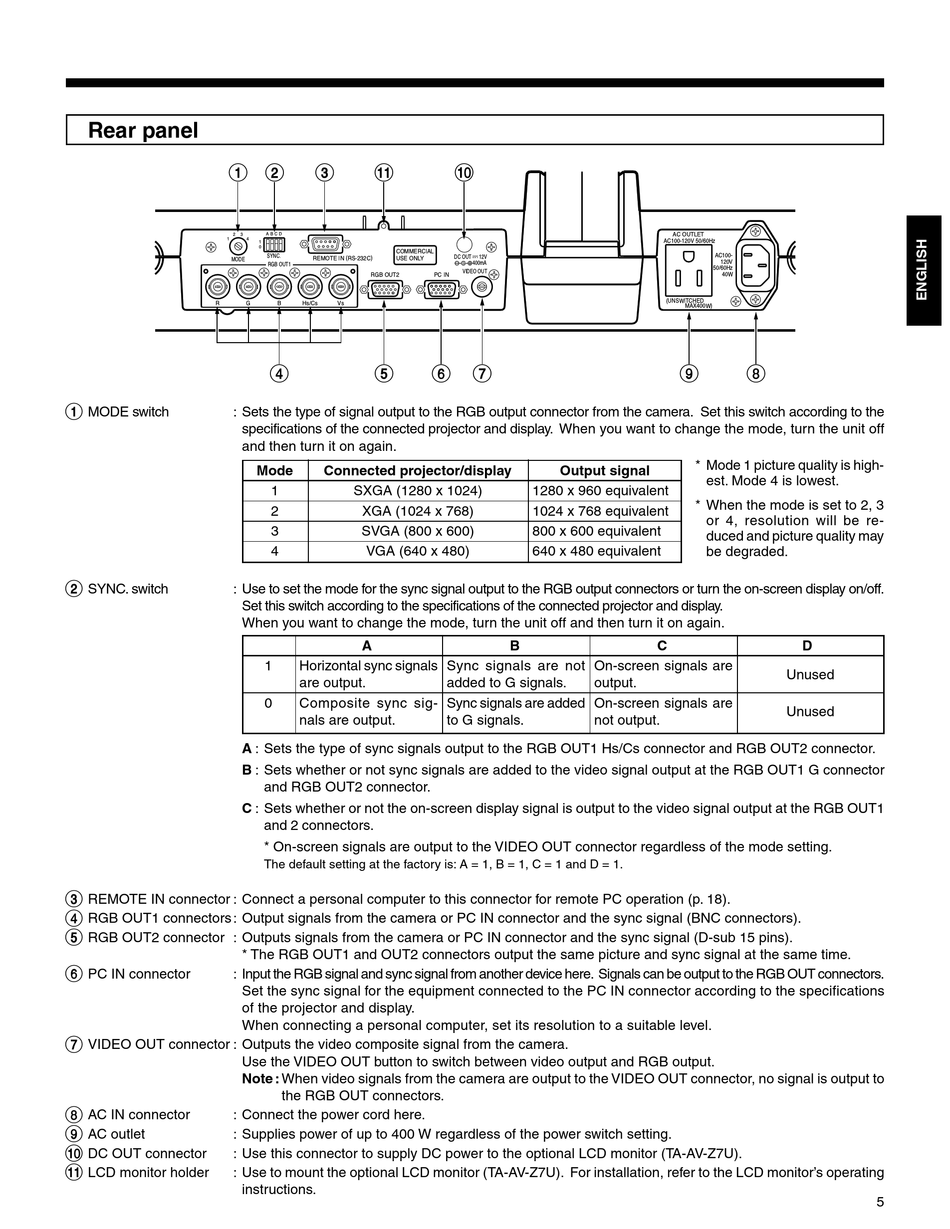

Rear panel

1 2
1
MODE switch
: Sets the type of signal output to the RGB output connector from the camera. Set this switch according to the
specifications of the connected projector and display. When you want to change the mode, turn the unit off
and then turn it on again.
2
SYNC. switch
: Use to set the mode for the sync signal output to the RGB output connectors or turn the on-screen display on/off.
Set this switch according to the specifications of the connected projector and display.
When you want to change the mode, turn the unit off and then turn it on again.
A : Sets the type of sync signals output to the RGB OUT1 Hs/Cs connector and RGB OUT2 connector.
B : Sets whether or not sync signals are added to the video signal output at the RGB OUT1 G connector
C : Sets whether or not the on-screen display signal is output to the video signal output at the RGB OUT1
3
REMOTE IN connector : Connect a personal computer to this connector for remote PC operation (p. 18).
4
RGB OUT1 connectors : Output signals from the camera or PC IN connector and the sync signal (BNC connectors).
5
RGB OUT2 connector : Outputs signals from the camera or PC IN connector and the sync signal (D-sub 15 pins).
* The RGB OUT1 and OUT2 connectors output the same picture and sync signal at the same time.
6
PC IN connector
: Input the RGB signal and sync signal from another device here. Signals can be output to the RGB OUT connectors.
Set the sync signal for the equipment connected to the PC IN connector according to the specifications
of the projector and display.
When connecting a personal computer, set its resolution to a suitable level.
7
VIDEO OUT connector : Outputs the video composite signal from the camera.
Use the VIDEO OUT button to switch between video output and RGB output.
Note : When video signals from the camera are output to the VIDEO OUT connector, no signal is output to
8
AC IN connector
: Connect the power cord here.
9
AC outlet
: Supplies power of up to 400 W regardless of the power switch setting.
0
DC OUT connector
: Use this connector to supply DC power to the optional LCD monitor (TA-AV-Z7U).
!
LCD monitor holder
: Use to mount the optional LCD monitor (TA-AV-Z7U). For installation, refer to the LCD monitor's operating
instructions.
3
!
4
5
6
Mode
Connected projector/display
1
SXGA (1280 x 1024)
2
XGA (1024 x 768)
3
SVGA (800 x 600)
4
VGA (640 x 480)
A
1
Horizontal sync signals
are output.
0
Composite sync sig-
nals are output.
and RGB OUT2 connector.
and 2 connectors.
* On-screen signals are output to the VIDEO OUT connector regardless of the mode setting.
The default setting at the factory is: A = 1, B = 1, C = 1 and D = 1.
the RGB OUT connectors.
0
7
Output signal
1280 x 960 equivalent
1024 x 768 equivalent
800 x 600 equivalent
640 x 480 equivalent
B
Sync signals are not
On-screen signals are
added to G signals.
output.
Sync signals are added
On-screen signals are
to G signals.
not output.
9
8
* Mode 1 picture quality is high-
est. Mode 4 is lowest.
* When the mode is set to 2, 3
or 4, resolution will be re-
duced and picture quality may
be degraded.
C
D
Unused
Unused
5
