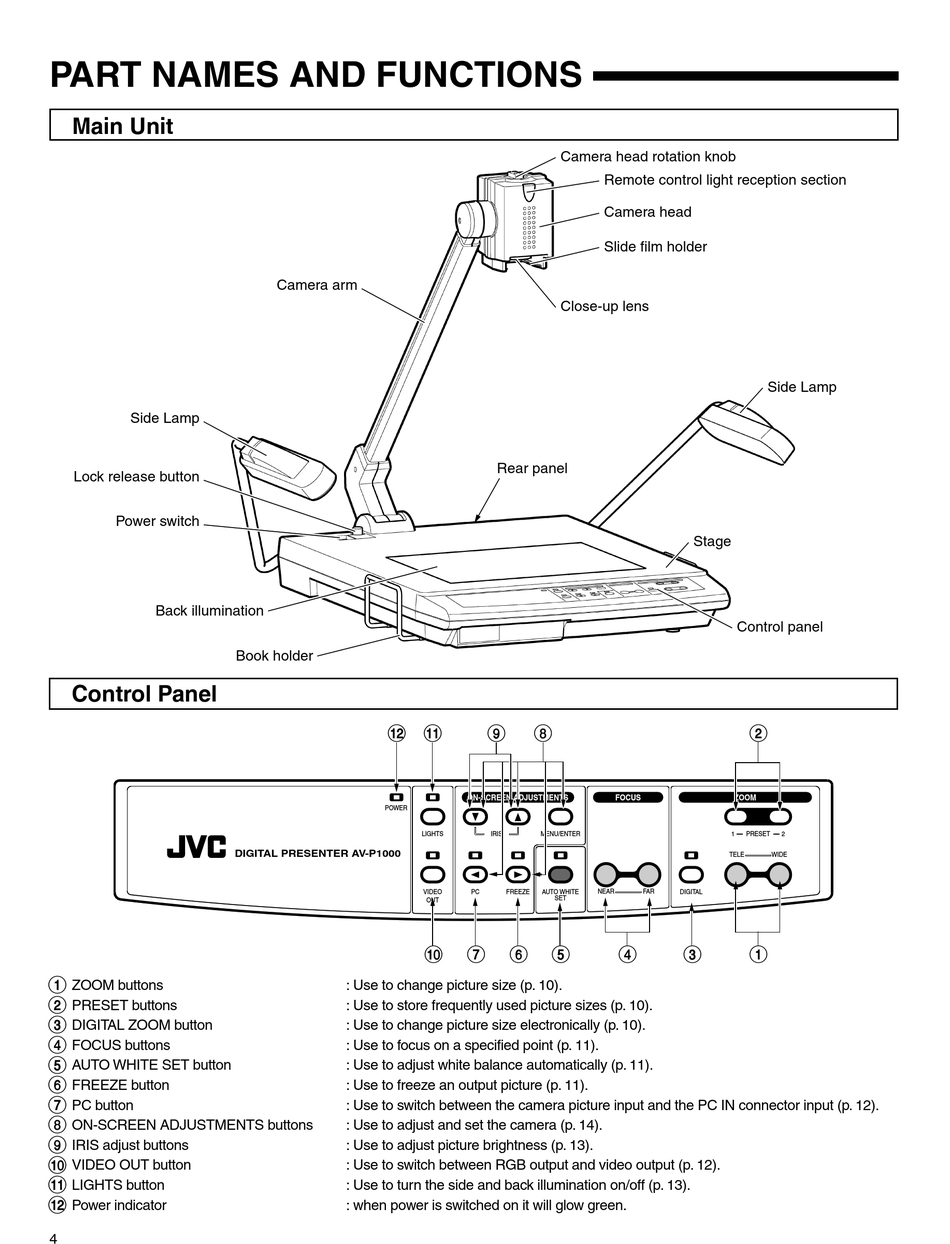

PART NAMES AND FUNCTIONS

Main Unit

Side Lamp
Lock release button
Power switch
Back illumination

Control Panel

1
ZOOM buttons
2
PRESET buttons
3
DIGITAL ZOOM button
4
FOCUS buttons
5
AUTO WHITE SET button
6
FREEZE button
7
PC button
8
ON-SCREEN ADJUSTMENTS buttons
9
IRIS adjust buttons
0
VIDEO OUT button
!
LIGHTS button
@
Power indicator
4
Camera arm
Book holder
@
POWER
DIGITAL PRESENTER AV-P1000
: Use to change picture size (p. 10).
: Use to store frequently used picture sizes (p. 10).
: Use to change picture size electronically (p. 10).
: Use to focus on a specified point (p. 11).
: Use to adjust white balance automatically (p. 11).
: Use to freeze an output picture (p. 11).
: Use to switch between the camera picture input and the PC IN connector input (p. 12).
: Use to adjust and set the camera (p. 14).
: Use to adjust picture brightness (p. 13).
: Use to switch between RGB output and video output (p. 12).
: Use to turn the side and back illumination on/off (p. 13).
: when power is switched on it will glow green.
Camera head rotation knob
Close-up lens
Rear panel
!
9
8
ON-SCREEN ADJUSTMENTS
LIGHTS
IRIS
MENU/ENTER
VIDEO
PC
FREEZE
AUTO WHITE
NEAR
SET
OUT
0
7
6
5
Remote control light reception section
Camera head
Slide film holder
Side Lamp
Stage
Control panel
2
FOCUS
ZOOM
1
PRESET
2
TELE
WIDE
FAR
DIGITAL
4
3
1
