R Fan As; Eva As - Kenmore RFP74KB Series Service Manual

10. Disassemble/Assemble Procedures

10-4. R Fan AS

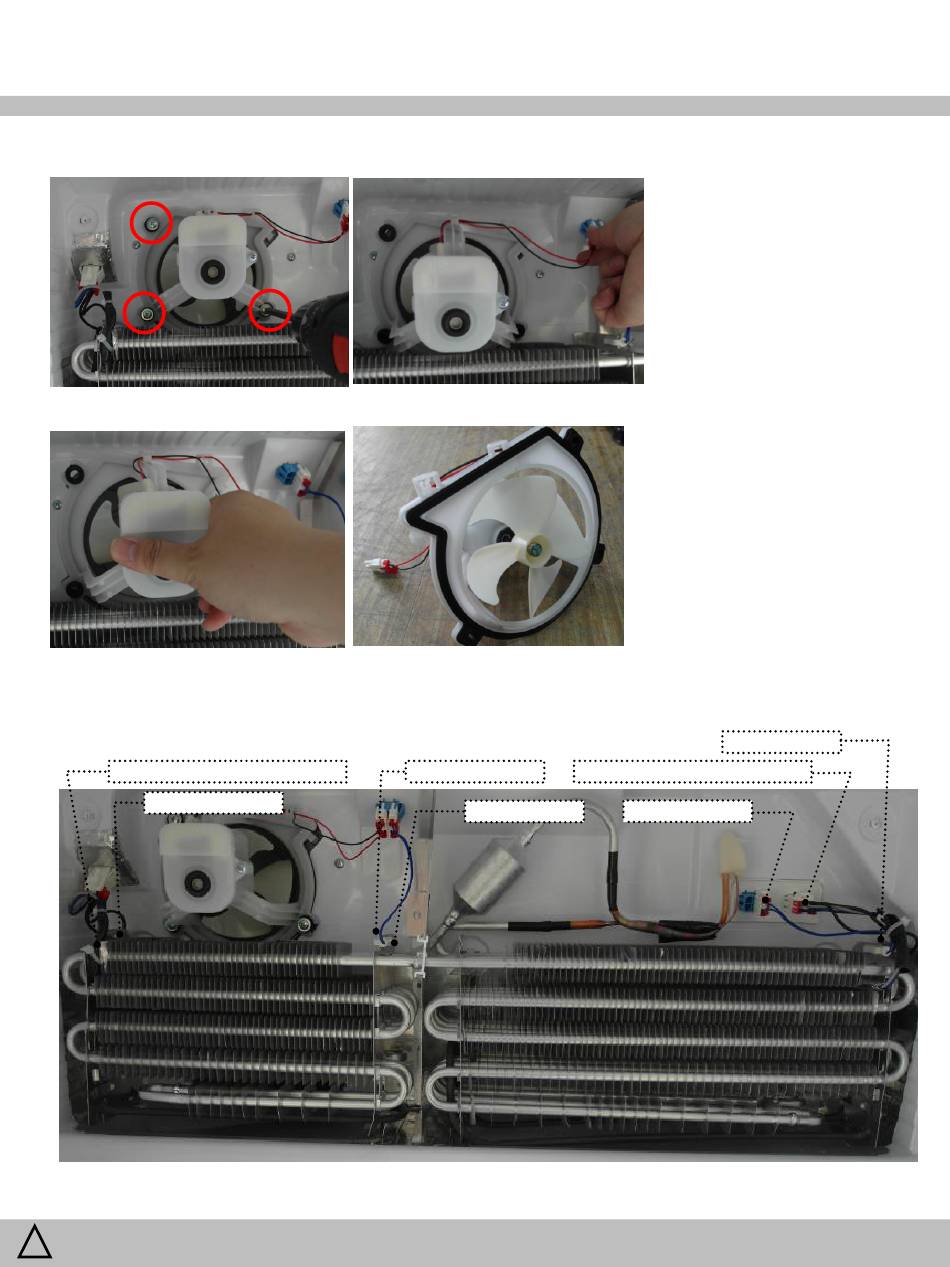

* Remove screws(3ea) of Fixture R
Motor B.
* Pull forward R Fan AS.

10-5. EVA AS

R Defrost Heater & Temp Fuse
Screw of EVA
To avoid risk of electrical shock that can cause death or severe personal injury,
WARNING
!
disconnect unit from power before servicing unless tests require power.
* Remove Housing R Fan AS.
* Separate R Fan AS.
R Defrost Sensor
Screw of EVA
28
Screw of EVA
F Defrost Heater & Temp Fuse
F Defrost Sensor
