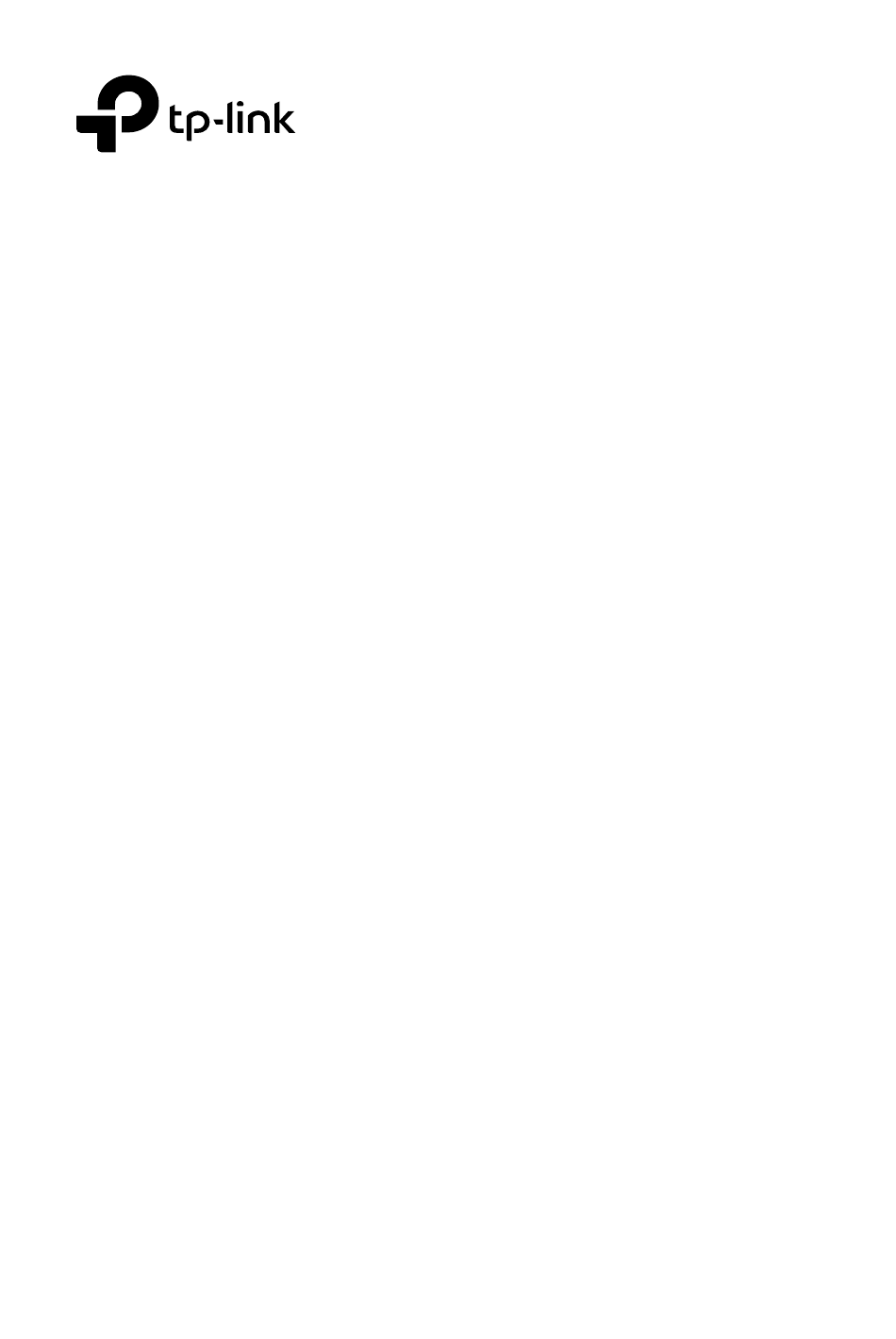

GPON OLT Products User Manual
P1201-08
---Quick Configuration Guide
Version：V1.0
1910020846
REV1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1201-08 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link P1201-08

Summary of Contents for TP-Link P1201-08

  • Page 1 GPON OLT Products User Manual P1201-08 ---Quick Configuration Guide Version：V1.0 1910020846 REV1.0.1...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.

  • Page 3: Table Of Contents

    Content Instruction ......................1 Revision History ....................... 1 Proper Noun ........................1 Note ........................... 1 OLT Login Manage ....................2 OLT Login Manage Explanation ................2 OLT Login By Console ..................2 OLT Login By Telnet .................... 3 OLT Upgrade ......................4 Configure Service In OLT Discrete Mode（Non-Template）...
  • Page 4 Check ONT Registration Status ................26 Configure Bridge ONT（SFU）Service ............27 5.7.1 Configure Bridge ONT (SFU) Internet Service ..........27 5.7.2 Configure Bridge ONT (SFU) IPTV Service ..........27 Gateway ONT（HGU）Service Configure Introduction ........28 Configure OLT QinQ Service ................28 Data Plan ......................

  • Page 5: Instruction

    If we meet a command that cannot be inputted or is prompted for error, we can input “?” to see the latter command format.  Input incomplete commands can be completed by pressing the “Tab” key.  P1201-08 is Pizza-Box OLT，only have one card，so, if we want to enter PON mode, need input interface gpon 0/0...

  • Page 6: Olt Login Manage

    2. OLT Login Manage 2.1 OLT Login Manage Explanation P1201-08 OLT support CLI management; CLI manage type divided into telnet remote manage and console local manage, please check #2.2 and #2.3 chapter to see concrete operations; please check EMS user manual to see EMS manage way; please check #4 to see WEB manage way.

  • Page 7: Olt Login By Telnet

    Port on Computer Required Cable Port on OLT Serial Port RJ-45 to DB-9 Console Cable  USB to RS-232 compatible serial port adapter ( Adapter may RJ-45 Console Port USB Type-A Port require a software driver )  RJ-45 to DB-9 Console Cable 2.3 OLT Login By Telnet There are two way to telnet, one is outband management, another is inband management.

  • Page 8: Olt Upgrade

    OLT(interface-vlanif-100)# ip address 192.168.2.100 255.255.255.0 OLT(interface-vlanif-100)# exit 3. OLT Upgrade Set up OLT update topology: Use a PC as FTP server (run wftpd32.exe or Wftpd.exe in this pc), and connect to OLT mgmt port or ge port to transmit firmware. Test network connectivity a) Connect PC to OLT console port, used for updating OLT in boot mode.

  • Page 9: Configure Service In Olt Discrete Mode（Non-Template

    OLT update command P1201-08 OLT only need to update a file, if the boot file is too old, we need update boot file in OLT boot mode, boot upgrade way will be provided separately. OLT the common upgrade method please see below: a.

  • Page 10: Ftth Service Topology

    4.1 FTTH Service Topology 4.2 Data Plan Main Data Plan List Configure Iteam Data Ge1： VLAN 100 access mode OLT Port Config Ge2： VLAN 200 access mode Ge3： VLAN 300 access mode DBA Profile（upload Profile number： 1 bandwidth control） Profile ID：0 T-CONT ID：1 ONT Lineprofile Internet GEM Port ID：...

  • Page 11: Config Process

    4.3 Config Process 4.4 Configure OLT Service 4.4.1 Configure OLT Global Vlan In config mode, we can use OLT(config)# show vlan all to show the created vlan. If the created vlan can’t meet the need, we can use command OLT(config)# vlan vlan-list to create new vlan, According to the data plan, we create vlan100,vlan200,vlan300 firstly: OLT(config)# vlan 100 OLT(config)# vlan 200...
  • Page 12 OLT(config-interface-ge-0/0)# vlan mode 1-3 trunk OLT(config-interface-ge-0/0)# vlan trunk 1 100 OLT(config-interface-ge-0/0)# vlan trunk 2 200 OLT(config-interface-ge-0/0)# vlan trunk 3 300 OLT(config-interface-ge-0/0)# exit Configure GE 1、2、3 vlan mode is hybrid： OLT(config)# interface ge 0/0 OLT(config-interface-ge-0/0)# vlan mode 1-3 hybrid OLT(config-interface-ge-0/0)# vlan hybrid 1 tagged 100 OLT(config-interface-ge-0/0)# vlan hybrid 2 tagged 200 OLT(config-interface-ge-0/0)# vlan hybrid 3 tagged 300 OLT(config-interface-ge-0/0)# exit...

  • Page 13: Configure Dba Profile

    untag Discard If the VLAN in the message is permit to pass port, it will be forwarded directly; If the vlan tag VLAN in the message doesn’t permit to pass port, it is discarded. Add default vlan(native-vlan) for untagged untag message and forward.

  • Page 14: Configure Ont Srvprofile

    4.4.5 Configure ONT Srvprofile In OLT discrete mode, ONT is automatically registered. When ONT online it would bind system default lineprofile 0 and srvprofile 0 automatically. In this user manual don’t modify ont srvprofile 0 configuration and use it directly. 4.4.6 Configure OLT Multicast vlan OLT(config)# multicast-vlan 200 OLT(config-multicast-vlan-200)# igmp member port gpon 0/0/1...

  • Page 15: Configure Bridge Ont (Sfu) Multicast Service

    OLT(config)# traffic-profile profile-id 1 profile-name 10M cir 10240 pir 10240 cbs 2000 pbs 2000 Configure ONT1 eth1 vlan mode is tag(access): OLT(config)# interface gpon 0/0 OLT(config-interface-gpon-0/0)# ont port native-vlan 1 1 eth 1 vlan 100 OLT(config-interface-gpon-0/0)# exit Config service port: OLT(config)# service-port 3 vlan 100 gpon 0/0 port 1 ont 1 gemport 2 multi-service user-vlan 100 tag-action transparent inbound name 10M outbound name 10M NOTE：...

  • Page 16: Configure Gateway Ont（Hgu）Service

    OLT(config-interface-gpon-0/0)# exit Config service port: OLT(config)# service-port 4 vlan 200 gpon 0/0 port 1 ont 1 gemport 3 multi-service user-vlan 200 tag-action transparent inbound name 20M outbound name 20M ----End 4.7 Configure Gateway ONT（HGU）Service Gateway ONT（HGU）can provide internet, VOIP,IPTV service for FTTH, support PPPOE/DHCP dial-up, NAT, IGMP.
  • Page 17 NOTE： Mode select Route. Check Enable VLAN and Vlan ID input 100. Service Mode select INTERNET. Bind port check Port_1 and wireless (SSID). Internet service take DHCP mode as an example in this document. The service type please select suitable type according to the user's actual environment. ONT detail usage please refer to ONT user manual.

  • Page 18: Configure Gateway Ont（Hgu）Multicast Service--Rtk Solution

    4.7.2 Configure Gateway ONT（HGU）Multicast Service--RTK Solution premise condition  OLT connect to uplink device and open multicast service  OLT have created vlan for multicast  OLT have configured GE port multicast vlan  ONT have registered 1. Create service port OLT(config)# service-port 5 vlan 200 gpon 0/0 port 1 ont 2 gemport 3 multi-service user-vlan 200 tag-action transparent 2.

  • Page 19: Configure Gateway Ont（Hgu）Internet Service--Zte Solution

    Click Application Multicast Vlan 3_Other_B_VID_200 Modify. Input 200 behind VLAN multicast (blank said set). 5. Check ONT multicast wan status Click StatusInternet Info ----end 4.7.3 Configure Gateway ONT（HGU）Internet Service--ZTE Solution premise condition  OLT connect to uplink device and open internet service ...
  • Page 20 NOTE： Type select to DHCP. Connection Name select to Create WAN Connection. Port Binding check LAN1, LAN2, LAN3 and SSID1. Service List select to INTERNET. VLAN Mode select to Used. VLAN ID enter 100. Enable DHCP and Enable NAT keep default checked status. In this document, Internet service take DHCP mode as an example.

  • Page 21: Configure Gateway Ont（Hgu）Multicast Service--Zte Solution

    4.7.4 Configure Gateway ONT（HGU）Multicast Service--ZTE Solution premise condition  OLT connect to uplink device and open multicast service  OLT have created vlan for multicast  OLT have configured GE port multicast vlan  ONT have registered 1. Config Config service port OLT(config)# service-port 7 vlan 200 gpon 0/0 port 1 ont 3 gemport 3 multi-service user-vlan 200 tag-action transparent 2.
  • Page 22 4. Configure multicast vlan on ONT web Click AppNormal AppIPTV. Modify the Bridge WAN 2_Other_B_VID_200 Multicast VLAN enter 200. Then click Modify.

  • Page 23: Configure Gateway Ont（Hgu）Voip Service--Zte Solution

    4.7.5 Configure Gateway ONT（HGU）VOIP Service--ZTE Solution premise condition  OLT connect to uplink device and open multicast service  OLT have created vlan for VOIP  OLT have configured GE port VOIP vlan  ONT have registered 1. Config Config service port OLT(config)# service-port 8 vlan 300 gpon 0/0 port 1 ont 3 gemport 4 multi-service user-vlan 300 tag-action transparent 2.
  • Page 24 3. Configure ONT VOIP Click AppVoip configurationSIP. Enther Sip server ip address.
  • Page 25 4. Configure ONT VOIP Account Click AppVoip Configurationaccount information. Enter Sip account information. NOTE： Sip Account, Password, Authentication user name please modify according to the user's actual need. 5. Check Sip account register status Click StatusVoIP StatusRegister Status.

  • Page 26: Configure Service In Olt Profile Mode

    ----end 5. Configure Service In OLT Profile Mode This section is mainly introduce P1201-08 OLT internet service, voice service and multicast service in profile mode in FTTH environment. we can configure different service profile based on different types of ONT, which can be handled flexibly. Mainly introduce the bridge ONT(SFU) and family gateway ONT (HGU),The following will introduce the service configure way for OLT and ONT according to two types ONT.

  • Page 27: Configure Olt Service

    5.3 Configure OLT Service 5.3.1 Configure OLT Globle Vlan In config mode,we can use OLT(config)# show vlan all to show the created vlan. If the created vlan can’t meet the need, we can use command OLT(config)# vlan vlan-list to create new vlan,According to the data plan, we create vlan100,vlan200,vlan300 firstly: OLT(config)# vlan 100 OLT(config)# vlan 200...

  • Page 28: Configure Olt Multicast Service

    OLT(config-interface-ge-0/0)# vlan mode 1-3 trunk OLT(config-interface-ge-0/0)# vlan trunk 1 100 OLT(config-interface-ge-0/0)# vlan trunk 2 200 OLT(config-interface-ge-0/0)# vlan trunk 3 300 OLT(config-interface-ge-0/0)# exit Configure GE 1、2、3 port vlan mode is hybrid： OLT(config)# interface ge 0/0 OLT(config-interface-ge-0/0)# vlan mode 1-3 hybrid OLT(config-interface-ge-0/0)# vlan hybrid 1 tagged 100 OLT(config-interface-ge-0/0)# vlan hybrid 2 tagged 200 OLT(config-interface-ge-0/0)# vlan hybrid 3 tagged 300 OLT(config-interface-ge-0/0)# exit...

  • Page 29: Create Ont Lineprofile

    NOTE： DBA based on the entire ONT schedule, we need to select the appropriate bandwidth type and bandwidth size according to the service type and ont users number. The summation of fixed bandwidth (fix) and guarantee bandwidth (assure) not surpass the total bandwidth of PON port. 5.4.2 Create ONT Lineprofile OLT(config)# ont-lineprofile gpon profile-id 1 OLT(config-ont-lineprofile-1)# tcont 1 dba-profile-id 1...

  • Page 30: Add Ont Manually

    //finish config,use commit command to make parameter effect 5.5 Add ONT Manually 1. Modify PON port ONT authentication method to manual registered. OLT(config)# interface gpon 0/0 OLT(config-interface-gpon-0/0)# ont authmode all manual 2. Open pon port ONT automatic find function: OLT(config)# interface gpon 0/0 OLT(config-interface-gpon-0/0)#ont autofind 1 enable OLT(config-interface-gpon-0/0)#show ont autofind 1 all //This command show all unregistered ONT information that is connected to the GPON port by the...

  • Page 31: Configure Bridge Ont（Sfu）Service

     If the ONT not online, the “Run state” is “offline”, it may be a physical line break, or optical module is damaged, so we need to check all device and the physical line.  If the ONT “config state” is “failed”, it means ONT’s configuration is not applicable to some configuration of srvprofile, we need to capture packet on the ONT and analyze ont not accept which configuration.

  • Page 32: Gateway Ont（Hgu）Service Configure Introduction

    iptv service in srvprofile and discrete mode,the discrete configuration priority is higher than the profile configuration, when ONT iptv service in discrete configuration is default, will apply profile configuration),#4.5 show the discrete config, profile config is introduced as follows, we can according to our network plan configure different vlan mode, configure way as follows: 1.

  • Page 33: Configure Processes

    Gateway Port LAN 1：VLAN 100 Configure 6.2 Configure Processes Start Create OLT global vlan Create Ge port vlan Configure ONT VLAN Configure QinQ Save configuration 6.3 Configure OLT Create outer vlan： Oprate show vlan all command can query the existing vlan,If the existing vlan does not meet the need, we can use vlan command to create outer vlan.

  • Page 34: Common Command Description

    OLT(config)# service-port 10 vlan 400 gpon 0/0 port 1 ont 1 gemport 2 multi-service user-vlan 100 tag-action default 7. Common Command Description Command Description Enter OLT PON board（Apply to interface gpon 0/0 P1201-08 OLT box OLT , all default is 0/0） Enter OLT uplink(ge) board（In interface ge 0/0 default, box OLT all is 0/0）...
