INTRODUCTION
This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas
heating appliances. It has a built-in thermostat. This all battery system operates independently of household current. The
system operates on radio frequencies with a non-directional signals. The systems operating range is approximately
20-feet. The system operates on one of 10,000,000 security codes that are programmed into the transmitter at the
factory, the remote receiver's code must be matched to that of the transmitter prior to initial use. It is designed to be used
with millivolt gas valves as a dry contact switch.

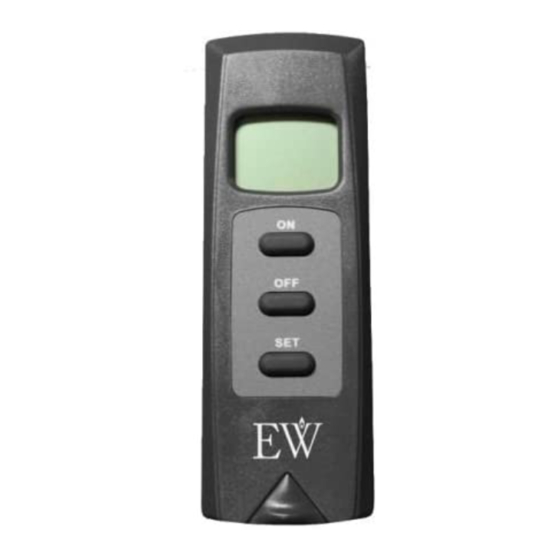

LCD Screen
ON
ON-OFF Buttons
OFF
SET
Thermo/Set Button
FRONT
FRONT
The transmitter operates on (1) 3V Button Cell (included)
that powers the RF signal. Before using the transmitter, the
3V battery must be installed into the battery compartment.
Tools Needed: Small jewelers screwdriver

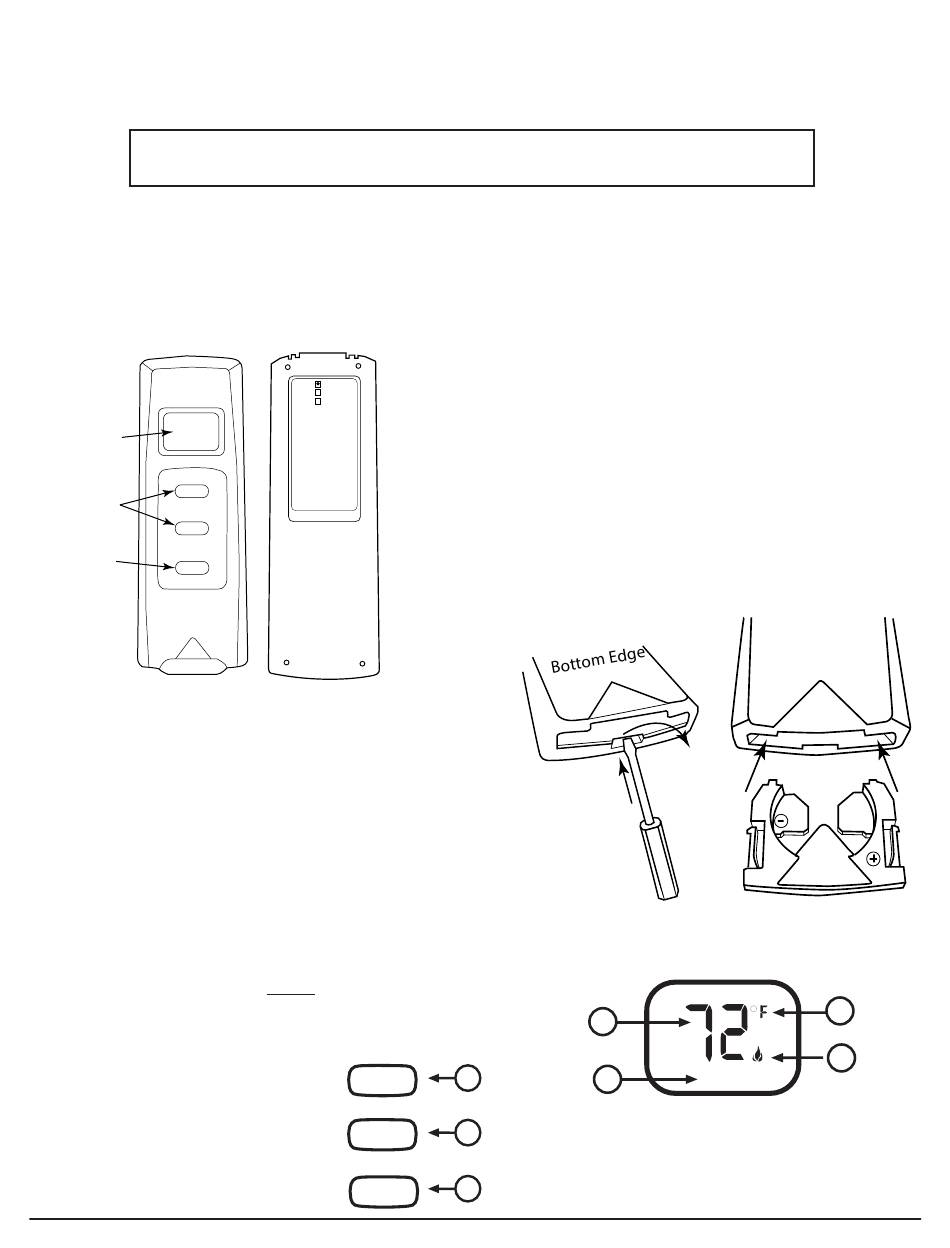

To remove the battery holder from the bottom of the
transmitter insert a small jewelers screwdriver into the
notch at the bottom of the transmitter, then gently pry out
the battery holder out. Once it is started, it will pull out
with your fingers. Insert the 3-volt button cell battery in the
battery holder with the plus (+) side up. See the drawings at
the right.
It is recommended that CR2032 lithium battery always
be used for longer battery life and maximum operational
performance.
1 ON - Operates unit to ON position,
Manually ON.
2 OFF - Operates unit to OFF position,
Manually OFF.
3 SET - Sets temperature in THERMO
mode.
Model: 4001TH-A TX
Model: 4001TH-A TX
INSTALLATION AND OPERATING INSTRUCTIONS
The transmitter has ON and OFF and THERMOSTAT functions. If
MODEL:
the LCD screen is not working, check the position of the transmitter's
battery.
BACK
BACK
ON
OFF
SET
Liquid Crystal Display (LCD)
1
1
4
2
3
Bottom of
Transmitter
THERMO
1 ROOM Temperature
2 ºF or ºC Icon
3 "ON" Flame Icon
4 THERMO Mode
REV. 3-31-20 Page 1
2
3
Advertisement
Table of Contents
Related Manuals for Skytech 4001TH-A TX
Summary of Contents for Skytech 4001TH-A TX
- Page 1 Model: 4001TH-A TX INSTALLATION AND OPERATING INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE INTRODUCTION This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances.
-
Page 2: Manual Function
When THERMO is OFF, the flame icon will not be displayed. See THERMO-OFF drawing. Press and release the OFF button to disengage the thermo mode. The word THERMO on the LCD screen will not show when the thermo is not in operation. Model: 4001TH-A TX REV. 3-31-20 Page 2... -
Page 3: Installation Instructions
(included) be used to make connections between the terminal wiring block on the millivolt gas valve or electronic module and the wire terminals on the remote receiver. For the best results use wire with no splices and measuring no longer than 20-feet. Model: 4001TH-A TX REV. 3-31-20 Page 3... -
Page 4: Hearth Mount
The remote receiver can be placed on the fireplace hearth or under the fireplace, behind the control access panel. Position where the ambient temperature inside the receiver case does not exceed 130º F. NOTE: Black slide button (accessory pack) is used on Hearth Mount Applications. Model: 4001TH-A TX REV. 3-31-20 Page 4... -
Page 5: Wiring Instructions
ON and OFF thermostatically as the ROOM temperature changes, but only when the temperature differential between ROOM and SET temperatures differ at least 1°F (1°C). The 1° F differential is the factory setting. Model: 4001TH-A TX REV. 3-31-20 Page 5... -
Page 6: Battery Life
130º F. • If RECEIVER is installed in tightly enclosed metal surround, the operating distance will be shortened. • Ensure the transmitter is within 20-25 feet of the receive for proper operating range. Model: 4001TH-A TX REV. 3-31-20 Page 6... -
Page 7: Specifications
BATTERIES: Transmitter 3V button cell (CR2032) Remote Receiver 6V – 4ea. AA 1.5 Alkaline FCC ID No’s. Transmitter: K9L-4001THATX Canadian IC ID No.’s: Transmitter 2439A-4001THATX Operating Frequency: 433.92MHZ See your supplier for warranty details of this product. Model: 4001TH-A TX REV. 3-31-20 Page 7...
