IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT

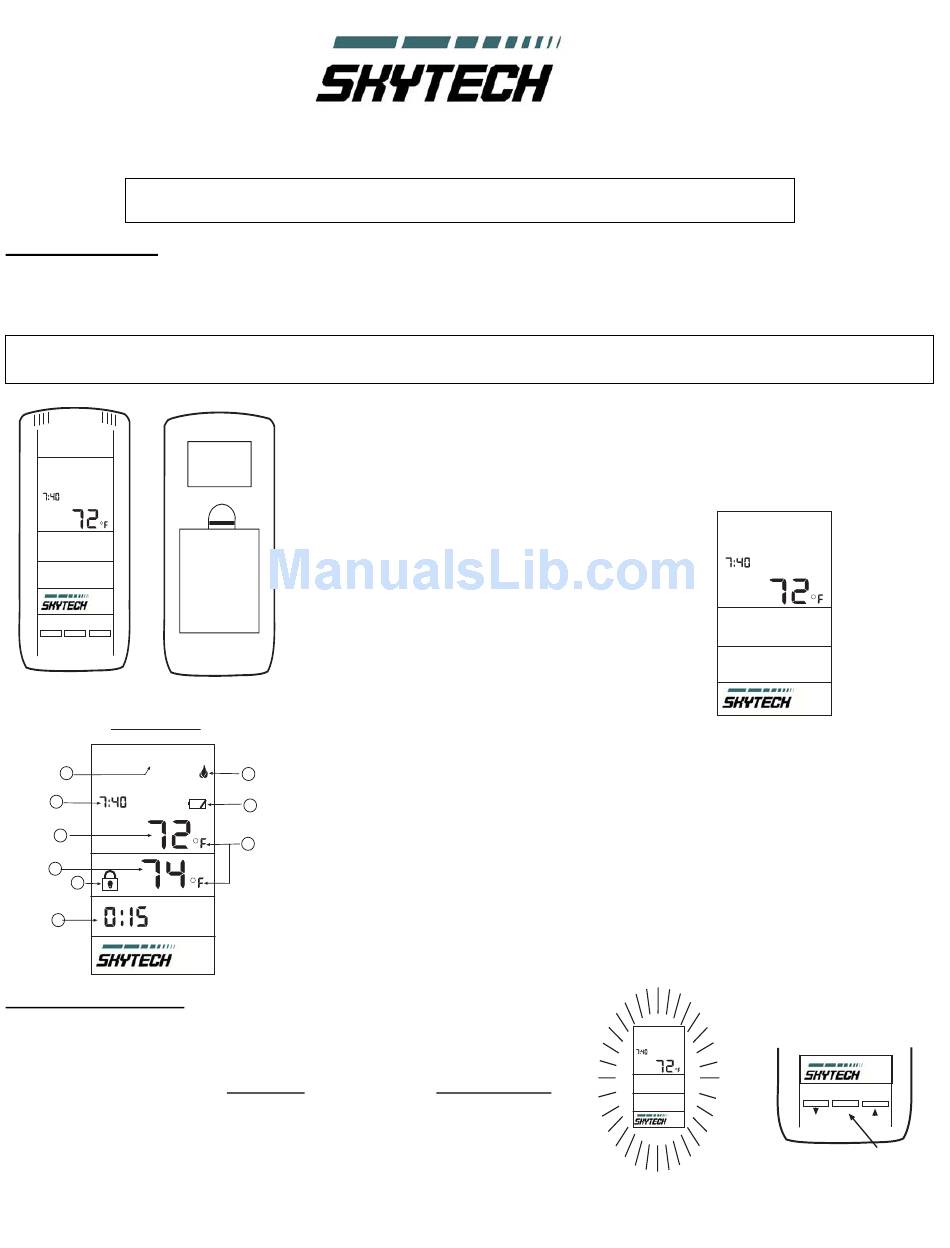

INTRODUCTION

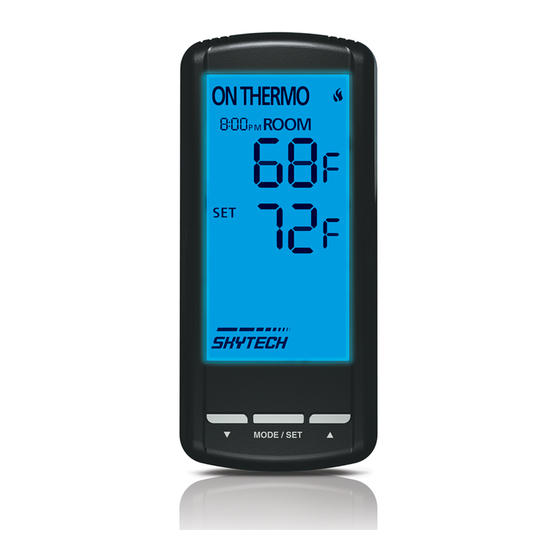

This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating
appliances. The system can be operated thermostatically or manually from the transmitter. The system operates on radio frequencies (RF)
within a 20' range using non-directional signals. The system operates one of 1,048,576 security codes that are programmed into the
transmitter at the factory; the remote receiver's code must be matched to that of the transmitter prior to initial use.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section and THERMO SAFETY SECTION under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially unsafe condition exists.
OFF
ROOM
PM
SET
TIMER
OFF
MODE/SET
FRONT
LCD DISPLAY SCREEN
OFF
ON
THERMO
3
AM
6
ROOM
PM
7
SET
4
9
2
TIMER
ON OFF
OPERATION FUNCTIONS
Note: Touch anyplace on the screen and the screens blue back light will light up
and stay on (5) seconds.
To operate the system, press the MODE/SET button or press the MODE SECTION on
the LCD screen on the front of the transmitter to select the operational MODE desired.
•
ON indicates the system is on, either manually, timed or thermostatically.
•
THERMO indicates the system will automatically cycle ON/OFF, depending
•
on programmed set temperature.
•
OFF indicates the entire system is turned off.
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on 4 AAA-size 1.5V batteries. It is recommended that ALKALINE
batteries always be used for longer battery life and maximum operational performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the multi-
function transmitter. Insert 4 AAA-size 1.5 V batteries into the battery compartment on the back
of the transmitter, positioning the (+) and (-) ends of the batteries as indicated on the casing.
When the batteries are inserted, the screen at right (with
similar numbers) will display.
Note On initial start up if a LOW battery icon appears on
the screen, check the position of the batteries.
BATTERY
COMPARTMENT
Note: Due to the sensitive temperature-monitoring
components in the transmitter, it may be necessary to
allow the transmitter to stabilize to room temperature
before accurate room temperatures are displayed on
the screen. If the transmitter is activated from a
severe cold condition, it can take up to fifteen minutes
BACK
for accurate temperature readings to appear.
1.
BATTERY ICON - Battery power is low. Replace batteries within two weeks.
2.
TIMER- Indicates time remaining before system shuts off, when timer-programmed;
5
9-hour maximum setting.
3.
MODE- Indicates operation MODE of system. ON indicates the system is on, either
1
manually or thermostatically. OFF indicates the entire system is turned off THERMO
indicates the system will automatically cycle on/off, depending on programmed
8
4.
SET- Indicates desire SET room temperature for THERMO operation
5.
FLAME – Indicates burner/valve in operation.
6.
CLOCK – Indicates the current time in AM/PM
7.
ROOM – Indicates CURRENT room temperature.
0
8.
F indicates degrees Fahrenheit (ºC indicates degrees Celsius).
9.
LOCK – Child lock out.
5301
OFF
AM
ROOM
PM
SET
TIMER
OFF
OFF
AM
ROOM
PM
SET
TIMER
OFF
REV
11/27/07 Page
MODE/SET
MODE/SET
1 of 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skytech 5301
Summary of Contents for Skytech 5301
- Page 1 INTRODUCTION This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating appliances. The system can be operated thermostatically or manually from the transmitter. The system operates on radio frequencies (RF) within a 20’...
- Page 2 SETTING THE CLOCK NOTE: When setting the clock the transmitter must be in the OFF position ROOM Touch the word TIMER on the LCD screen of the transmitter for more than two seconds. The hour digit(s) will begin flashing. Press the UP or DOWN button until the desired hour is displayed in AM or PM. After setting the desired hour, again touch and the word TIMER on the LCD screen for more than two seconds the minutes digits will begin flashing.
- Page 3 MANUAL CHECK OF “ SWING” OR TEMPERATURE DIFFERENTIAL The operation of the factory set “THERMO SWING” can be checked by adjusting the SET TEMP 2 F above or below the room temperature. This will cause the system to turn ON or OFF. Normally the system will only respond to temperature changes every two minutes. Manually changing the SET temperature will activate the system in less than 10 seconds.
- Page 4 THERMO UPDATING FEATURE –TRANSMITTER – (T/S –TX) This SKYTECH remote control has a THERMO UPDATING Feature built into its software. The THERMO UPDATING Feature operates in the following manner, but only in the THERMO MODES: The transmitter normally reads the ROOM temperature every 2 minutes checking the ROOM temperature against the SET temperature and then sends a signal to the receiver.
- Page 5 This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely before attempting installation. Follow instructions carefully during installation. Any modifications of the SKYTECH remote control or any of its components will void the warranty and may be pose a fire hazard.
-
Page 6: Wiring Instructions
Install the remote receiver into the plastic switch box using the two long screws provided. Push the slide Button over the receiver slide switch only after making sure the remote receiver has LEARNED the Receiver transmitter’s security code (see MATCHING SECURITY CODES). NOTE: slide Slide Button Button covers both ADJ and Learn holes when properly installed. -
Page 7: General Information
BATTERY LIFE Life expectancy of alkaline batteries in the SKYTECH 5301 should be at least 12 months. Check and replace all batteries annually. When the Transmitter no longer operates the receiver from a distance it did previously (i.e., the transmitter’s range has decreased) or the remote receiver does not function at all, the batteries should be checked. -
Page 8: Fcc Requirements
TROUBLE SHOOTING Should you encounter problems with your fireplace system, the problem may be with the fireplace itself or it could be with the SKYTECH remote control. Review the fireplace manufacturer’s operation manual to make sure all connections are properly made. Then check the operation of the SKYTECH remote in the following manner: Make sure receiver batteries are installed properly.
