IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION
INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE

INTRODUCTION

This remote control system was developed to provide a safe, reliable and user-friendly system for gas heating appliances.

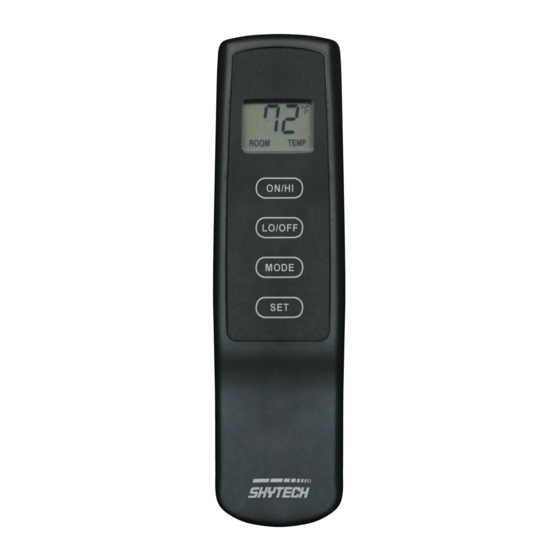

TRANSMITTER

ON
BUTTON
ON
MODE
BUTTON
OFF
MODE
OFF
BUTTON
SET
SET
BUTTON
BATTERY
COMPARTMENT
FRONT
1
4 ROOM
SET
TEMP
6
SETTING ºFAHRENHEIT / ºCELSIUS SCALE
The factory setting for temperature is ºF. To change the displayed
temperature scale, press the ON and OFF keys at the same time.
Follow this same procedure to return to ºF.

MANUAL FUNCTION

ON OPERATION
Press the ON key to turn the appliance on. (The flame icon will ap-
pear on the LCD screen).
OFF OPERATION
Press the OFF key to turn the appliance off. (The flame icon will
disappear from the LCD screen).
Skytech 1001TH-A
Model: 1001TH - A
INSTALLATION AND OPERATING INSTRUCTIONS
WALL CLIP
SLOT
The transmitter operates on (2) 1.5V AAA batteries. It is recommended that ALKALINE
batteries always be used for this product. Be sure the batteries are installed with the (+)
and (-) ends facing the correct direction, and are fully charged.

KEY SETTINGS

1. ON
2. OFF - -
3. MODE
4. SET - -
BACK

LCD - LIQUID CRYSTAL DISPLAY

1. Display - - - - - - - - - -
2
2. Fahrenheit or Celsius
3. Flame - - - - - - - - - - -
3
4. Room - - - - - - - - - - -
5 5. Temperature - - - - - -
6. Set - - - - - - - - - - - - -
Turns appliance on
- - -
Turns appliance off
Cycles control between manual and thermo mode.
Sets temperature in thermo mode.
Indicates current room temperature.
Indicates degrees Fahrenheit or Celsius.
Indicates appliance is on.
Indicates remote is in thermo mode.
Appears during manual operation.
Appears when
SCREEN WHILE DEPRESSING
SCREEN WHILE DEPRESSING
setting the desired temperature in thermo mode.
TEMP
SCREEN AFTER 3 SECOND
ON KEY
SCREEN AFTER 3 SECOND
OFF KEY
1
ON
2
OFF
3
MODE
4
SET
TEMP
DEFAULT
TEMP
DEFAULT
REV 4/11/11 Page 1
