INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas heating appliances. The
system can be operated manually from the transmitter.
TRANSMITTER
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
BATTERY
COMPARTMENT
FRONT
RECEIVER
Install the (4) AA-size batteries supplied with the unit. It is recommended that ALKALINE batteries always be used for this product. Be
sure the batteries are installed with the (+) and (-) ends facing the correct direction.
The remote receiver has a 3-position slide switch for selecting the mode of operation
ON/REMOTE/OFF
•
ON
: will manually turn on the appliance.
•
REMOTE
: will allow use of handheld transmitter. If the system does not respond
to the transmitter on initial use, check the battery positions in the remote. If that
does not work, see the SECURITY CODE section.
•
OFF
: will disable the remote receiver.
•
It is suggested that the slide switch be placed in the OFF position if you will
be away from your home for an extended period of time.

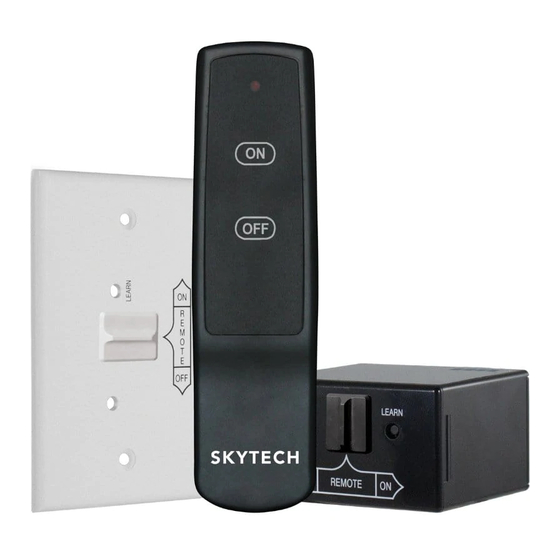

Skytech 1001-A
MODEL: 1001 - A
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on a 12V (A23) battery that is included. Install the 12V battery sup-
plied with the unit into the battery compartment. It is recommended that ALKALINE batteries
always be used for this product. Be sure the batteries are installed with the (+) and (-)
ends facing the correct direction.
The LED signal light should illuminate when either the ON or OFF button is pressed. If the
signal light does not illuminate, check the position of the transmitter's battery, and if the bat-
tery is fully charged.
BACK
Requires 4-AA 1.5V
alkaline batteries
Learning
button
Slide
Switch
ON
REMOTE
OFF
Remote Receiver
REV 4/15/11 Page 1
