IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION
INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE
INTRODUCTION
This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas
heating appliances. This all battery system operates independently of household current. The system operates on radio
frequencies with a non-directional signals. The systems operating range is approximately 20-feet. The system operates
on one of 10,000,000 security codes that are programmed into the transmitter at the factory. It is designed to be used with
millivolt gas valves as a dry contact switch.

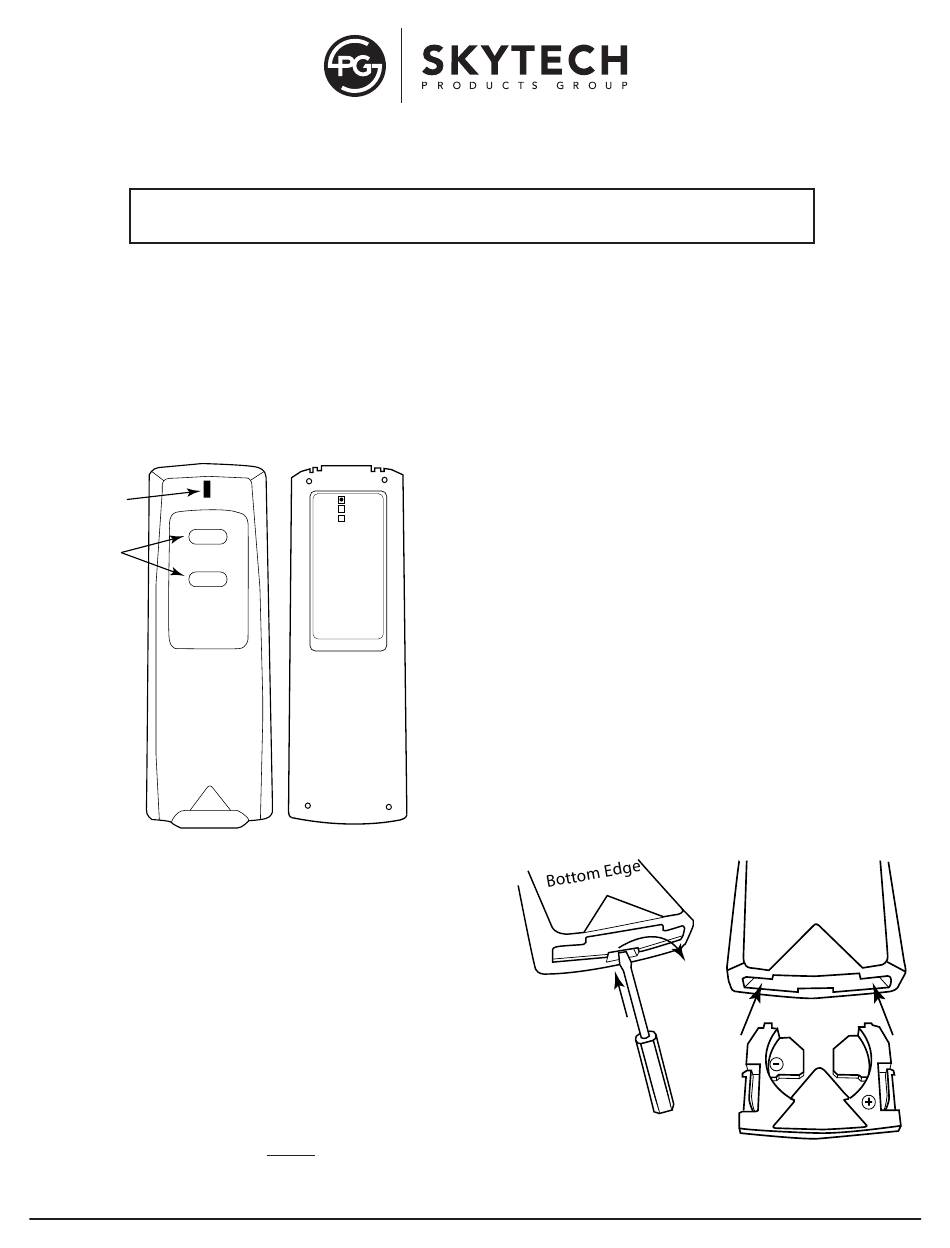

LED (Red) Light
ON
ON-OFF Buttons
OFF
FRONT
FRONT
The transmitter operates on (1) 3V Button Cell (included)
that powers the RF signal. Before using the transmitter, the
3V battery must be installed into the battery compartment.
Tools Needed: Small jewelers screwdriver
To remove the battery holder from the bottom of the
transmitter insert a small jewelers screwdriver into the
notch at the bottom of the transmitter, then gently pry out
the battery holder out. Once it is started, it will pull out
with your fingers. Insert the 3-volt button cell battery in the
battery holder with the plus (+) side up. See the drawings at
the right.
It is recommended that CR2032 lithium battery always
be used for longer battery life and maximum operational
performance.
Model: 4001-A TX
MODEL: 4001-A TX
INSTALLATION AND OPERATING INSTRUCTIONS
MODEL:
BACK
BACK
The transmitter is an ON and OFF. There is an LED light that
will illuminate when pressing either ON/OFF button. It you do
not see the red LED light illuminate check the position of the
transmitter's battery.
Bottom of
Transmitter
REV. 3-31-20 Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4001-A TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Skytech 4001-A TX

  • Page 1 MODEL: 4001-A TX INSTALLATION AND OPERATING INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE INTRODUCTION This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances.
  • Page 2: Installation Instructions

    (included) be used to make connections between the terminal wiring block on the millivolt gas valve or electronic module and the wire terminals on the remote receiver. For the best results use wire with no splices and measuring no longer than 20-feet. Model: 4001-A TX REV. 3-31-20 Page 2...
  • Page 3: Hearth Mount

    The remote receiver can be placed on the fireplace hearth or under the fireplace, behind the control access panel. Position where the ambient temperature inside the receiver case does not exceed 130º F. NOTE: Black slide button (accessory pack) is used on Hearth Mount Applications. Model: 4001-A TX REV. 3-31-20 Page 3...
  • Page 4: Wiring Instructions

    ON. The main gas flame should ignite. • Press the OFF button on the transmitter to turn the system to OFF. The flame should extinguish (the pilot flame will remain ON). Model: 4001-A TX REV. 3-31-20 Page 4...
  • Page 5: Battery Life

    Keep RECEIVER from temperatures exceeding 130º F. Battery life shortened when ambient temperatures are above 130º F. • If RECEIVER is installed in tightly enclosed metal surround, the operating distance will be shortened. Model: 4001-A TX REV. 3-31-20 Page 5...
  • Page 6: Specifications

    For Technical Service, call: CANADIAN INQUIRIES (877) 472-3923 (855) 498-8324 or (260) 459-1703 Skytech Products Group 9230 Conservation Way Fort Wayne, IN 46809 Sales: (888) 672-8929 Web site: www.skytechpg.com MANUFACTURED EXCLUSIVELY FOR SKYTECH II, INC Model: 4001-A TX REV. 3-31-20 Page 6...
