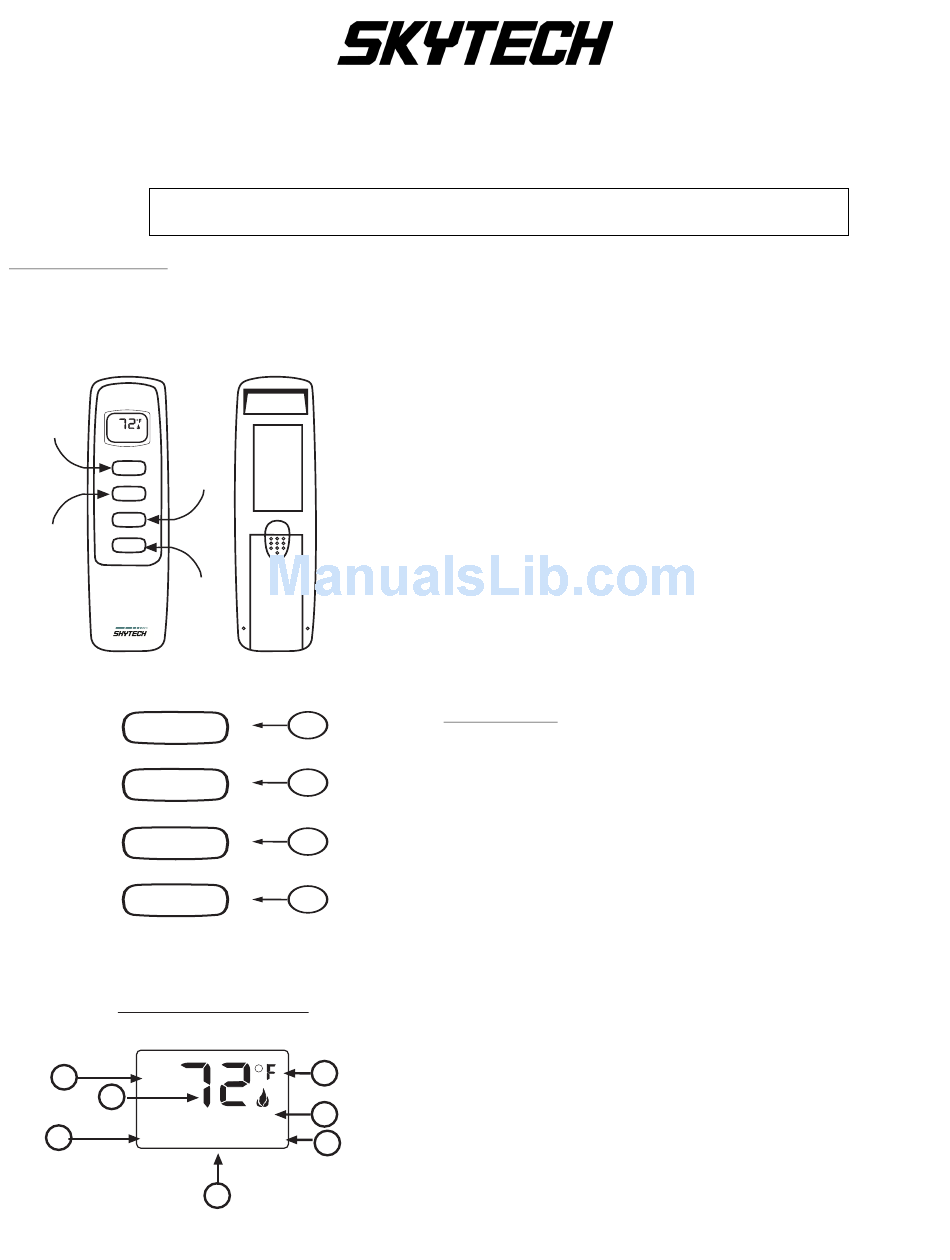

Skytech SP1001H/L-TH Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This transmitter operating range is approximately 20-feet. The transmitter operates on one of 1,048,576 security codes that are
programmed into the transmitter at the factory; this transmitter operates on radio frequencies with non-directional signals. The receiver
for this transmitter is built into the AF-4000MOD-1 module.

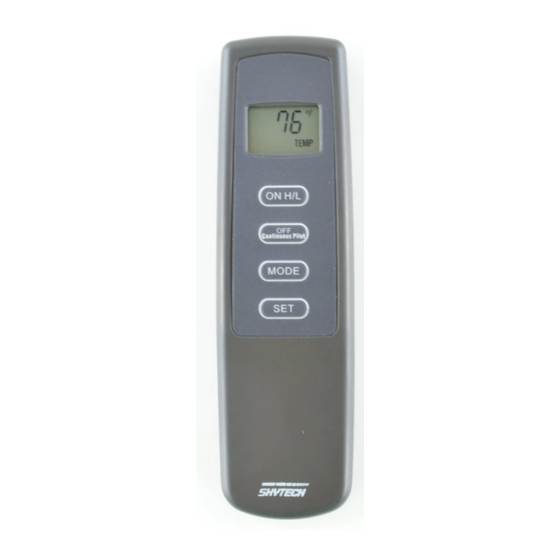

TRANSMITTER
ON H/L
PILOT
BUTTON
ROOM SET TEMP
ON H/L
BUTTON
OFF
Continuous
Pilot
MODE
OFF
Continuous
Pilot
SET
BUTTON
BUTTON
FRONT
ON H/L
OFF
Continuous
Pilot
MODE
SET
LCD - Liquid Crystal Di
7
PILOT
1
4 ROOM
_________________________________________________________________________________________________
Skytech SP1001H/L-TH
MODEL: SP1001H/L-TH

OPERATING INSTRUCTIONS

WALL CLIP
SLOT
MODE
SET
BATTERY
COMPARTMENT
BACK
1
2
3
4
2
3
SET
TEMP
5
6
ATTEMPT TO OPERATE
The transmitter operates on (2) 1.5V AAA batteries. It is recommended that
ALKALINE batteries always be used for longer battery life and maximum
operational performance.
Before using the transmitter, install the (2) AAA transmitter batteries into the
battery compartment. (Use caution that batteries are installed in the proper
direction)
KEY SETTINGS
1. ON H/L
2. OFF
CONTINUOUS PILOT
3. MODE
4. SET
1. DISPLAY
0 0
2. F OR C
3. FLAME
4. ROOM
5. TEMP
6. SET
7. PILOT
- Turns unit to ON and operates the
flame control HI or LO.
- Shuts the unit OFF and activates the
continuous pilot on feature
- Changes unit from manual mode to
thermo mode.
- Sets temperature in thermo mode.
Indicates CURRENT room temperature
Indicates degrees Fahrenheit or Celsius
Indicates burner/valve in operation
Indicates remote is in THERMO operation
Appears during manual operation
Appears while setting the desired
temperature in the thermo operation
Appears in the Continuous Pilot mode
Rev. 12/26/13 Page 1 of 5
