FOR OPERATING SERVO MOTOR VALVE, MANUALLY AND WITH A THERMOSTAT FUNCTION
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating
appliances. The system is operated manually from the transmitter. The system operates on radio frequencies (RF) within a 20' range
using non-directional signals. The system operates on one of 1,048,576 security codes that are programmed into the transmitter at the
factory; the remote receiver's code must be matched to that of the transmitter prior to initial use.
Review THERMO SAFETY SECTION under RECEIVER section. This high temperature safety feature shuts
down the appliance when a potentially unsafe condition exists.

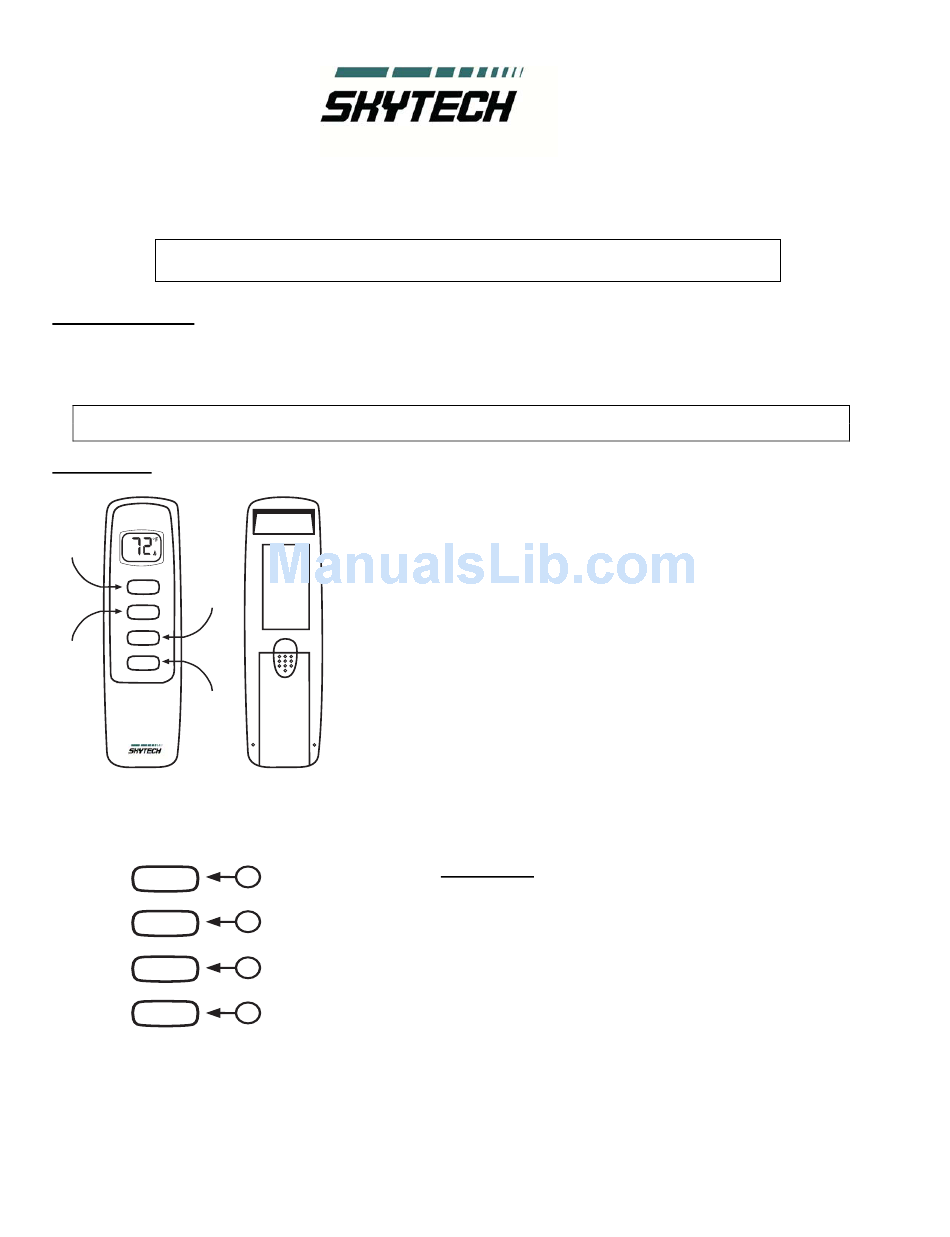

TRANSMITTER
ON/HI
BUTTON
ON/HI
LO/OFF
MODE
LO/OFF
BUTTON
SET
FRONT
ON/HI
LO/OFF
MODE
SET
INSTALLATION AND OPERATING INSTRUCTIONS
MULTI-FUNCTION WIRELESS REMOTE CONTROL SYSTEM
ATTEMPT TO INSTALL OR OPERATE
WALL CLIP
SLOT
MODE
BUTTON
SET
BUTTON
BATTERY
COMPARTMENT
BACK
1
2
3
4
This remote control SYSTEM offers the user a battery-operated remote control to
power up to a 6 VDC servo motor or solenoid such as those used with gas valves
used in some heater rated gas logs, gas fireplaces and other gas heating
appliances.
The servo motor or solenoid circuit uses the battery power from the receiver to
operate a servo motor or solenoid. The circuit has reversing polarity software
which reverses the positive (+) and negative (-) output of the receiver's battery
power to drive the servo motor forward/backward. (HI/LO FLAME) The SYSTEM
is controlled by the remote transmitter.
The transmitter operates on a (2) 1.5V AAA batteries.
It is recommended that ALKALINE batteries always be used for longer battery life
and maximum operational performance.
Before using the transmitter, install the (2) AAA transmitter batteries into the
battery compartment. (Use caution that batteries are installed in the proper
direction)
KEY SETINGS
• ON/HI -Operates unit to on position, Manually operated
servo HI.
LO/OFF - Operates unit to off position, manually operated
•
servo LO.
• MODE - Changes unit from manual mode to thermo mode.
• SET - Sets temperature in thermo mode.
1.877.374.4404
SR 1001 TH
(SKY MRCK TH-1)
REV. 1/26/06
Page 1 of 9
