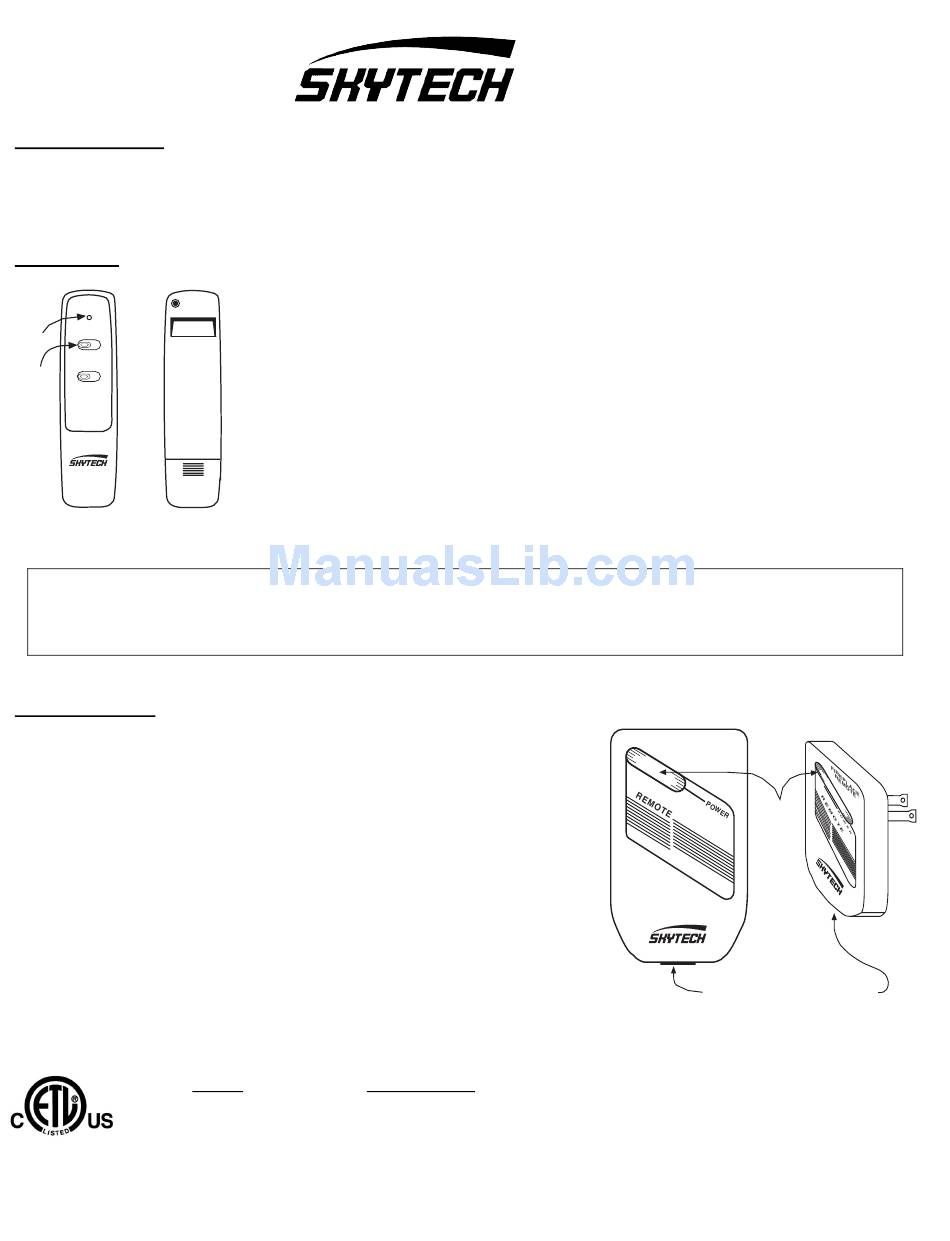

Skytech 1315 Installation And Operating Instructions

INTRODUCTION

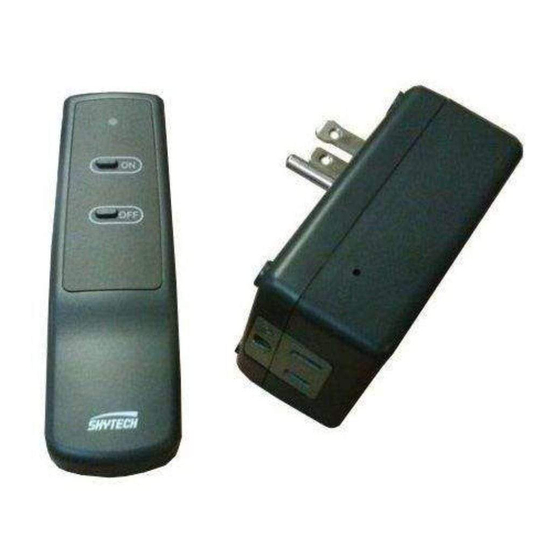

This remote control SYSTEM offers the user a 110-120 VAC powered multi-purpose remote control to be used with AC-powered products such
as heaters, fans, electric fireplaces, lighting and pump motors used for decorative ponds/waterfalls from up to 75 feet away. The SYSTEM
will also operate 110 VAC appliances with load ratings up to 1800 watts. (See load ratings chart at the bottom of this page).

TRANSMITTER

WALL CLIP
SLOT
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
FRONT BACK
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely before
attempting installation. Any modification of this remote control or any of its components will void the warranty and may pose a fire
hazard.

REMOTE RECEIVER

This receiver plugs into a polarized 110-120 VAC grounded receptacle,
The AC powered product which is to be controlled by the remote control, is to be
plugged directly into the polarized 110-120 VAC grounded receptacle on the receiver.
Once the product is connected to the receiver, the remote is ready to operate. To turn
on the AC powered product, depress the ON button on the transmitter. To turn off the
AC powered product, depress the OFF button on the transmitter.
If the remote receiver will not easily plug into the 110-120 VAC outlet, a short extension
(18 SPT –2 ) cord consisting of 105c wire may be installed between the outlet and
remote receiver. Both ends of the extension cord must have polarized grounded
connections. A short extension cord may be purchased from your appliance dealer,
or electronic parts distributor.
FOR INDOOR USE ONLY
LISTED
13F7
Appliance
Control
INSTALLATION AND OPERATING INSTRUCTIONS
The transmitter operates on a 12V battery (included) made specifically for remote controls and
electronic lighters. Before using the transmitter, Before using the transmitter the 12V battery
must be installed into the battery compartment.
It is recommended that ALKALINE batteries always be used for longer battery life and maximum
operational performance.
The transmitter has ON and OFF functions that are activated by pressing either button on the
face of the transmitter. When a button on the transmitter is pressed, a signal light on the
transmitter illuminates briefly to verify that a signal has been sent. Upon initial use, there may be
a delay of five seconds before the remote receiver will respond to the transmitter. This is part of
the system's design. If the signal light does not illuminate, check the position of the transmitter's
battery.
LOAD RATINGS
Resistive: 15A 1800W
Tungsten: 5.8A 696W
Gen. Purpose 15A 1800W
Motor: 1/2 HP
1315
WARNING
FIREPLACE
REMOTE
SIGNAL
LIGHT
REMOTE
RECEIVER
110-120VAC Output Receptacle
REV. 1/25/04 Page 1 of 2
