Skytech 4001TH Installation And Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT

INTRODUCTION

This remote control system was developed to provide safe, reliable, and user-friendly remote control system for gas
heating appliances. The system can be operated manually from the transmitter. The system operates on one of 255
settable security codes on the transmitter and receiver.

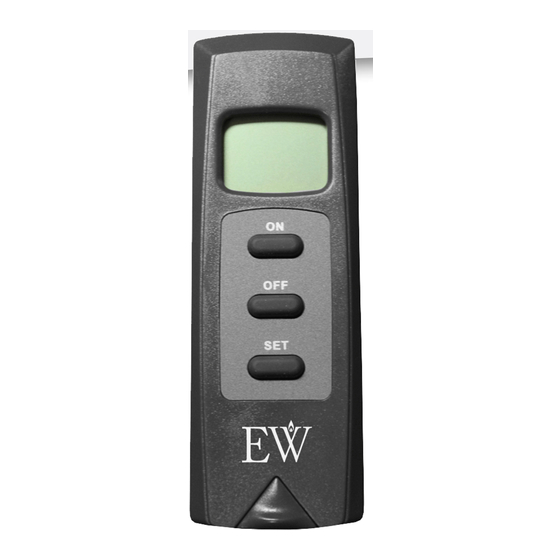

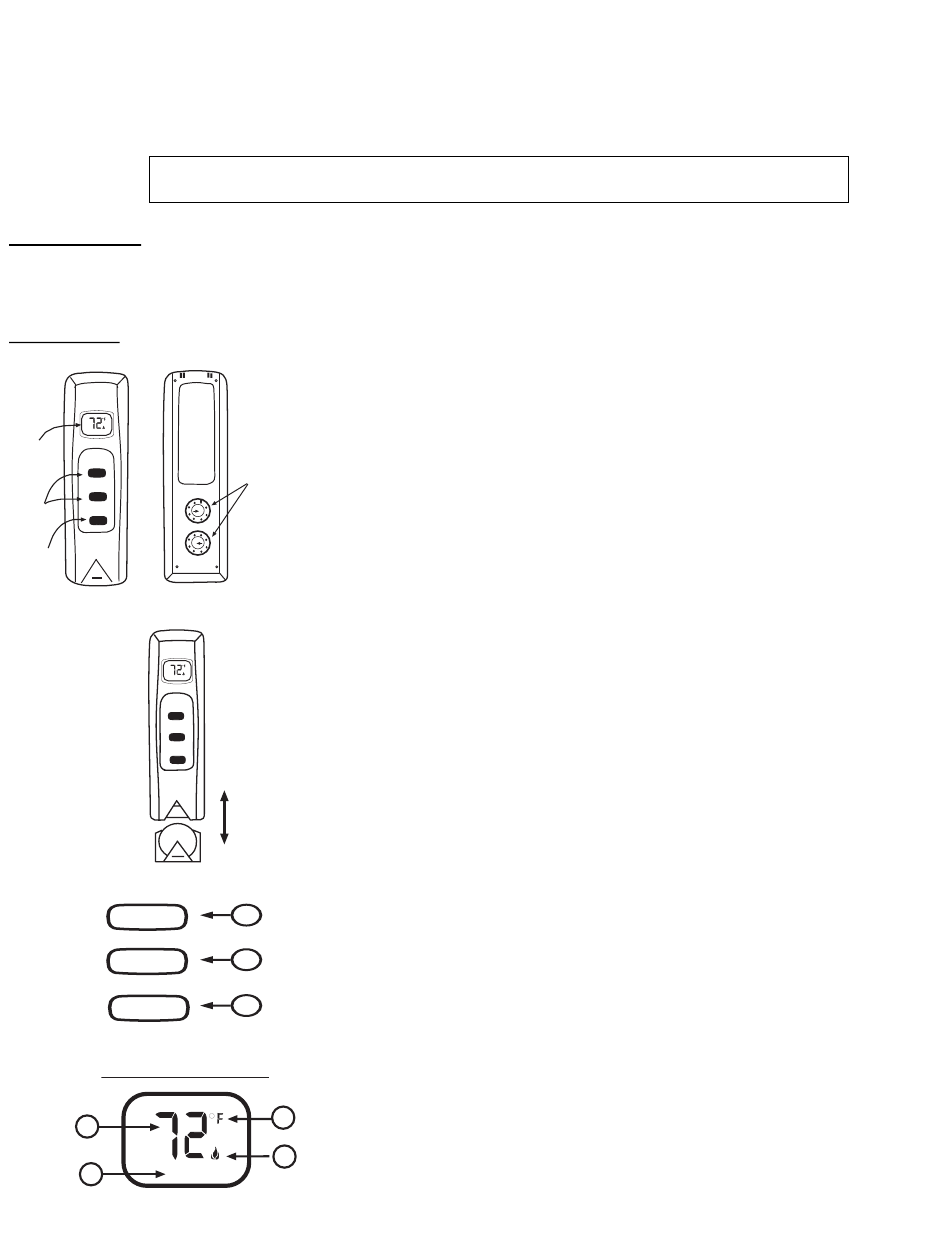

TRANSMITTER

LABEL
ON
THERMO
LCD
SCREEN
ON
OFF
ON/OFF
SET
M
BUTTONS
13
THERMO SET
BUTTON
BACK
FRONT
ON
THERMO
ON
OFF
SET
Battery
3 Volt
Compartment +
ON
OFF
SET
LCD - Liquid Crystal Display
1
4
THERMO
_________________________________________________________________________________________________________________________
Model: 4001TH
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
Code Switches
A
O C
E
K
G
I
1
15 3
5
11
7
9
1
2
3
2
3
Model: 4001TH
The transmitter has ON and OFF and TERMOSTAT functions. This is part of the
system's design. If the LCD screen is not working check the position of the
transmitter's battery.
The transmitter has (2) code switches located on the back that will need to be set
when installation is complete. Note: Code setting section
The transmitter operates on (1) 3V Button Cell (Included) that powers the RF
signal. Before using the transmitter the 3V battery must be installed into the
battery compartments.
Remove the battery holder from the bottom of the transmitter insert the 3 volt
button cell battery in the battery holder with the plus (+) side up. Note the sketch
at the left.
It is recommended that CR2032 lithium battery always be used for longer battery
life and maximum operational performance.
1
ON - Operates unit to on position, Manually ON.
2
OFF - Operates unit to off position, Manually OFF.
3
SET - Sets temperature in thermo mode.
1
ROOM Temperature
2
ºF or ºC Icon
3
"ON" Flame Icon
4
THERMO Mode
REV 8/29/11 Page 1 of 6
