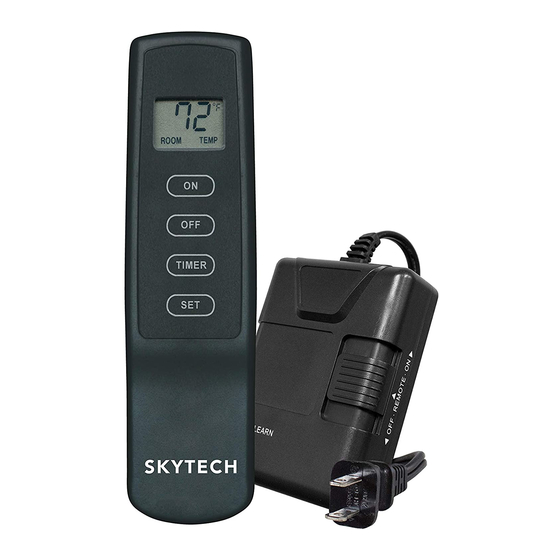

Skytech 1410 T/LCD-A Installation And Operating Instructions

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION
INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE

INTRODUCTION

This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating products.

TRANSMITTER

ON
BUTTON
ROOM TEMP
ON
TIMER
BUTTON
OFF
TIMER
OFF
BUTTON
SET
SET
BUTTON
BATTERY
COMPARTMENT
FRONT
The factory setting for temperature is ºF. To change the displayed
temperature scale, press the ON and OFF keys at the same time.
Follow this same procedure to return to ºF.
TEMP
ROOM
ON MODE
ROOM TEMP
OFF MODE
This remote control has a temperature updating feature built into its software. The transmitter reads
the room temperature every 2 minutes, then updates the room temperature on the LCD screen.
Skytech 1410 T/LCD-A
Model: 1410 T/LCD-A
Installation AND OPERATING INSTRUCTIONS
WALL CLIP
SLOT
The transmitter operates on (2) 1.5V AAA batteries. It is recommended that ALKALINE
batteries always be used for this product. Be sure the batteries are installed with the (+)
and (-) ends facing the correct direction, and are fully charged.
KEY SETTINGS
1. ON
- - -
2. OFF - -
3. TIMER
4. SET - -
LCD - LIQUID CRYSTAL DISPLAY
BACK
1. Display - - - - - - - - - -
2. Fahrenheit or Celsius
3. Flame - - - - - - - - - - -
4. Room - - - - - - - - - - -
5. Temperature - - - - - -
6. Set - - - - - - - - - - - - -
SETTING ºFAHRENHEIT / ºCELSIUS SCALE
MANUAL FUNCTION
ON OPERATION:
Press the ON button to turn the
appliance ON. (The flame icon
will appear on the LCD screen.)
:
OFF OPERATION
Press the OFF button to turn
the appliance OFF. (The flame
icon will disappear from the LCD
screen.)
TEMPERATURE UPDATING FEATURE
Turns appliance on.
Turns appliance off.
Changes unit from manual mode to timer mode.
Adjusts timer setting.
Indicates current room temperature.
Indicates degrees Fahrenheit or Celsius.
Indicates appliance is ON.
Indicates remote is in THERMO mode.
Appears during manual operation.
Appears adjusting
when
TIMER FUNCTION
• Press the ON button to start the
appliance.
• Press the TIMER button. The
LCD screen will show the word
set.
Press the SET button until
•
the desired time is reached
(15min - 180min in 15 minute
increments). The max setting
time is 3 hours.
• NOTE: The LCD display will
flash the set time for 6 seconds,
then start the countdown.
• Press the OFF button to turn off
the timer, and the appliance.
ON
OFF
TIMER
SET
desired timer setting.
the
ROOM TEMP
SET
SET MODE
COUNT DOWN MODE
REV. 11-8-16 Page 1
